TM
Model 3500M0258-01
Rev. 10/14 3-3

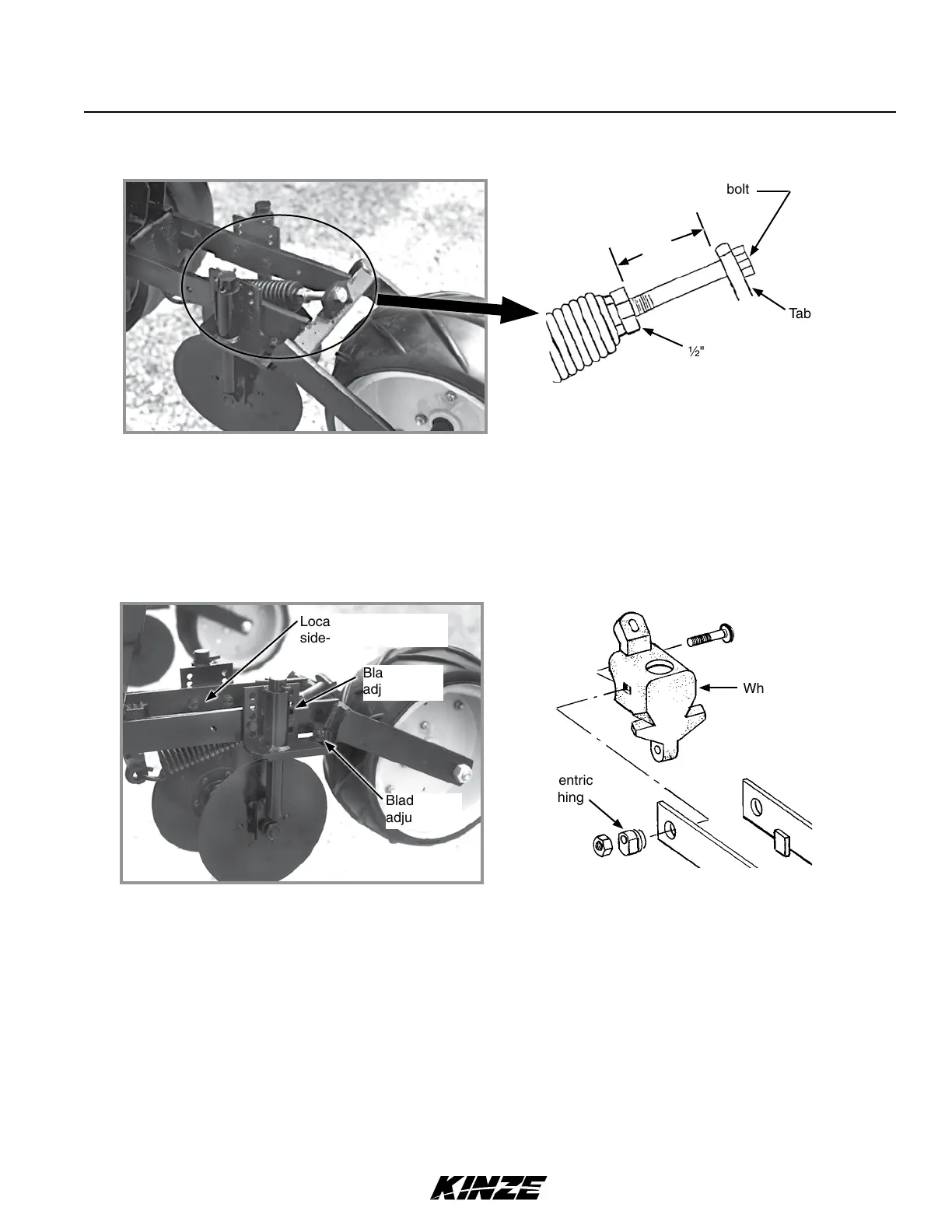

Row Unit Operation
Eccentric bushings in the wheel arm stop allow for lateral adjustment of covering discs/single press wheel assembly.
Use a ¾" wrench to loosen hardware attaching closing wheel arm to wheel arm stop. Use another ¾" wrench to turn
eccentric bushings until covering discs/single press wheel assembly is aligned with seed trench. Tighten hardware.
Two sets of holes in mounting arm locate covering discs for staggered or side-by-side operation.
Five sets of holes in each disc bracket allow ½" (1.2 cm) incremental blade depth adjustment.
Slotted holes in disc mount and bracket allow for 0° - 15° blade angle adjustment.
Adjust covering discs on all row units to similar settings.
Wheel arm stop
Eccentric
bushing
Locate for staggered or
side-by-side operation
Blade depth
adjustment
Blade angle
adjustment
Covering disc adjustments
Check operation of covering discs/single press wheels after adjusting planting depth. Initial press wheel down force
spring setting is 2½" (6.3 cm) between mounting arm tab and locking nut.
1.
Loosen ½" (1.27 cm) locking nut and turn adjusting bolt in to increase down force or out to decrease down force.
2. Tighten locking nut against spring plug. Adjust all row units to a similar setting.
COVERING DISCS/SINGLE PRESS WHEEL ADJUSTMENT
½" Locking nut
Adjusting bolt
Tab
Press wheel down force adjustment
2½"
(6 cm)
