Machine Operation
HYDRAULIC OPERATION
NOTE: PTO pump drive and oil cooler package is available from Kinze through your Kinze Dealer to increase
your tractor’s operating capabilities.

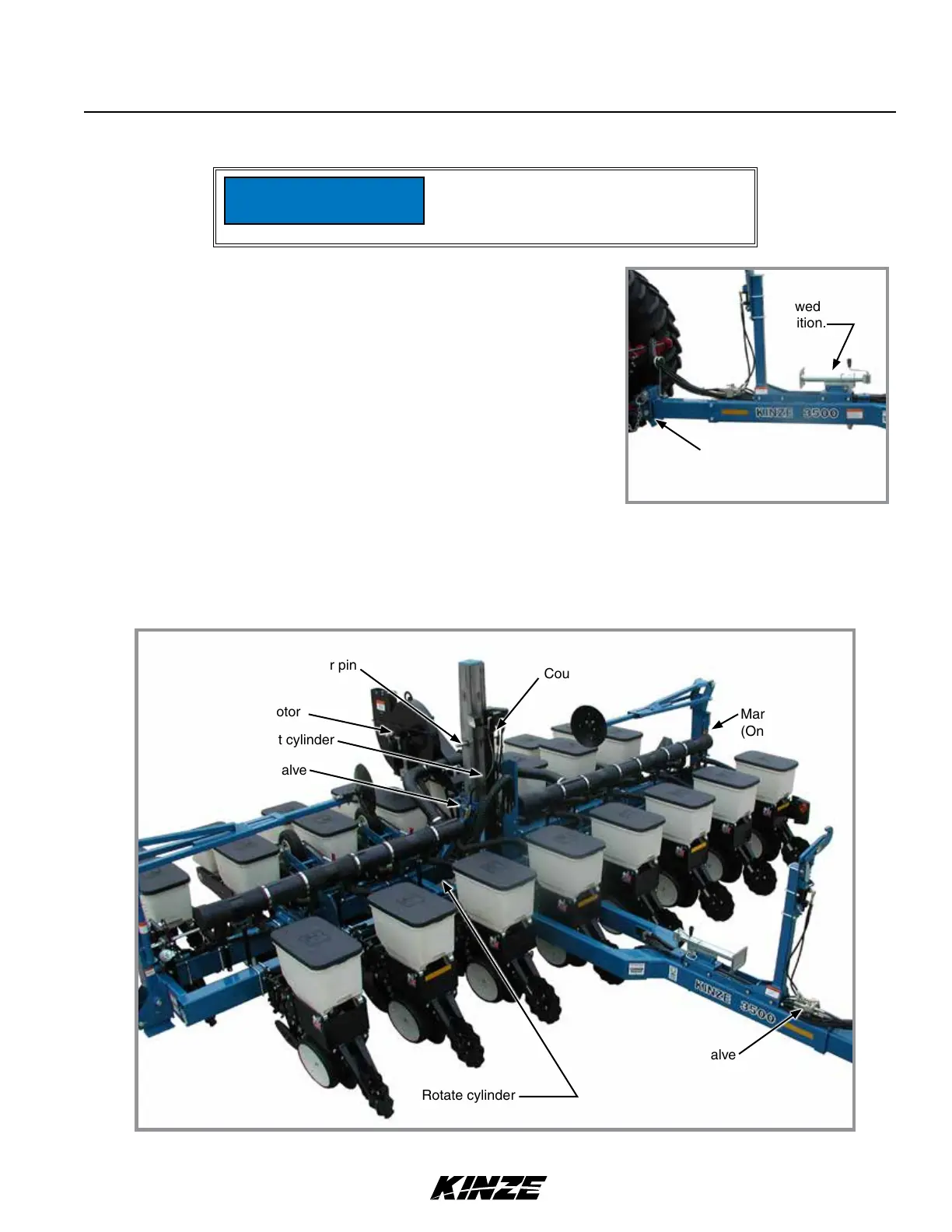

Selector valve
Vacuum fan motor
Lift cylinder
Counter balance valve
Stroke limiter valve
Safety/stroke limiter pin
Rotate cylinder
Marker cylinder
(One each side)
3500 hydraulic system (schematic located in Lubrication and Maintenance section)
JACK STAND
Jack stand locations
Parking/lift
position.
Stowed
position.
An easily removable jack stand is provided to aid in connecting and
disconnecting planter from tractor.
Slide notched end of jack stand over mount round bar at parking/lift or
stowed position.
Install pin through mount and jack stand. Secure with lynch pin.
Install jack stand in stowed position
during transport and field operation to
prevent equipment damage.
