M0258-01Model 3500
Machine Operation
1. Lower machine to field position and block transport wheels.
2. Support outer hitch section with a minimum 5000 lb (2268 kg) rated jack stand to take weight off inner section.
NOTE: Remove and reinstall hitch mounted brackets as needed to access hitch adjustment holes.
3. Remove 1¼" x 9" hex head cap screw, lock washer, and hex nut from hitch. Loosen two " hex head cap screws
on front L.H. side of outer hitch section.
4. Reposition inner hitch section so hole lines up with hole in outer hitch section at desired length. Install 1¼" x 9"
hex head cap screw, lock washer, and hex nut. Torque to 840 ft-lb (1138 N-m).
5. Torque two " hex head cap screws to 110 ft-lb (149 N-m).

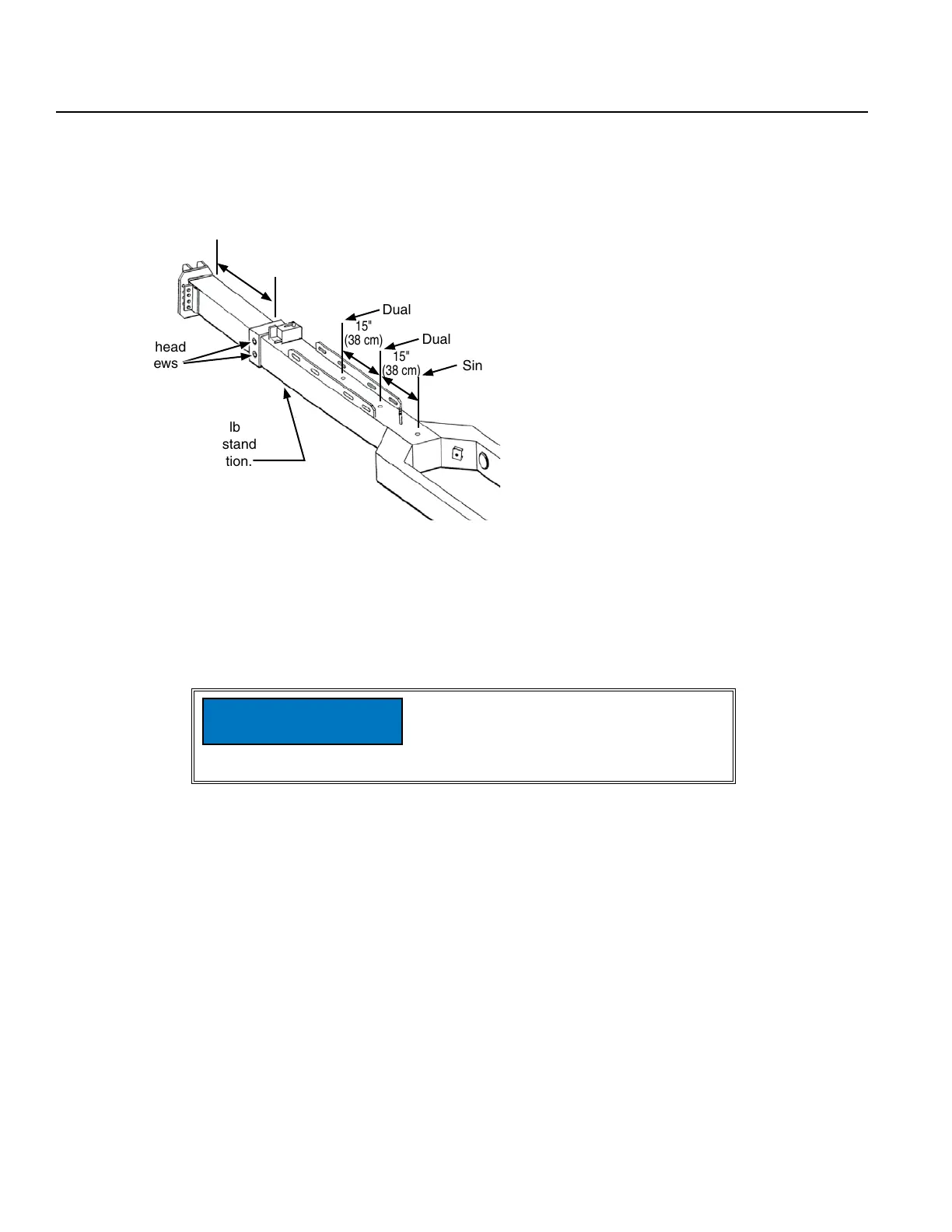

HITCH LENGTH ADJUSTMENT
The hitch consists of a telescoping outer and inner section. Hitch length can be adjusted to three locations to
accommodate tractor tire options and attachments installed on planter.
3¾" (9.5 cm)
18¾" (48 cm)
33¾"(86 cm)
Duals with Interplant package on front toolbar.
Duals with fertilizer option or Interplant package on front toolbar.
Singles with no options on front toolbar.
15"
(38 cm)
15"
(38 cm)
Place minimum 5000 lb
(2268 kg) rated jack stand
under outer hitch section.
" hex head
cap screws
Line up holes and install
1¼” x 9” hex head cap
screw through inner and
outer hitch sections.
DO NOT set hitch length so turning
is limited when machine is in road
transport position or equipment may be
damaged.
NOTICE
