TM
Model 3500M0258-01
9/14 2-3
Machine Operation

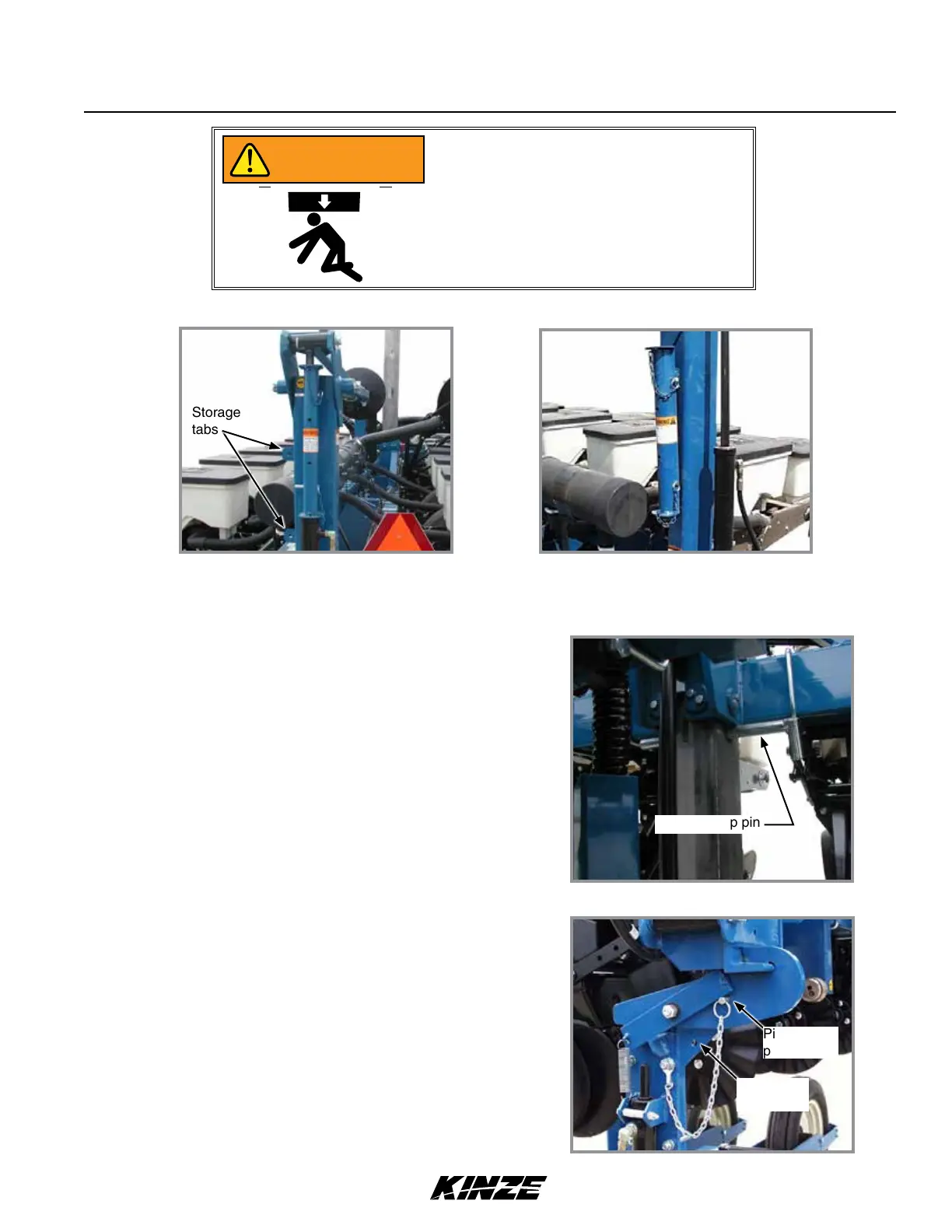

Install row marker safety lockup devices over marker cylinder rods whenever markers are not being used. Keep in
storage position on front side of row marker arms when removed. Secure in either location with attached clevis pins.
Row marker lockup in storage location
Safety lockup and stroke limiter pin is inserted through the center
post and kept in place by a hairpin clip.
Pin must be installed under planter frame during transport or when
working on equipment when raised.
Pin must be installed above planter frame during normal operation
to contact stroke limiter valve and prevent lift cylinder from
overextending (Refer to hydraulic operation in this section).
TRANSPORT LATCH LOCKING PIN
Spring loaded transport latch on planter hitch locks in place under
toolbar when planter is rotated to transport position.
Always install transport latch locking pin to lock transport latch
before transporting planter.
ROW MARKER SAFETY LOCKUP
SAFETY LOCKUP AND STROKE LIMITER PIN
Row marker lockup installed
Storage
tabs
Transport latch locking pin locations
Safety lockup pin in safety position
Pin locking
position
Pin storage
position
Safety lockup pin
Uncontrolled movement of equipment
can cause loss of control and could
result in death, serious injury, or damage
to property and equipment. Install
all safety pins before transporting
equipment.
WARNING
