Machine Operation

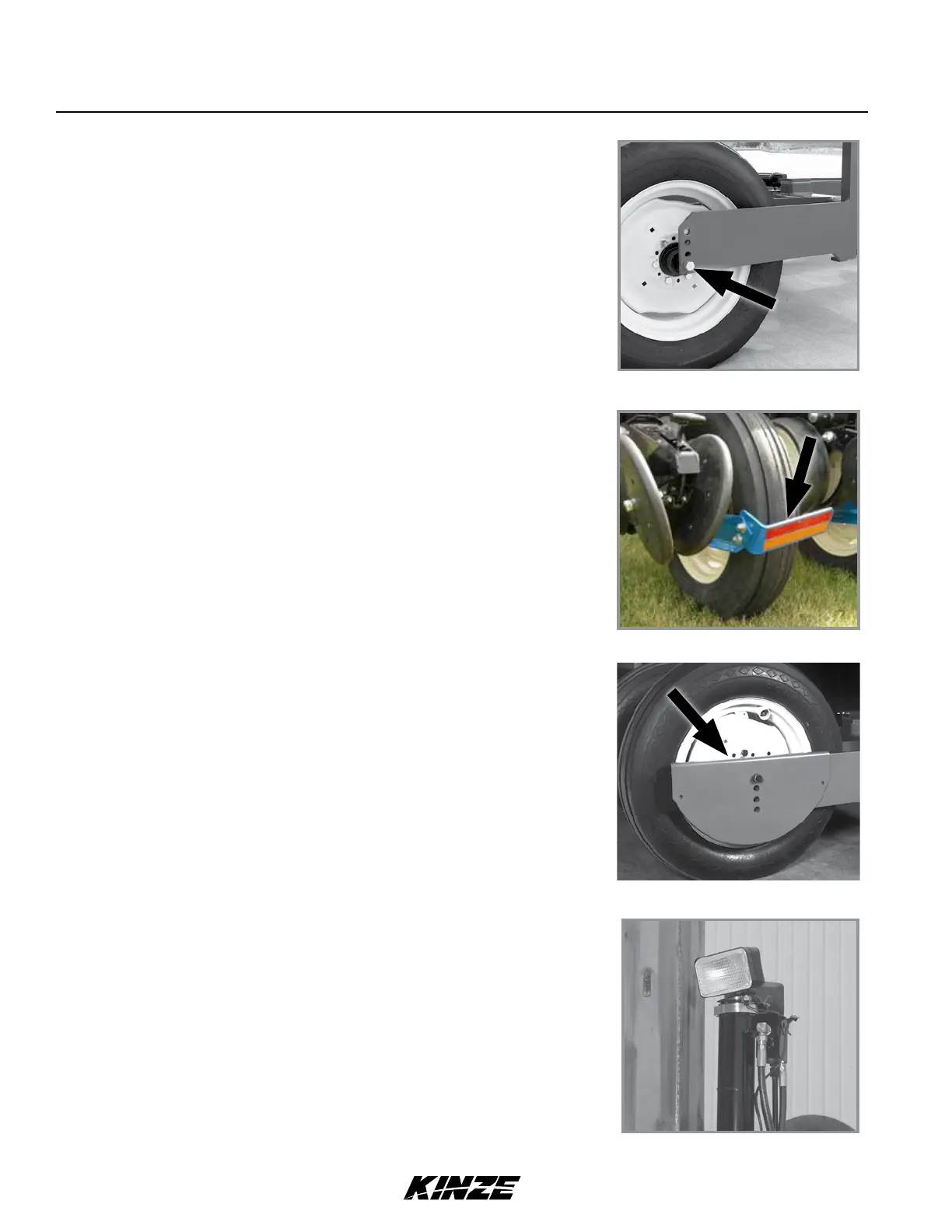

RIDGE PLANTING
Transport axle in lowest position
A tire scraper prevents buildup of dirt and mud between wheel arm assembly
and tire.
Adjust scraper so it does not contact tire.
TIRE SCRAPER
Tire scraper
Transport wheel rock guards are used on both sides of each transport wheel
when planter is used in rocky conditions. Rock guards help prevent rocks from
being picked up by wheels and damaging adjoining row units.
ROCK GUARDS
Rock guard
AUXILIARY WORK LIGHTS PACKAGE
Optional Auxiliary Work Lights Package includes two 50 watt, 3" x 5" halogen
flood lamps, brackets, and hardware to mount lights at top of lift cylinder and
a wiring harness to plug into existing planter light harness.
Auxiliary work lights
Planter toolbar height can be raised 3" (8 cm) for ridge planting.
Relocate 20" transport axles to lower hole in wheel arm.
