Kinze 3500 - Hydraulic Diagram - Optional PTO Pump Drive and Oil Cooler System

TM
Model 3500M0258-01
9/14 6-37
Lubrication and Maintenance

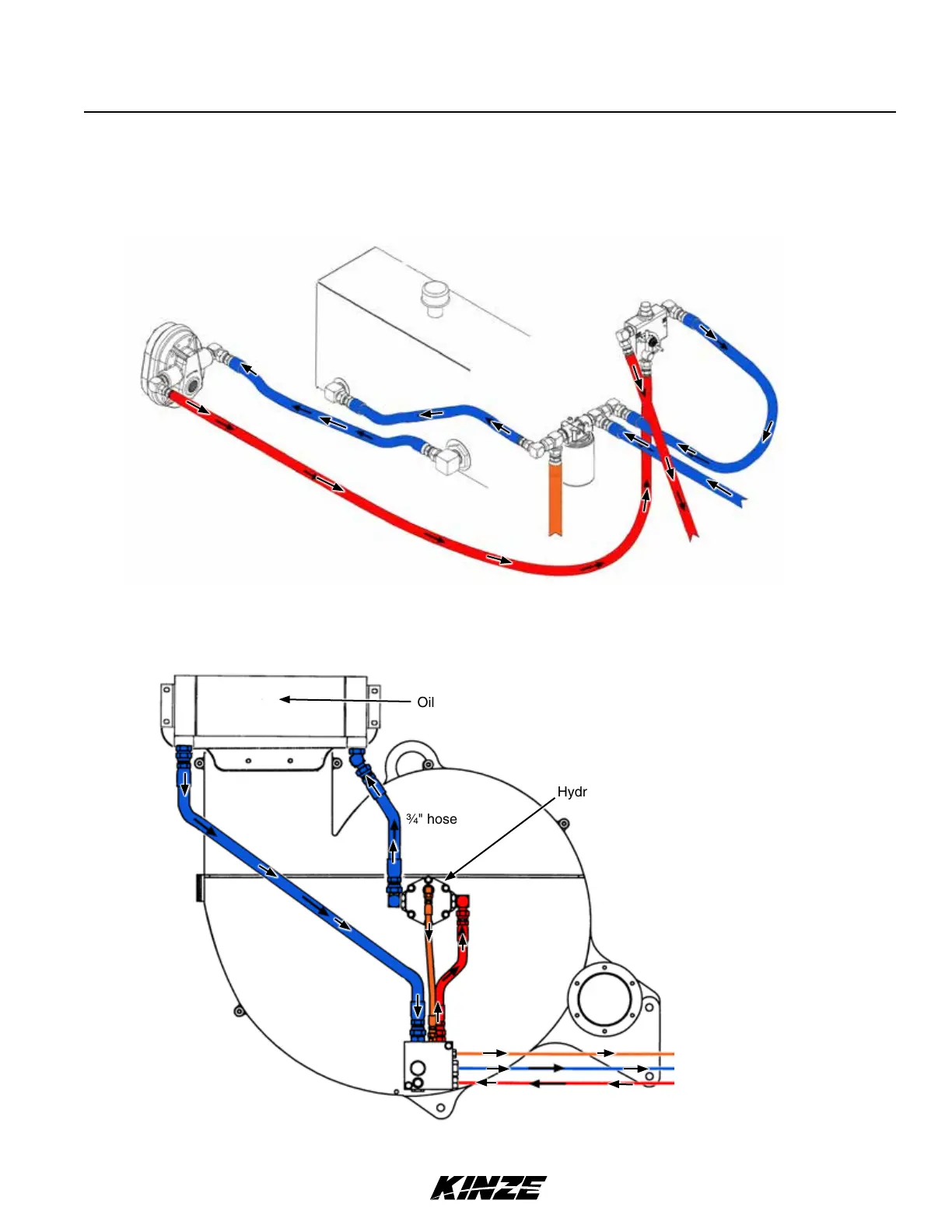

HYDRAULIC DIAGRAM - OPTIONAL PTO PUMP DRIVE AND OIL COOLER SYSTEM
¾" hose
Oil cooler
Case drain (" Hose)
Return (¾" Hose)
Pressure (½" Hose)
¾" hose
Hydraulic motor
Case drain
Flow control valve
Oil reservoir
EX
CF
IN
Vacuum fan motor
pressure
Vaccum fan
motor return
PTO pump
(1"-21 spline shown)
Flow control pressure
PTO pump feed
Flow control
bypass
Reservoir return
