Machine Operation
All Hydraulic Requirements: Minimum
Pressure 2350 PSI (16202.6 kPa); Maximum
Pressure 3000 PSI (20684.2 kPa). Check
tractor hydraulics to ensure that maximum
pressure cannot be exceeded.
NOTICE

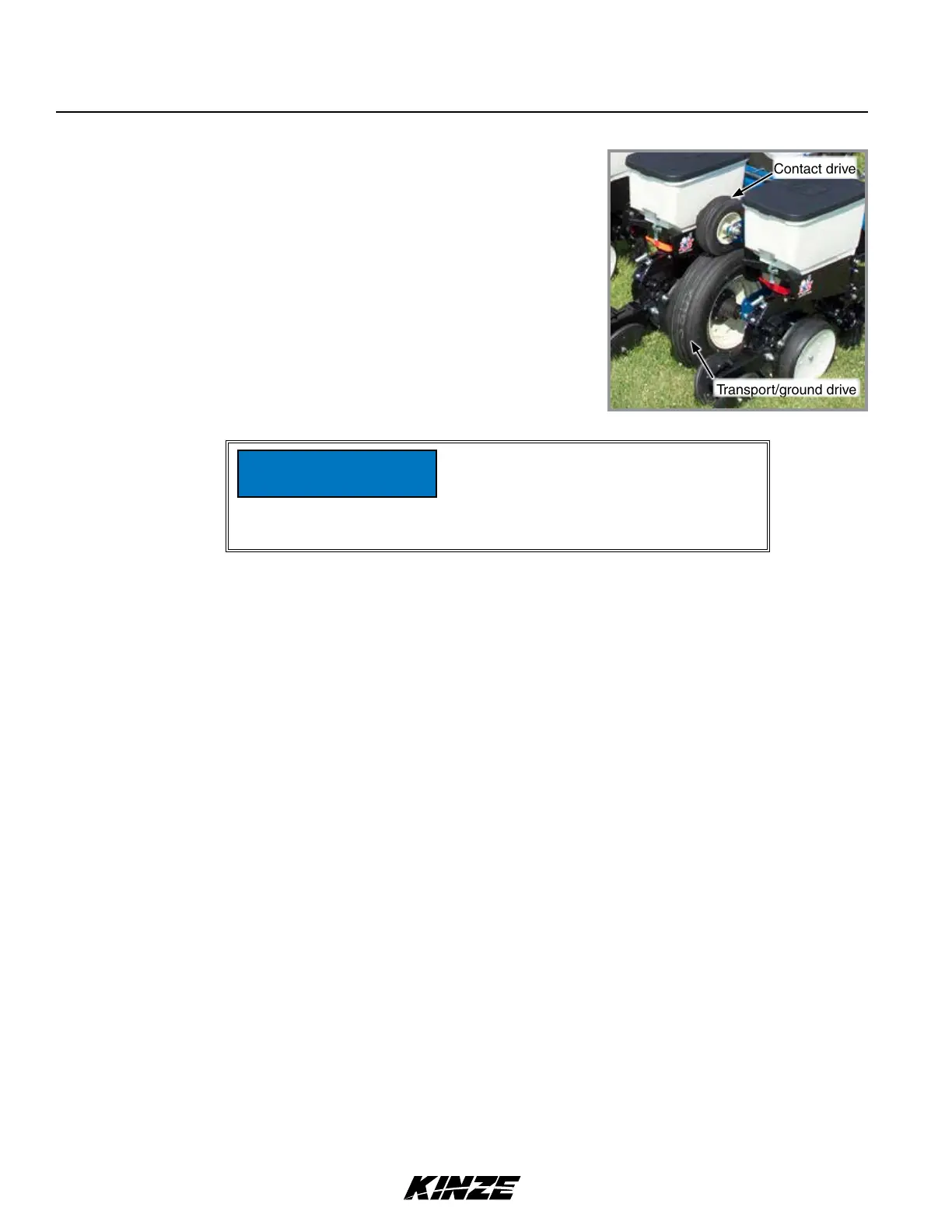

1. Torque transport wheel "- 18 lug bolts to 90 ft-lb (122 N-m).
2. Inflate transport/ground drive tires to 40 psi (275.7 kPa).
3. Inflate contact drive tires to 50 psi (344.7 kPa).
TRACTOR REQUIREMENTS
Consult your dealer for information on horsepower requirements and tractor compatibility. Requirements vary with
planter options, tillage, and terrain.
A 12 volt DC electrical system is required to operate planter safety/warning lights, digital vacuum gauge, and optional
pneumatic down pressure system or work lights.
Two dual remote hydraulic outlets (SCV) are required on all models. An additional SCV and zero pressure case drain,
or PTO pump is required for vacuum equipped planters.
Hydraulic maximum flow rate of 13 GPM @ 2000 PSI (49 LPM @13790 kPa) is required to operate vacuum fan motor.
