TM
Model 3500M0258-01
Ref. 9/17 2-23
Machine Operation

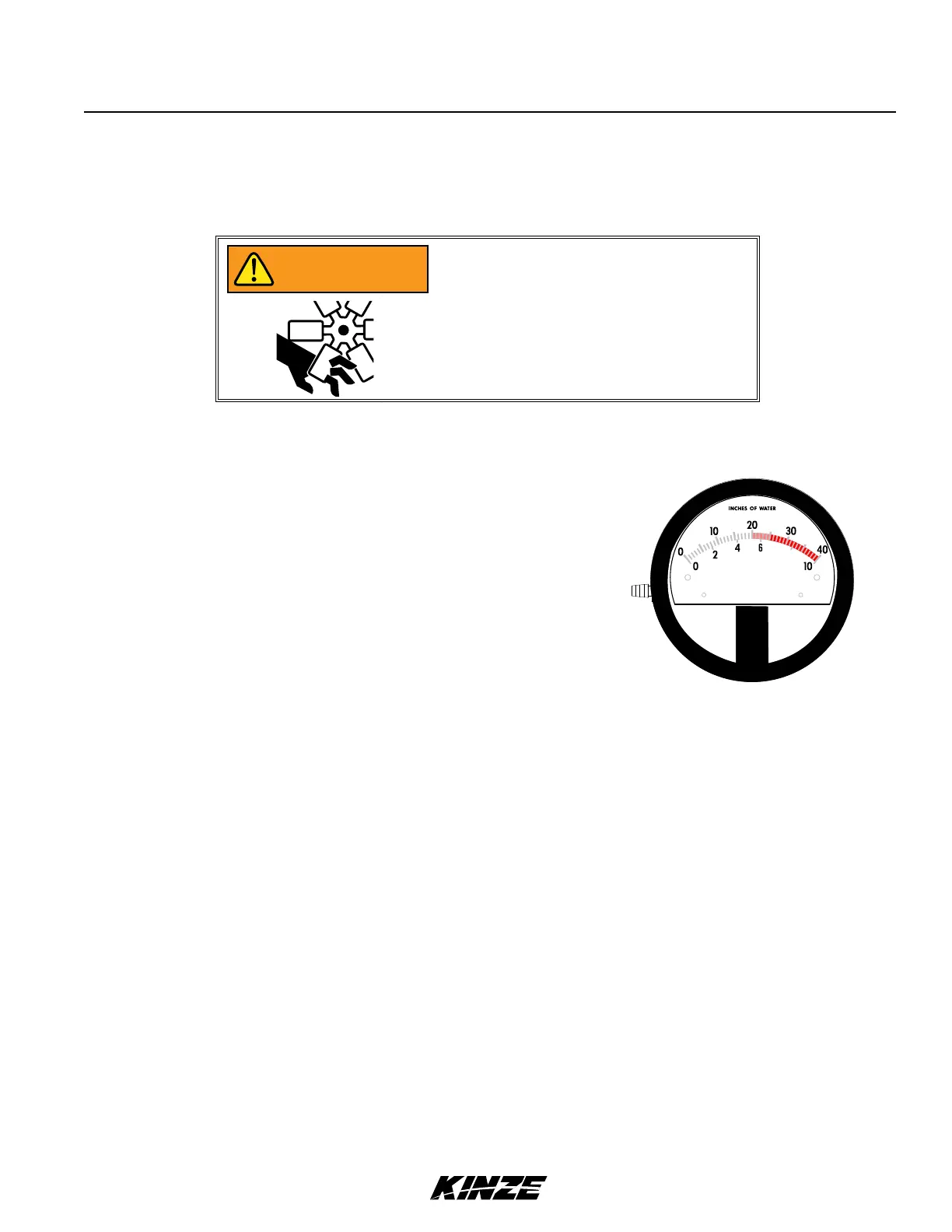

Analog vacuum or pressure gauge connects directly to vacuum
meter (vacuum) or bulk fill (pressure) manifold and is teed into
digital sending units.
Only adjustment is to “zero” needle with no vacuum or
pressure present. If there is a significant difference between
gauge and a reading taken at meters, a different manifold
location should be found to connect hose to gauge and digital
sending unit.
8
KILOPASCALS
MAX PRESSURE 15 PSIG (103 KPA)
ANALOG VACUUM OR PRESSURE GAUGE
Analog Gauge
NOTE: Analog gauges are identical EXCEPT for plug and
hose barb locations in side of gauge housing. DO NOT
connect vacuum meter or bulk fill hose to wrong gauge.
Check plug and hose barb installation if readout is erratic
or appears inaccurate.
Kinze vacuum meter seed metering system includes seed meters, seed discs, and an air system consisting of a
hydraulic driven vacuum fan which draws air through manifolds, hoses, and seed meters on each row unit.
VACUUM METER SYSTEM
Moving fan blades can cause amputation
or severe injury. Never operate vacuum
fan with cover removed.
WARNING
