M0258-01Model 3500
2-8
Rev. 9/17
TM
Machine Operation
TRACTOR PREPARATION AND HOOKUP
NOTE: A 2-Point Hitch option is available for use with
Category 3N or 3 three-point hitch designs to convert planter
from drawn to semi-mounted. Safety chain is not used with
2-point hitch.
1. Adjust tractor drawbar 13 to 17 inches (33 - 43 cm) above
ground. Adjust drawbar so hitch pin hole is directly below
center line of PTO shaft. Make sure drawbar is in a stationary
position.
2. Back tractor to planter and connect with a minimum ¾"
diameter hitch pin. Secure with a locking or cotter pin.

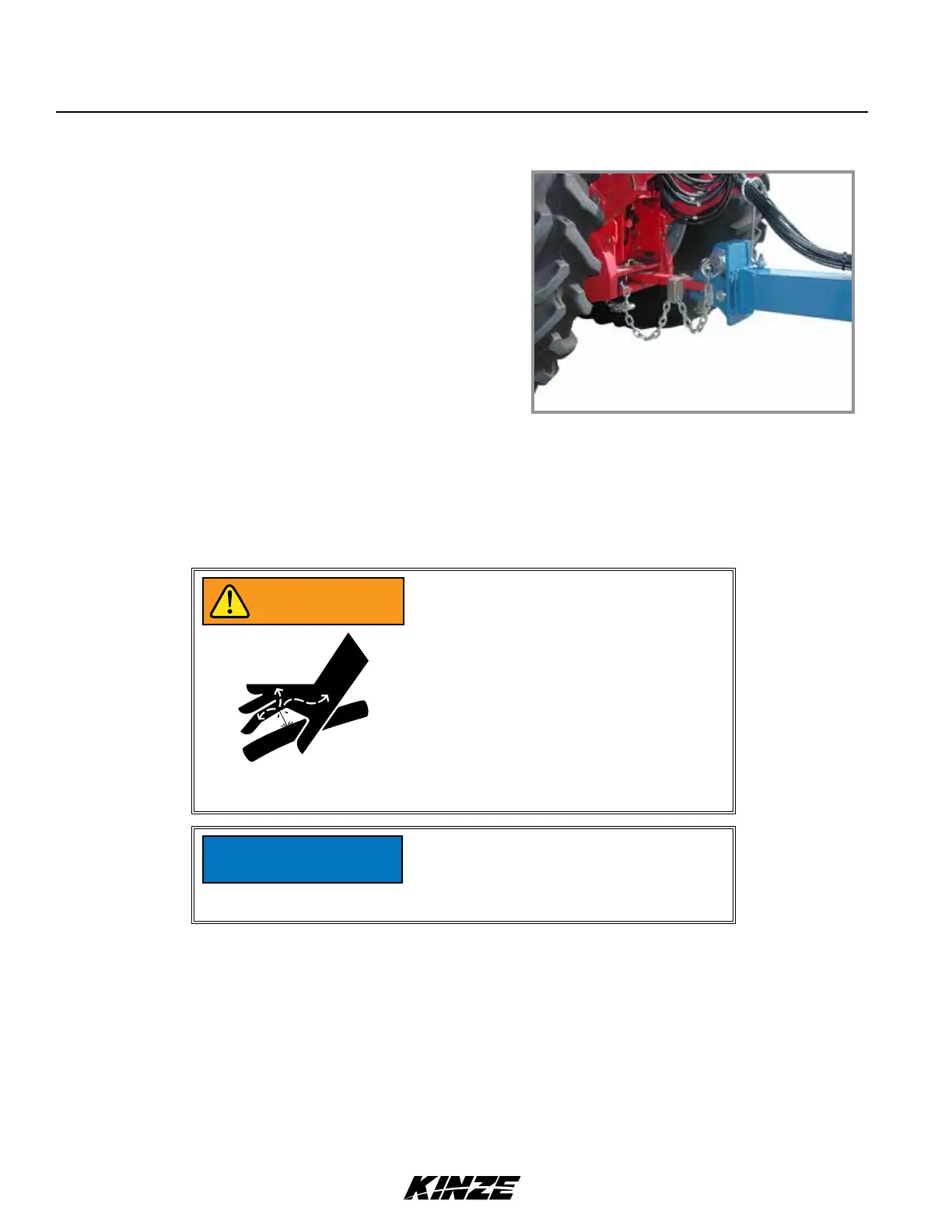

Drawbar and safety chain connection
NOTE: DO NOT install safety chain using clevis mounting hardware. Safety chain MUST be
installed separately.
3. Safety chain must be used to keep planter and tractor connected in case of a hitch pin/drawbar failure. Attach
safety chain at an unused clevis mounting hole on the planter hitch. Torque hardware to 840 ft-lb (1138.8 N-m).
NOTICE
Vacuum fan motor hydraulic hoses and case drain must be installed cor-
rectly. Motor can be damaged or equipment will not operate properly.
" hose from motor - Case Drain (CD - Orange or CD - Green)
¾" hose from motor - Return
½" hose to motor - Pressure
Wipe hose ends to remove any dirt
before connecting couplers to tractor
ports or contamination may cause
equipment failure.
NOTICE
Pressurized hydraulic fluid can penetrate
body tissue and result in death, serious
infection, or other injuries. Fluid injected
under skin must be IMMEDIATELY
removed by a surgeon familiar with this
type of injury. Make sure connections
are tight and hoses and fittings are
not damaged before applying system
pressure. Leaks can be invisible. Keep
away from suspected leaks. Relieve
pressure before searching for leaks or
performing any system maintenance.
WARNING
