Machine Operation

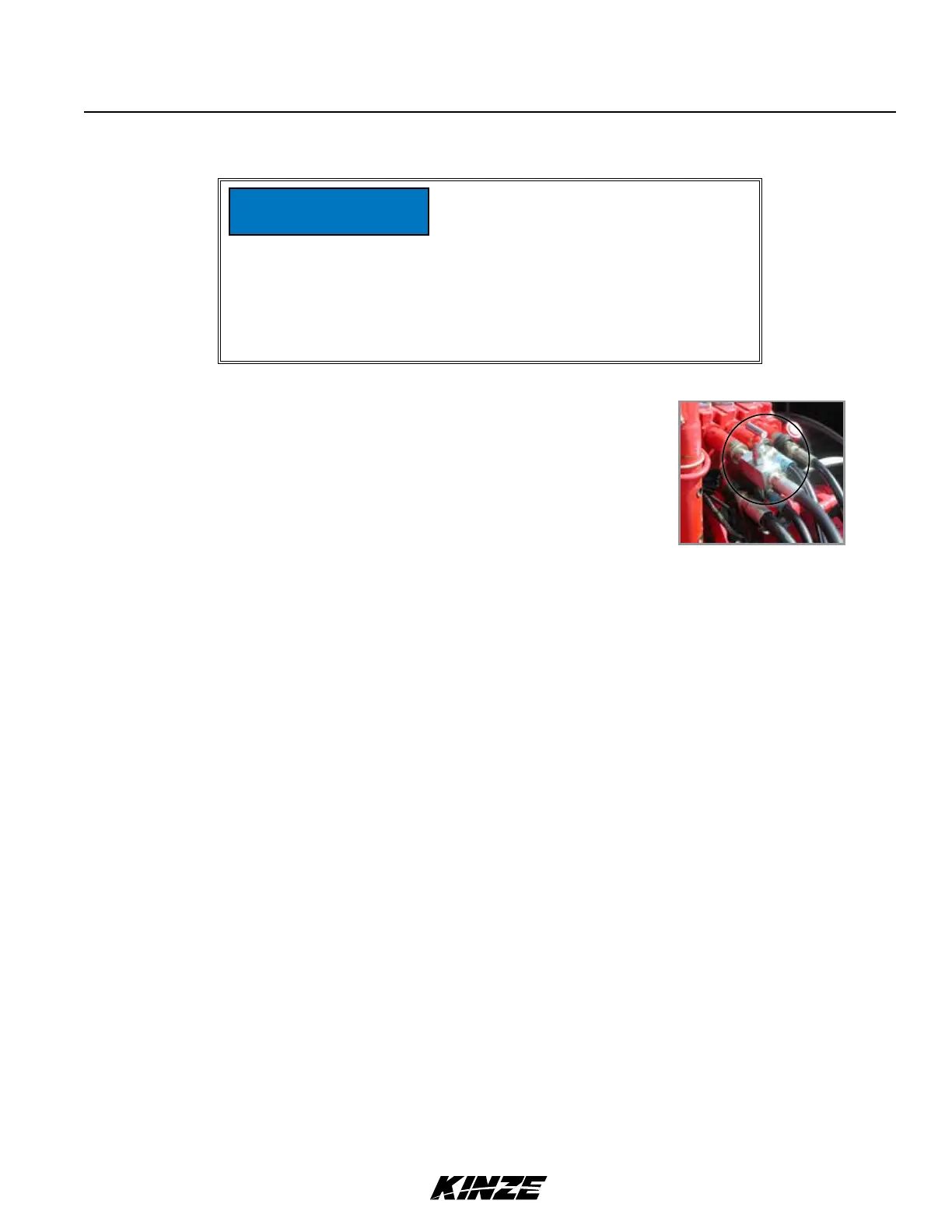

4. Connect hydraulic hoses to tractor ports in a sequence familiar and comfortable to the operator.
NOTE: If tractor is equipped with an adjustable flow outlet (SCV), set to full
flow position. For tractors not equipped with a method for finite adjustment
of hydraulic flow, Flow Control Needle Valve Kit G1K426 is available from
Kinze Repair Parts through your Kinze Dealer.
G1K426 needle valve kit
Vacuum fan motor hydraulic hoses and
case drain must be installed correctly.
Motor can be damaged or equipment will
not operate properly.
" hose from motor - Case Drain (CD -
Orange or CD - Green)
¾" hose from motor - Return
½" hose to motor - Pressure
NOTICE
