Lubrication and Maintenance
CHAIN TENSION ADJUSTMENT
Drive chains are equipped with spring loaded idlers
and are self-adjusting. The only adjustment needed is
to shorten the chains if wear stretches the chains and
reduces spring tension. The pivot point of these idlers
should be checked periodically to ensure they rotate
freely. See ‘‘Wrap Spring Wrench Assembly’’ in this
section for more information.

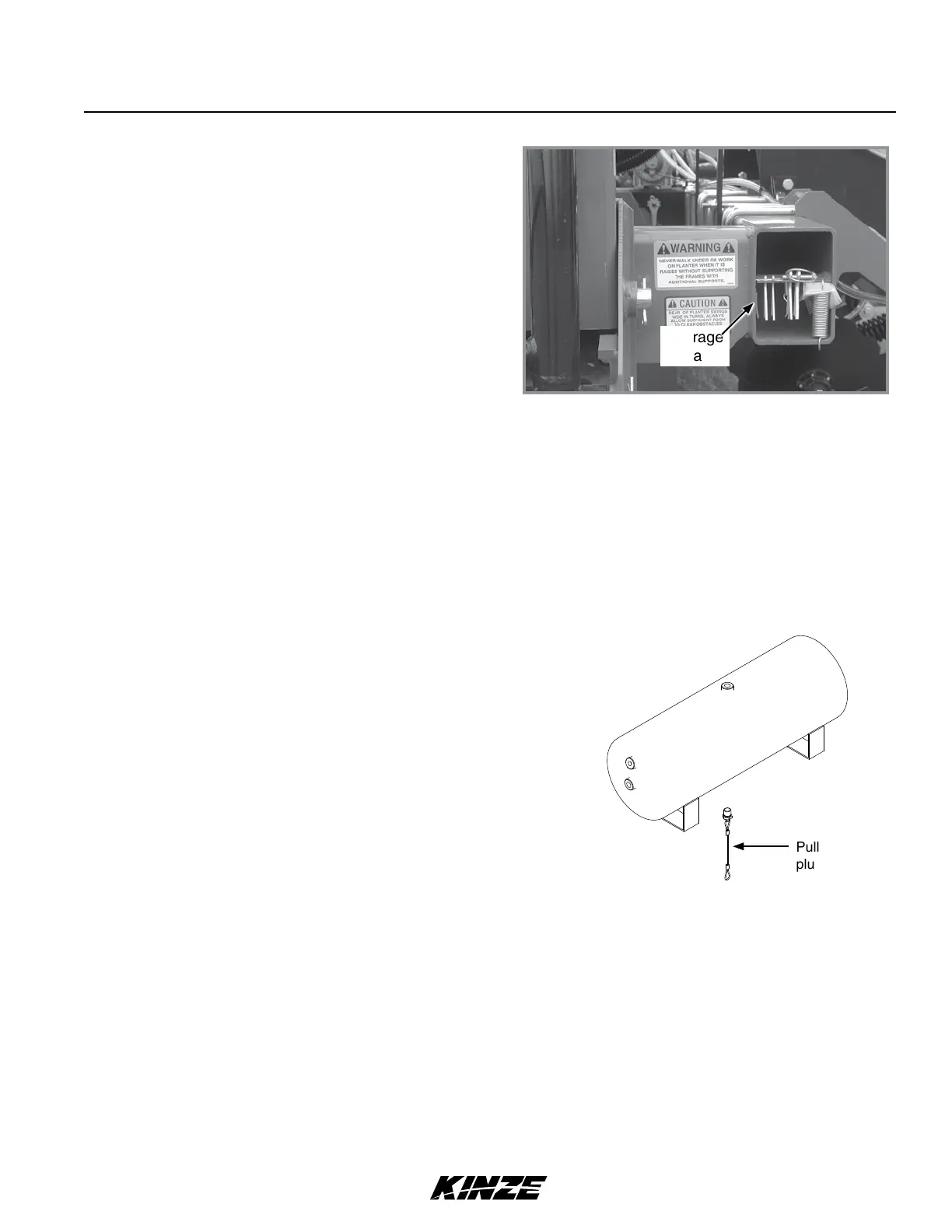

Additional chain links can be found in the storage area
located inside the front planter frame.
Storage
Area
Spare chain link storage
Moisture should be drained daily from the tank. Tank should be
drained completely for storage.
To drain tank, locate drain plug on the bottom of tank. Stand off
to the side of tank and pull cable attached to drain.
NOTE: If mositure is not drained from tank rust particles will
form inside tank.
PNEUMATIC DOWN PRESSURE AIR COMPRESSOR TANK
Pull drain
plug
