TM
Grain Cart
M0276-01
Rev. 2/18 3-17

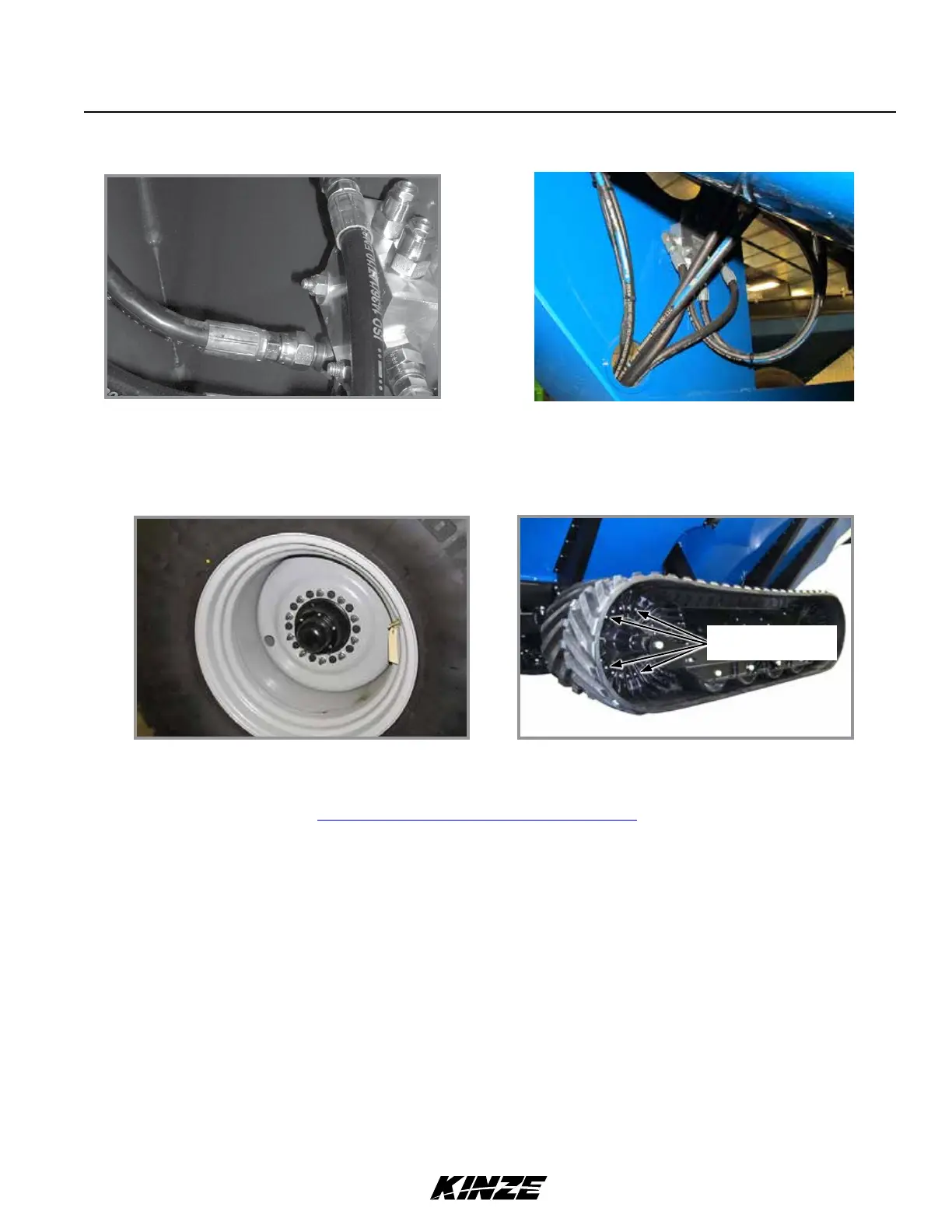

Lubrication and Maintenance
Counter balance valves prevent auger fold cylinder from extending or retracting without applied hydraulic pressure. If
valve(s) fail to lock auger in position or fail to function properly, remove valve(s) from valve block and check for foreign
material. Replace valve if defective.
VERTICAL AUGER COUNTER BALANCE VALVES
Clean threads with a wire brush and oil lightly to retard corrosion when removing and installating wheels.
Torque wheel nuts as specified in ““Mounting Bolts and Hardware” on page 3-15” and retorque daily during first 3
days of use and weekly thereafter.
NOTE: Retorque all track system idler and midroller bolts daily during first 3 days of use and monthly
thereafter. Torque bolts to 457 ft-lbs (620 N-m).
20 Bolt Hub Shown
WHEEL SERVICING
Soft Track Assembly
Hardware That
Attaches Segments
To Next Page
