TM
Grain Cart
M0276-01
Rev. 2/18 3-31
Lubrication and Maintenance
ELECTRONIC SCALE
The major elements of the electronic scale are the indicator, four 30,000 lb (13607 kg) rated weigh beams at the axle
assembly (applicable to track and flotation type carts) and 3¾" hitch weigh beam, the junction box (j-box) and the
battery power cable.
For additional information see “Electronic Scale Troubleshooting” for step-by-step procedures for troubleshooting
failures that may be encountered with the electronic scale.

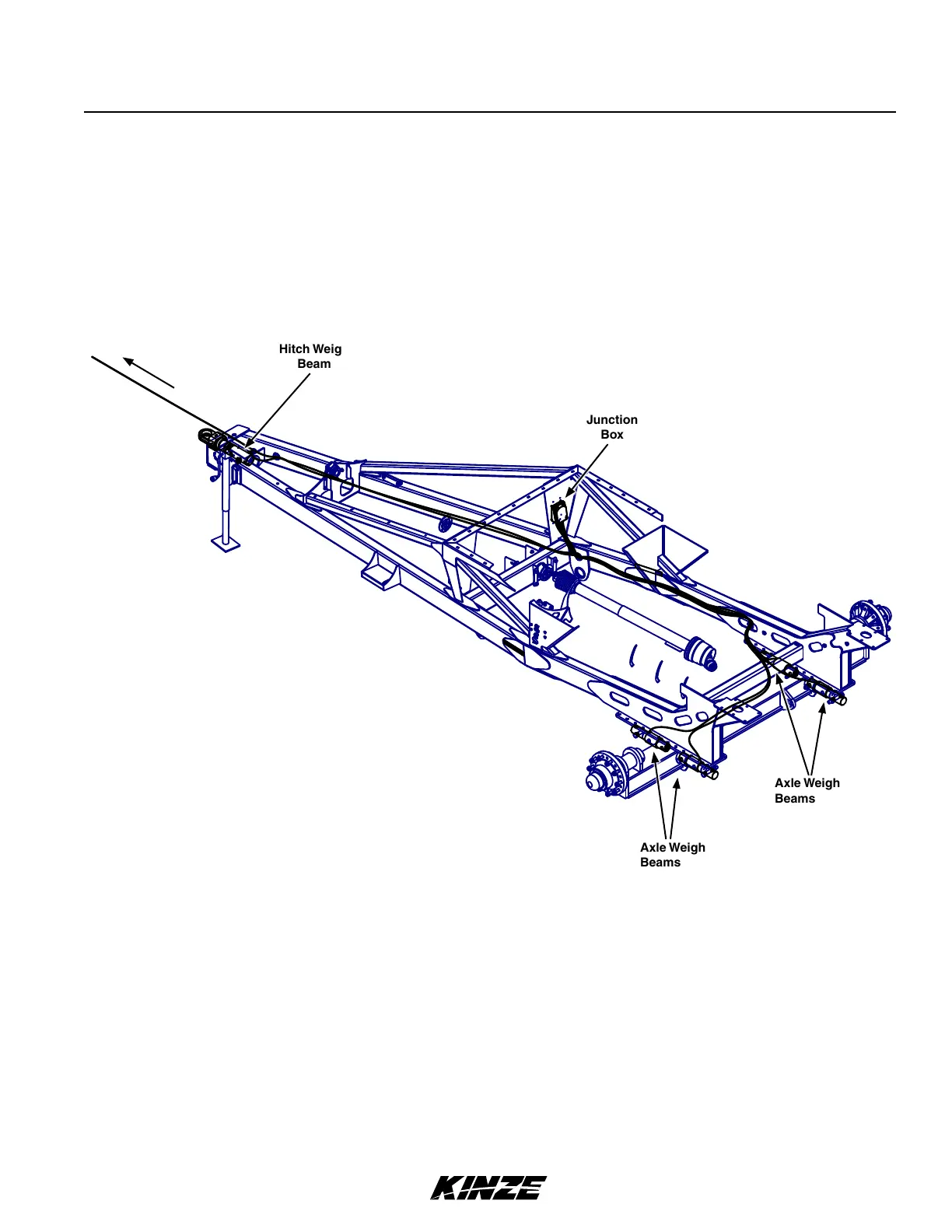

Hitch Weigh
Beam
Junction
Box
Indicator
located on
tractor
Axle Weigh
Beams
To Tractor
Axle Weigh
Beams
To Next Page
