Lubrication and Maintenance

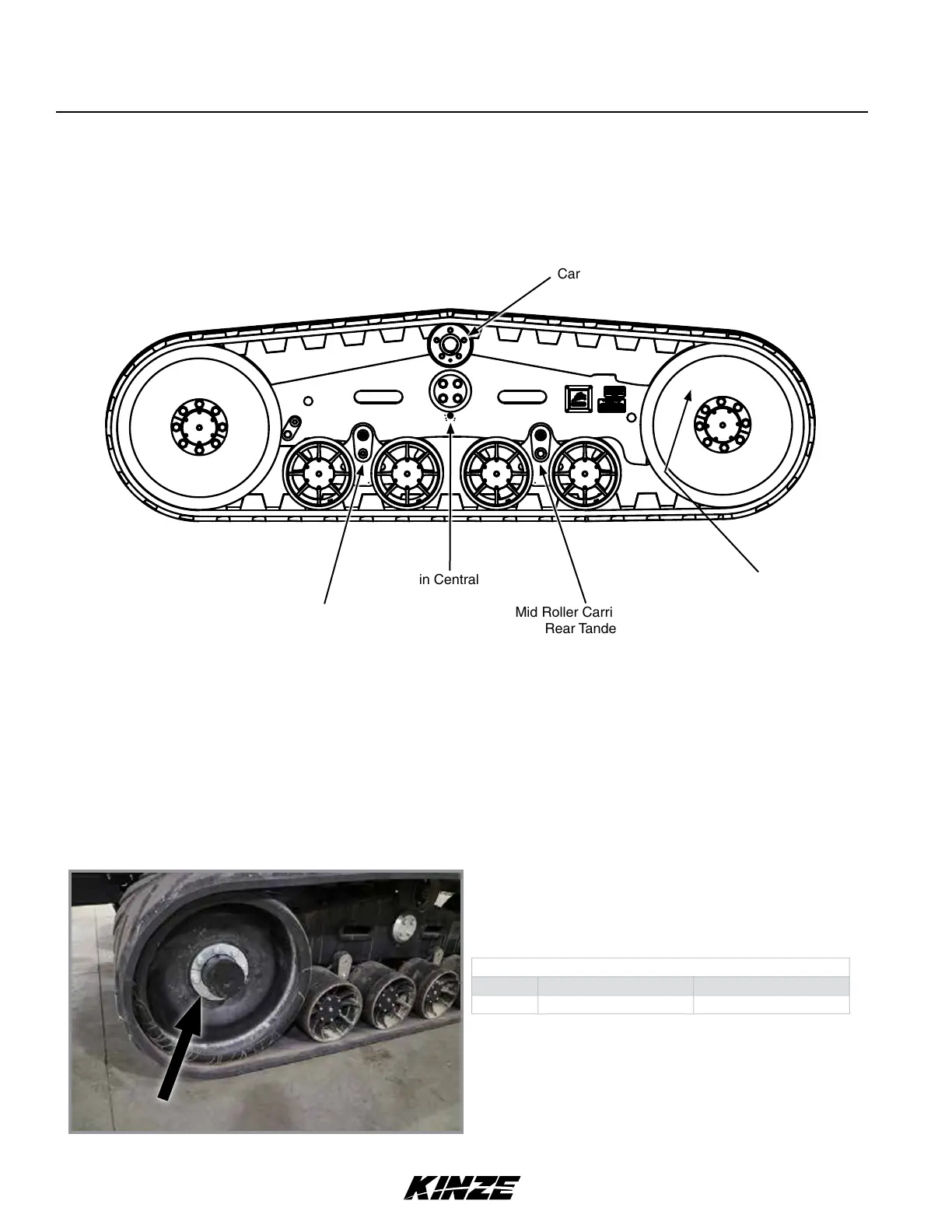

TRACK SYSTEM MAINTENANCE
Every 50 Hours or Weekly
GREASE UPPER CARRIER HUBS, UNDERCARRIAGE AND TRACK SYSTEM PIVOT POINTS
Mid Roller Carrier Pin -
Front Tandem
Main Central Pin
Mid Roller Carrier Pin -
Rear Tandem
Carrier Roller - Left and Right Side of Track
Tension Link Pin
(Located between
end wheels - rear only)
CHECK TRACK TENSION
System is self-tensioned via spring. Visually check track tension.
CHECK WHEEL BOLT TORQUE
NOTE: Always torque after wheel removal regardless of hours.
Wheel Bolt Torque Chart
Size
Torque (N-m) Torque (ft-lb)
M20 620 +⁄− 124 457 +⁄− 124
Every 100 Hours or Monthly
To Next Page
