Kinze 851 - Lower Vertical Auger Replacement

TM
Grain Cart
M0276-01
Rev. 2/18 3-21
Lubrication and Maintenance

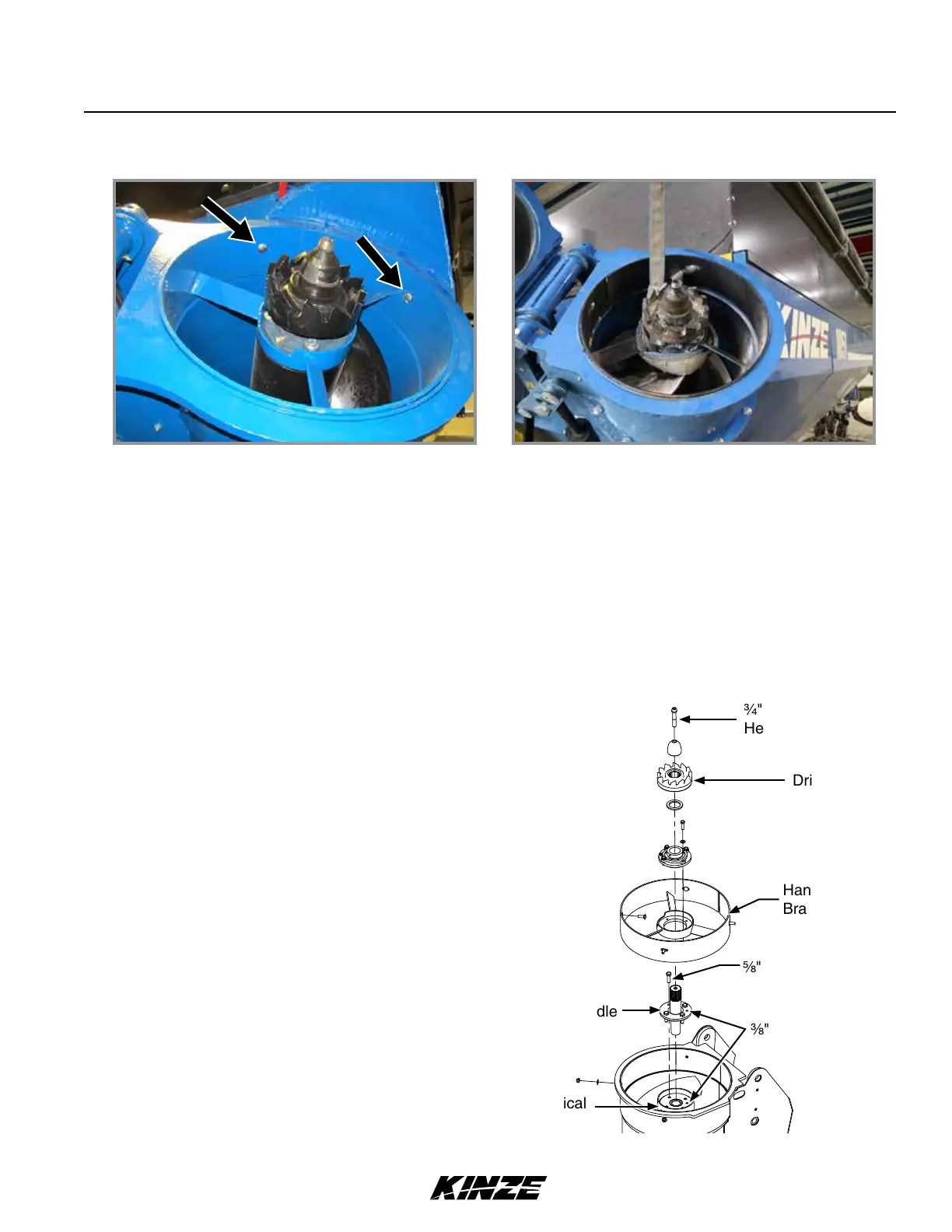

1. Position vertical auger in the storage/transport folded position.
2. Remove five ½" x 1½" hanger bearing bracket carriage bolts at upper end of lower vertical auger (two bolts visible
in photo above). Carefully work hanger bearing bracket loose from auger housing.
NOTE: Do not bend hanger bearing bracket when moving auger.
3. Position strap around auger as shown above. Be sure strap is tight against auger center tube. Pull auger and
hanger bearing assembly out of auger housing.
4. Remove ¾" x 5" cap screw at top of lower vertical auger and remove hanger bearing bracket components from
auger.
5. Remove four " x 2" cap screws that attach bullet
spindle to top of lower vertical auger.
6. Install bullet spindle onto top of replacement auger
aligning " hole in auger with " hole in bullet spindle.
7. Position hanger bearing bracket components onto top
of replacement auger. Torque ¾" x 5" cap screw at top
of lower auger to 200 ft. lbs.
8. Lower replacement auger into lower auger housing and
onto lower drive lugs.
9. Position hanger bearing bracket with the split in the
bracket in “up” position. Install four hanger bearing
carriage bolts and nuts and tighten.
¾" x 4" Hex Socket
Head Cap Screw
Bullet Spindle
/" Hole
Hanger Bearing
Bracket
" x 2" Cap Screws
Drive Lug
Lower Vertical
Auger
LOWER VERTICAL AUGER REPLACEMENT
