PERIODIC SERVICE 10-25
069OA41A
069OA40A

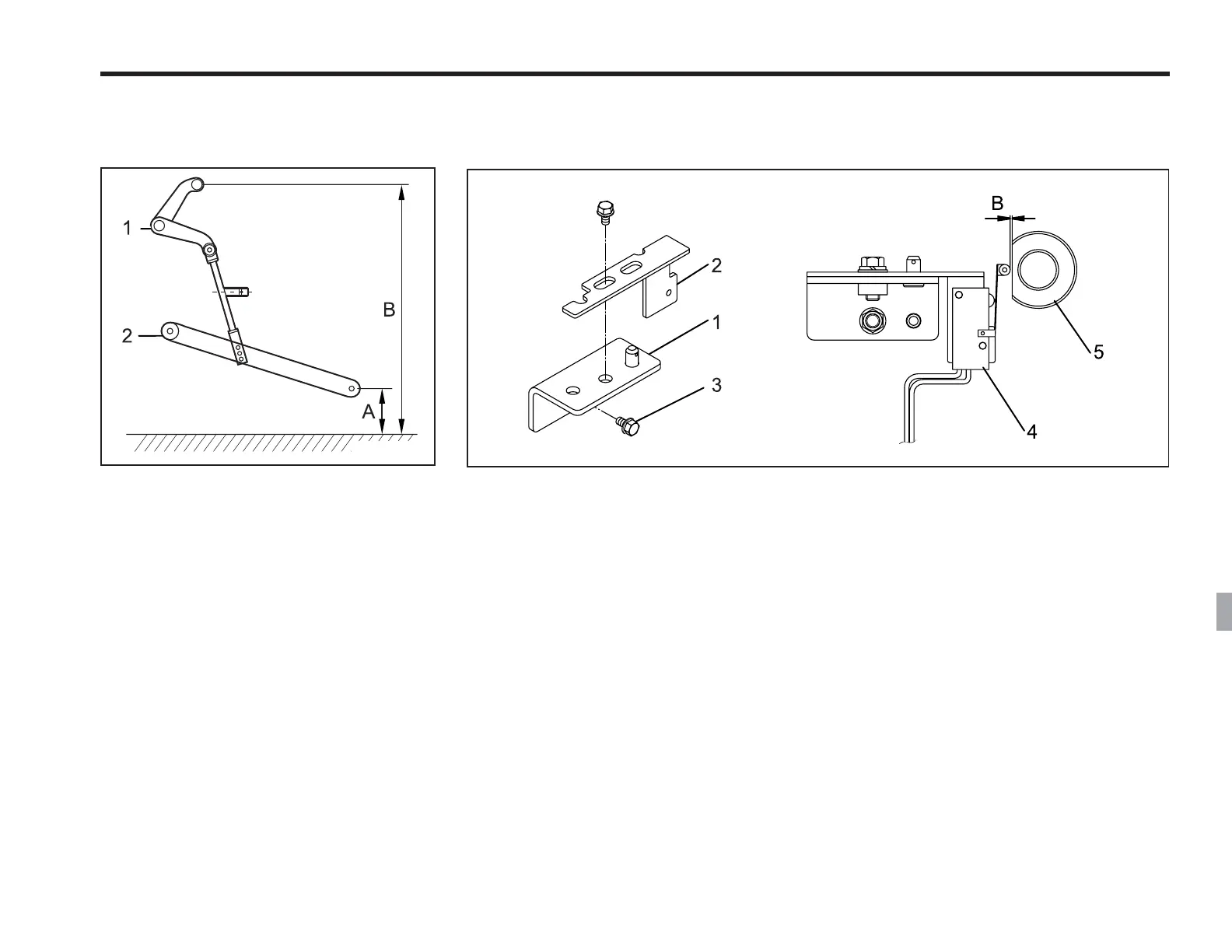

MICRO SWITCH’S HEIGHT
(1) Lifting Arm (2) Lower Link
(A) 600 ~ 650mm (23.6 ~ 26.0 in.)
(B) 1120mm (44.1in)
If you have assembled the micro switch
at the fender according to the assembly
order, the height from ground to center
of lower link ball will be set 600 to 650
mm (23.6 ~ 26 in.) or so. The PTO shaft’s
rotation will be stopped at this position.
Also, if you need the height higher than
the above (23.6 ~ 26 in.). Loosen the bolts
(1) and adjust the switch bracket (2)’s
(2) height toward the above bit by bit.
Simultaneously, check the lower link ball
center is appropriate to you. You can be
changeable this height (B) up to 1120 mm
(44.1in.) by this switch bracket’s position.
If not proper, adjust according to the in-
struction above.
(1) Bracket 1
(2) Bracket 2
(3) Bolt
(4) Micro Switch
(5) Position Lever
(A) 0.5 ~ 1.0mm (0.196 ~ 0.0393 in.)
