PERIODIC SERVICE 10-7
069OA07A 069OA09A
069OA10A069OA08A
EVERY 50 HOURS
LUBRICATING GREASE FITTINGS
You should apply a small amount of multi-
purpose grease to the following points
every 50 hours or as needed.
If your tractor is operated in extremely
wet, muddy, or dusty conditions you
should lubricate the fittings more often.

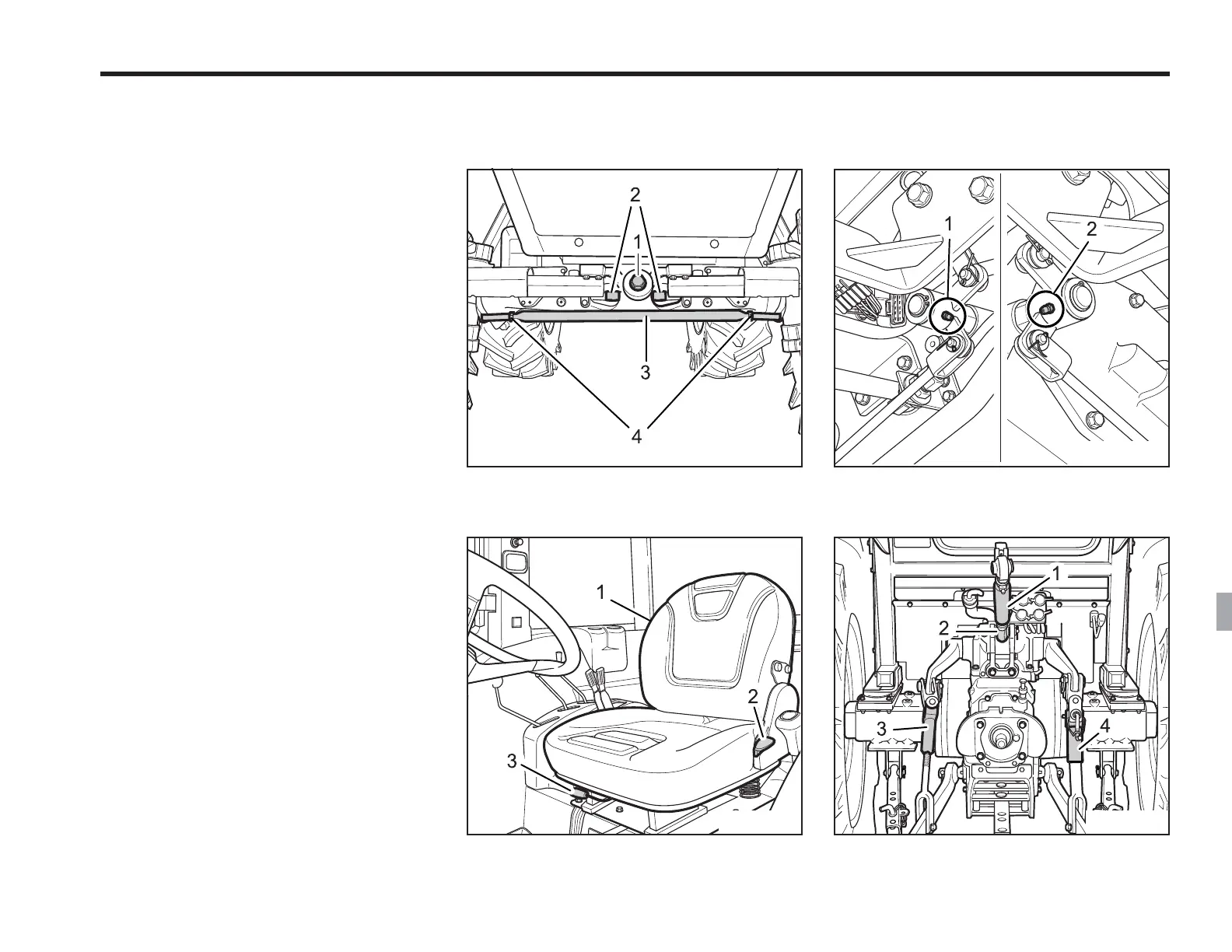

(1) Center Bolt (3) Tie Rod
(2) Steering Cylinder Pin (4) Lock Nut
(1) Brake Pedal(LH) (2) Brake Pedal(RH)
(1) Seat (3) Seat Sliding Lever
(2) Seat Ajusting Lever
(1) Top Link (3) Lifting Rod (LH)
(2) Top Link Holder (4) Lifting Rod (RH)
