4-4 DK55
069O404A 069O405A 069O406A
When hazard light switch is pushed down
forward, the hazard lights flash along
with the indicator on the instrument panel.
Push the switch down backward to turn
off the light.

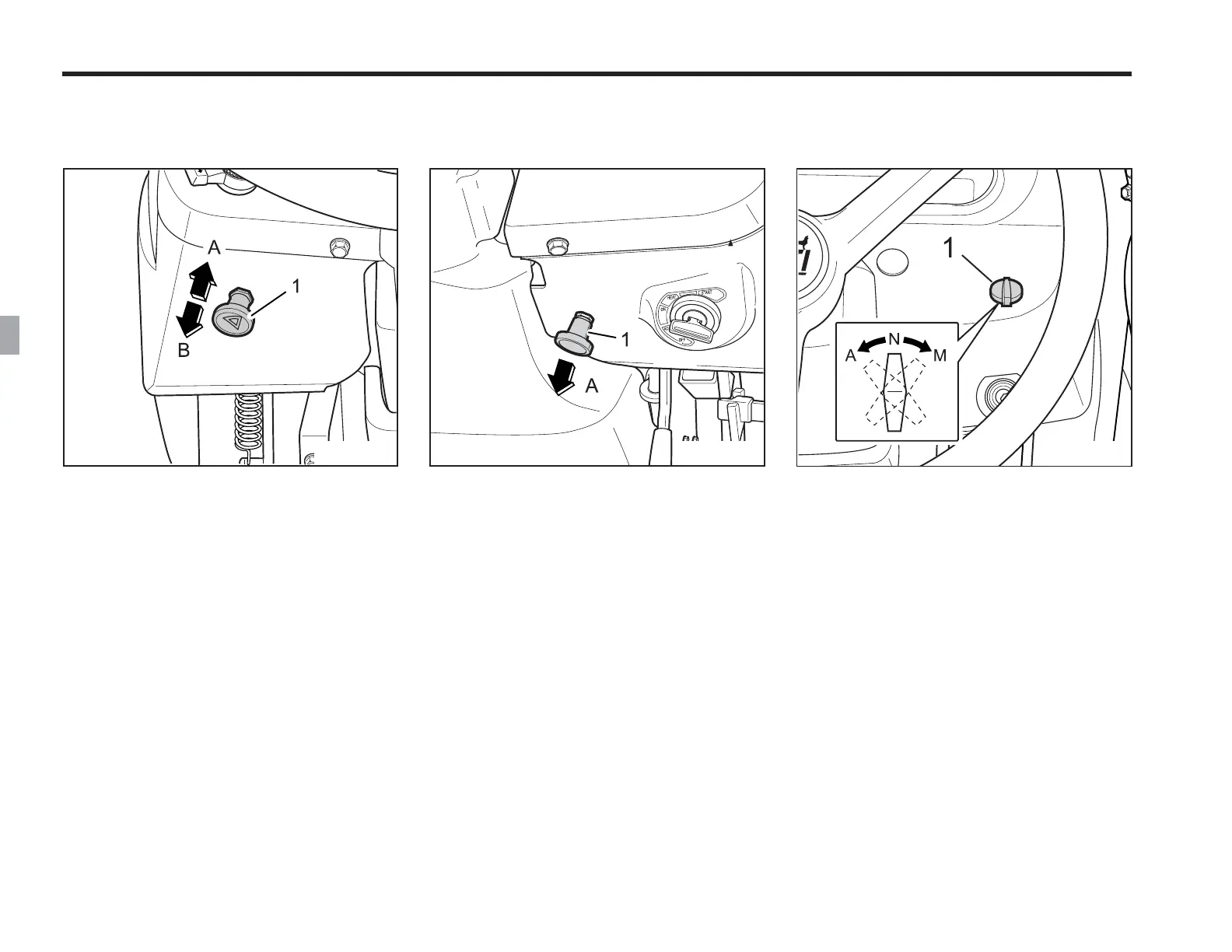

HAZARD LAMP SWITCH
(1) Hazard Lamp Switch
(A) Hazard Lights ON (B) Hazard Lights OFF
ENGINE STOP SWITCH
(1) Engine Stop Switch
(A) Engine Off
Whether engine is not stop with key
switch or stop the engine in emergency
situation, pull this switch.
The PTO switch must be placed to the
“neutral” positions before starting the
engine. Otherwise, the engine will not
start.
When turning PTO switch to Automatic,
the PTO operating only when the imple-
ment is in the lowered position. For
example, if you lift the implement while
working, the PTO will stop. But if chang-
ing PTO switch to Manual, PTO is always
operating.
PTO SWITCH
(MANUAL/AUTOMATIC)
(1) PTO Safety Switch (N) Neutral
(A) Auto matic (M) Manual
