Kioti DK55 - Clutch;Brake Pedal Adjustment and Battery Care

10-12 DK55
069OA19A069OA18A

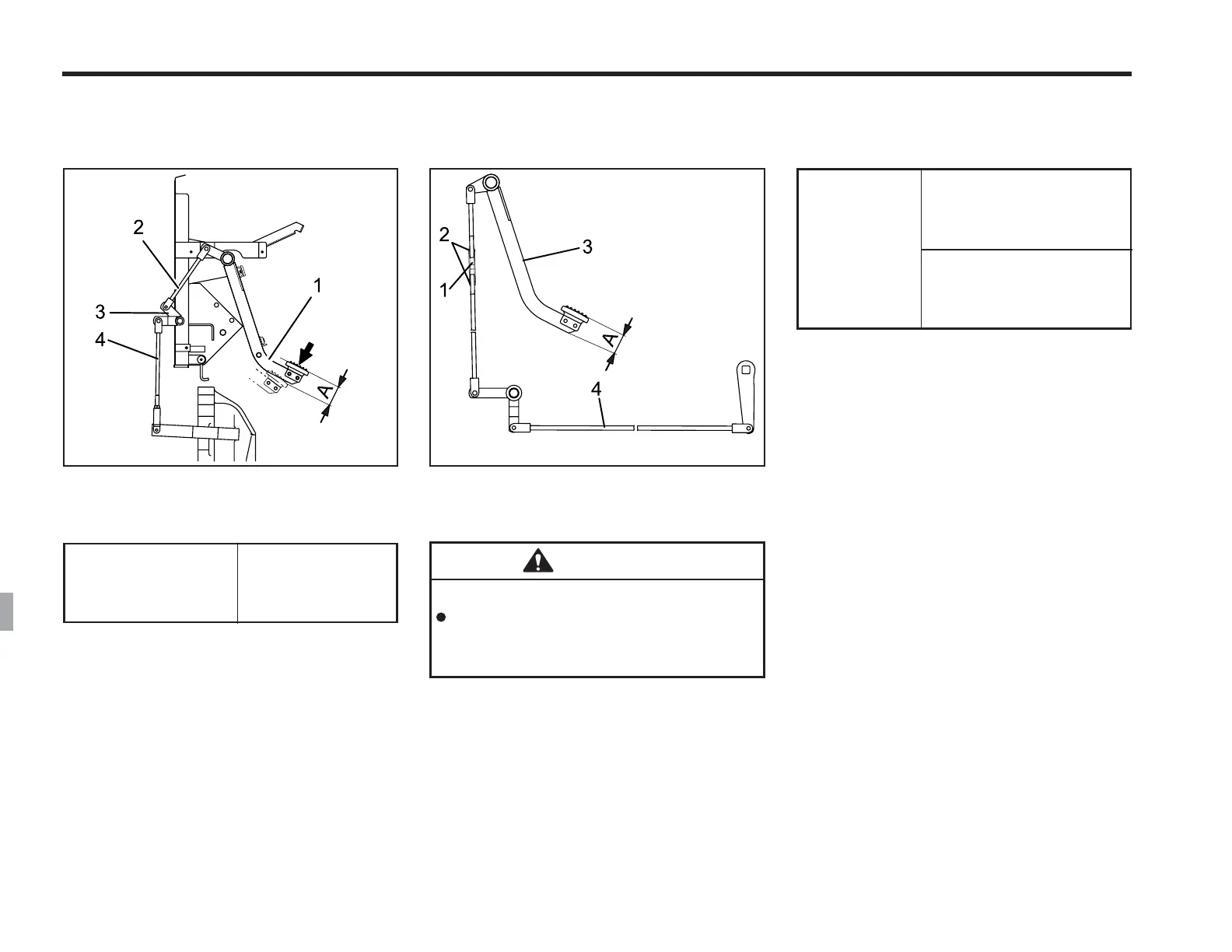

ADJUSTING CLUTCH PEDAL
Proper clutch
pedal free travel(A)
20 ~ 30 mm
(0.8 ~ 1.2 in.)
on the pedal
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and
measure free travel at top of pedal
stroke.
3. If adjustment is needed, loosen the lock
nut, remove the clevis pin and adjust
the rod length within acceptable limits.
4. Retighten the lock nut and split the
cotter pin.
ADJUSTING BRAKE PEDAL
Proper
brake pedal
free travel
25 ~ 40 mm
(0.98 ~ 1.57 in.)
on the pedal.
Keep the free travel
in the right and left
brake pedals equal.
(1) Turn Buckle (3) Brake Pedal
(2) Lock Nuts (4) Brake Rod
(A) 25 to 40mm(0.98 to 1.57in)
CAUTION
To avoid personal injury:
Stop the engine and chock the
wheels before checking brake
pedal.
1. Release parking brake.
2. Slightly depress the pedals and mea-
sure the free travel at the top of the
pedal stroke.
3. When adjustments are needed, loosen
the locking nut and turn the turnbuckle
until the rod length is at the desired
and acceptable limit.
4. Re-tighten the lock nuts.
(1) Clutch Pedal (3) Clutch Lever
(2) Clutch Rod (4) Clutch Rod 2
(A) Length Of Clutch Rod
