When the hand throttle is pushed
forward, the engine speed will increase.
When pulled rearward, the engine speed
will decrease.

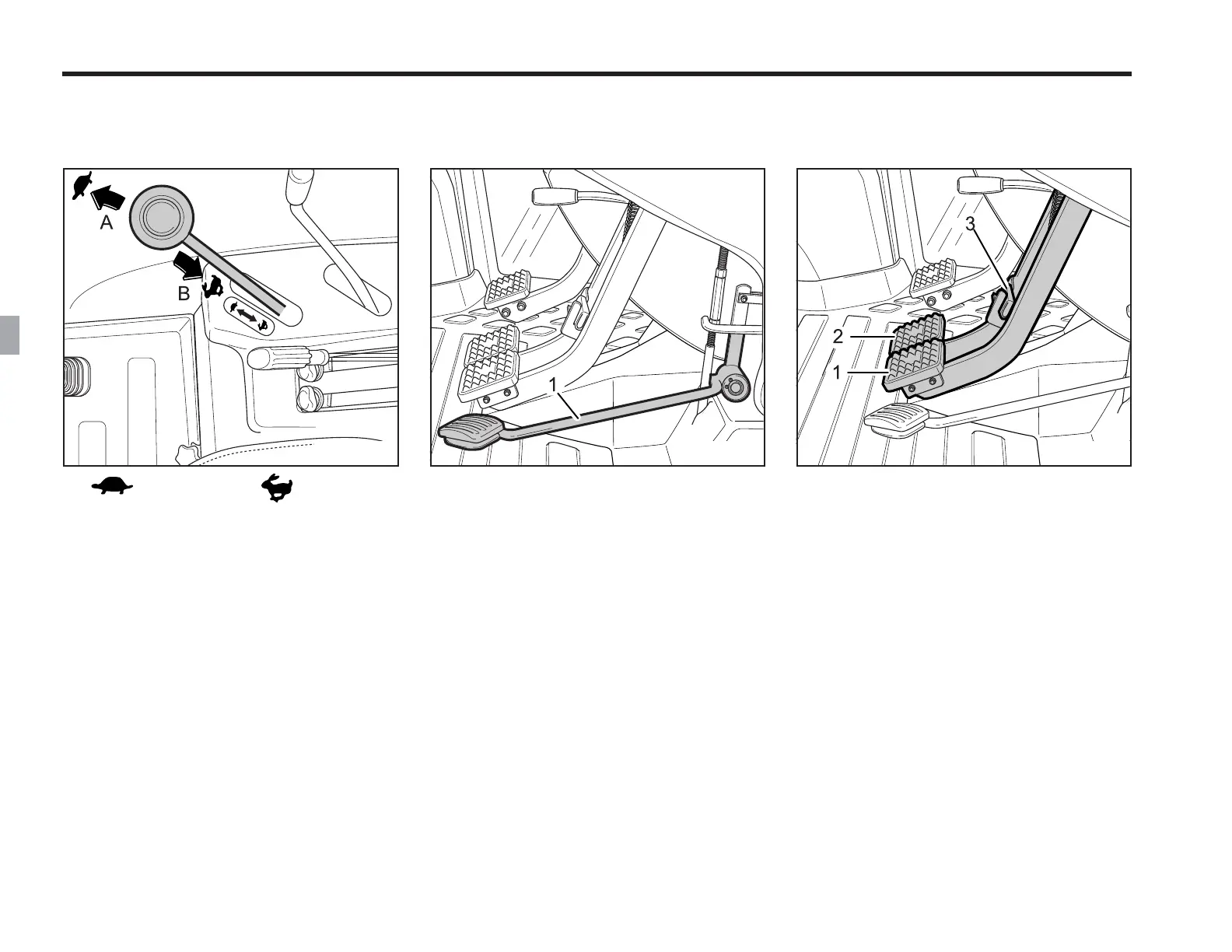

HAND THROTTLE
(A) - Decrease (B) - Increase
The foot throttle is interlocked with the
hand throttle. Depressing the foot throttle
increases engine speed. Full engine
speed control can be obtained with the
foot throttle if the hand throttle is in full
rearward position. The foot throttle may
also be used to temporarily increase en-
gine speed above the hand throttle
setting.
FOOT THROTTLE
(1) Foot Throttle
1. Before operating the tractor on a road,
be sure to interlock the right and left
pedals as illustrated below. It will be
very dangerous to use only one brake.
2. Use individual brake to assist in mak-
ing sharp turns. Disengage the brake
lock and depress only one brake pedal
with direction that you are turning.
3. When operating the tractor on roads,
always be sure to interlock the left
and the right brake pedals. Do not
forget to observe this precaution, oth-
erwise, stepping on only one brake
while operating on roads would cause
unforeseen accidents.
BRAKE PEDAL(RIGHT AND LEFT)
(1) Brake Pedal (R) (3) Brake Lock
(2) Brake Pedal (L)
069O428A069O427A
