INSTRUMENT PANEL AND CONTROLS 4-17
069O435A 069O436A
OUTER HYDRAULIC CONTROL
LEVER
Attaching or detaching the implements at
external, controls the lift arm position by
this lever.
Outer Hydraulic Control Lever
Operating the hydraulic control lever ac-
tuates the hydraulic lift arm, which con-
trols implement height or working depth.
To lower implement, push the lever
forward; to raise it, pull the lever back.

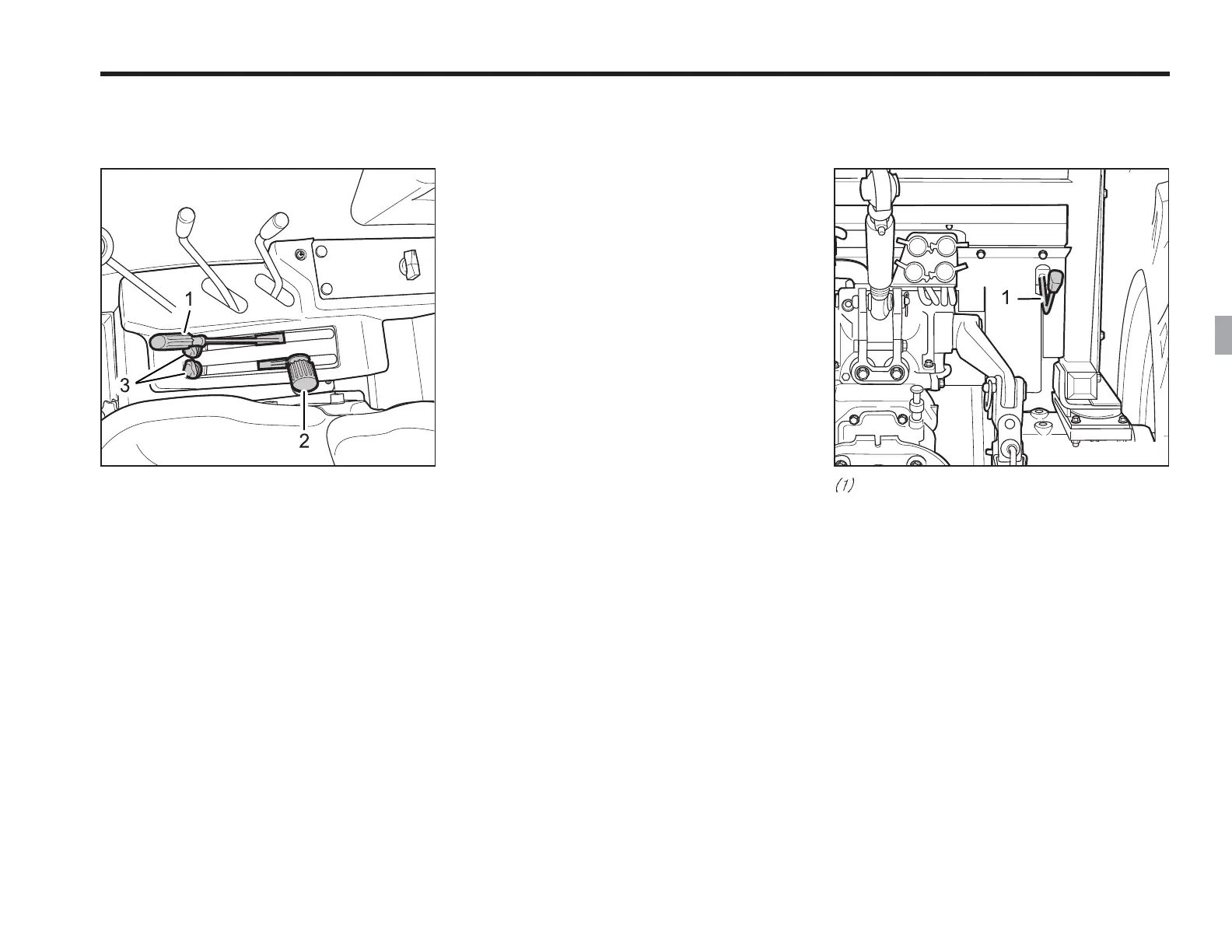

HYDRAULIC CONTROL LEVER
(1) Position Control Lever (3) Stop Bolt
(2) Draft Control Lever
HOW TO USE THE STOP BOLT
1. Determine a desired working position,
using the control lever.
2. Fix the stop bolt in the desired position.
3. Once the stop bolt is set, simply move
the relevant hydraulic lever forward
until it reaches the stop bolt.
