8-4 DK55
069O805A
069O804A

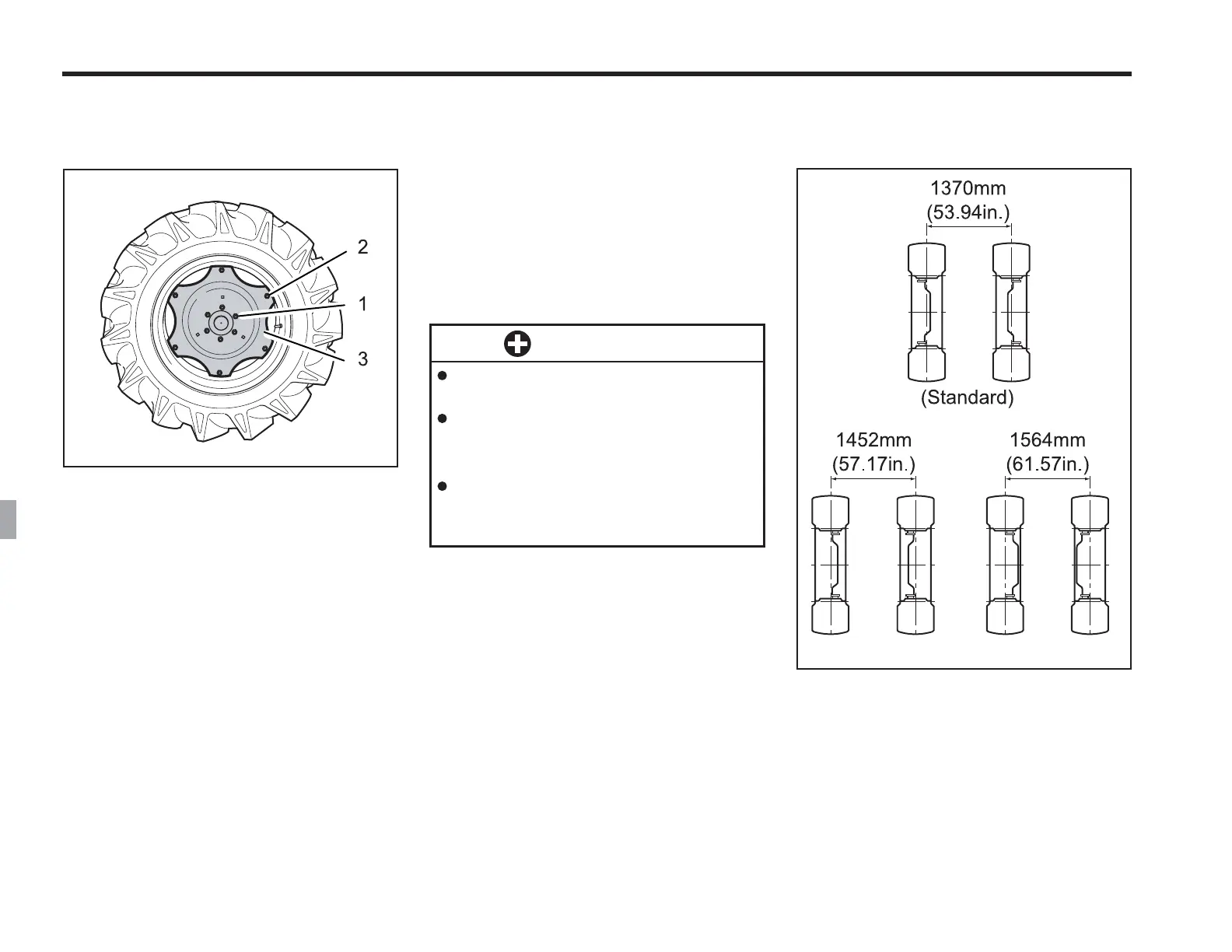

REAR WHEELS
(1) Body (3) Disc
(2) Rim Bolt
The rear axle tread width are adjustable
in 3 stages from 1,180 to 1,490 mm (46.4
to 58.6 in.) by changing the installation of
the tire (together with rim) to the disk, to
suit the type or condition of work. In ei-
ther case, the tire should be installed so
that arrow mark would show the direc-
tion of rotation. Furthermore, the tire mark
on the ground should be in “V” shape.
To change the present tread to the de-
sired tread, all of the arrow mark would
show the direction of rotation.
Furthermore, the tire mark on the ground
should be in “V”shape.
Remove rim bolts, slide in peripheral di-
rection to move to outside or inside of
disk and set.
Change the left with the right tire, and
set to the inside or outside of the disk.
Change the direction of the disk.
IMPORTANT
Always attach tires as shown in
the above drawings.
If not attached as illustrated,
transmission parts may be dama-
ged.
After changing the wheel, nuts
should be torque to 20 ~ 23 kgf·m
(196 ~ 226 N·m, 145 ~ 165 lbf·ft).
To Next Page
