TACHOMETER/HOUR METER
Wait until Engine is warm enough. Do not
operate tractor before Temp. meter indi-
cates the proper temperature. Be care-
ful not to overheat the engine by exceed-
ing the normal operating of the cooling
water (red section on temperature gauge
indicates overheating). Before operating
tractor, always check the amount of cool-
ing water in the radiator.
TEMPERATURE GAUGE

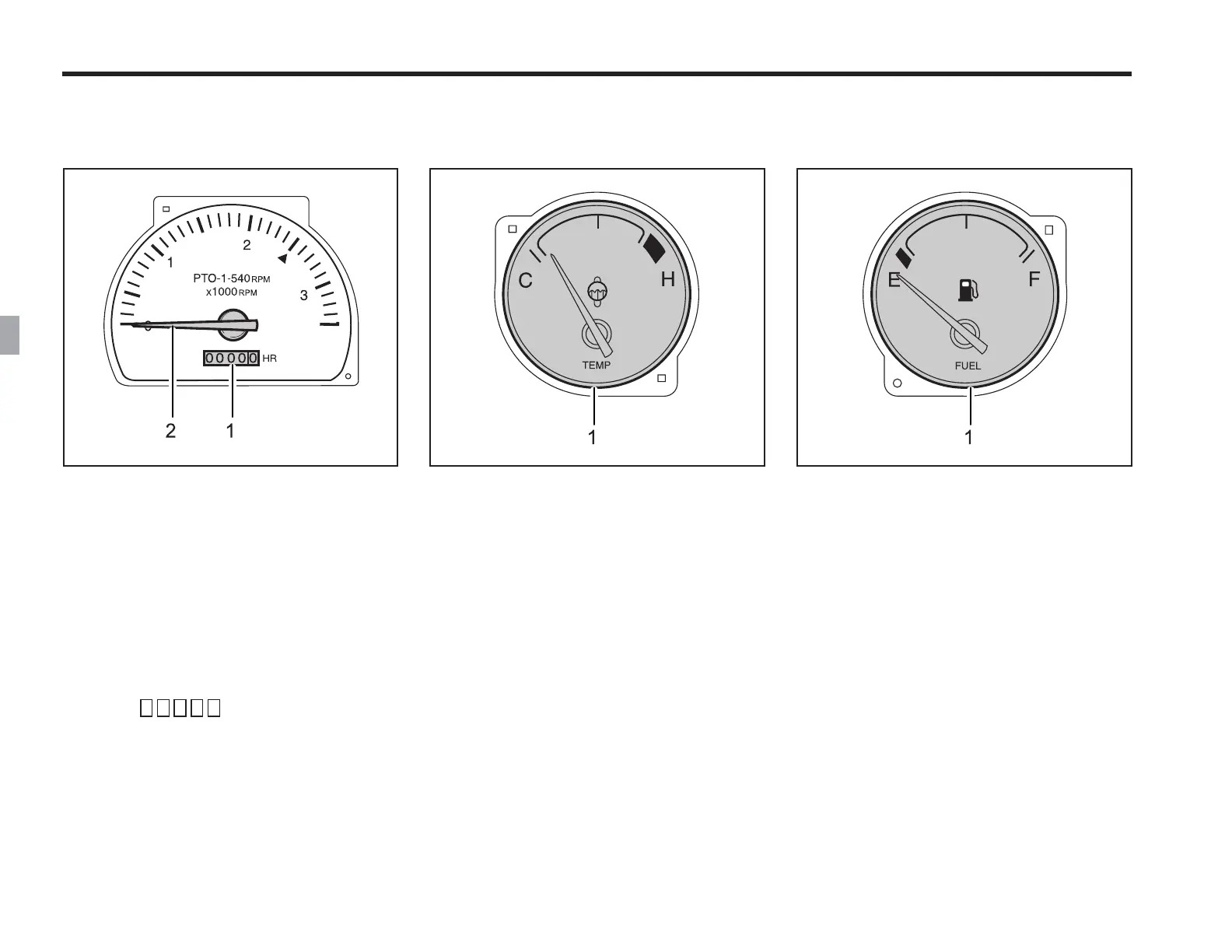

(1) Hour Meter
(2) Engine Revolution Meter
(1) Temperature Gauge
Fuel gauge indicates the amount of fuel.
Be careful to refill the fuel tank before it
becomes empty. Once the fuel tank be-
comes empty, it will be necessary to
bleed the fuel system before the engine
start.
(1) Fuel Gauge
FUEL GAUGE
This meter shows the number of hours
the tractor has been operated at rated
engine rpm. The last digit (white
background) indicates 1/10 of an hour.
The time in minutes will be shown by mul-
tiplying by six to last digit on white
background.
Example 0 1 7 0 1 …. 170 hours 6 min-
utes used. Moving hand indicates the
revolution per minute of the engine
