Part 1 Basic Functions 1-7
1. 5 Appearance

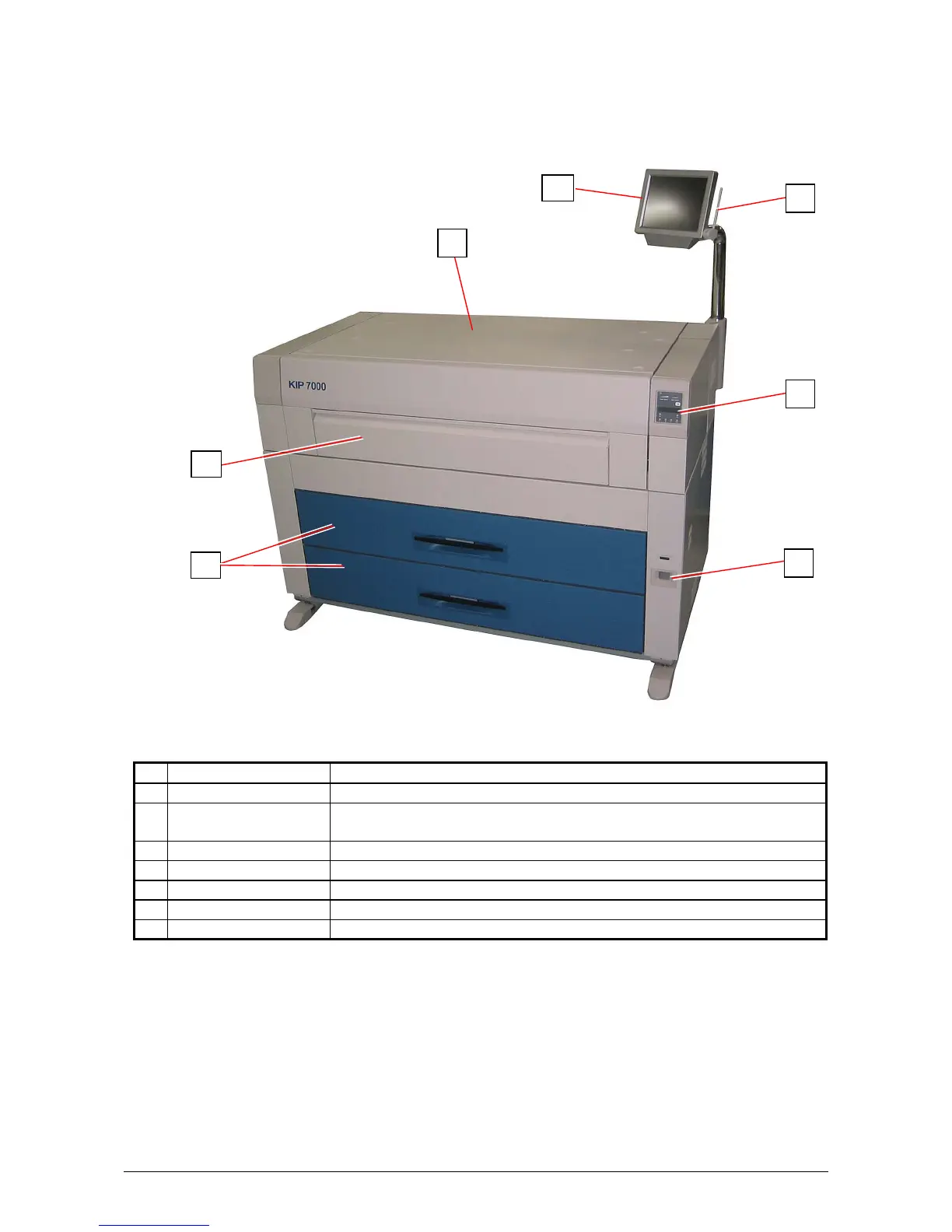

1. 5. 1 Front view
Name of part Function
1 User Interface (UI) This is a Touch Screen, and many user operations are available.
2 Top Cover Open to clear the mis-fed paper.
It is possible to put KIP 600 Scanner and KIP 2100 Scanner.
3 Manual Table Open to insert a sheet of paper, or to pull the Upper Frame Unit.
4 Roll Decks Each Roll Deck holds 2 rolls of print media.
5 Sub Display Panel Printer information and error codes are indicated on this panel.
6 Power Switch Press “ON” to turn on the printer, and press “OFF” to turn it off.
7 Pen This pen is used to operate the User Interface (UI).
2
3
4
5
6
1
7
