Kipor IG2000 Shop Manual

42

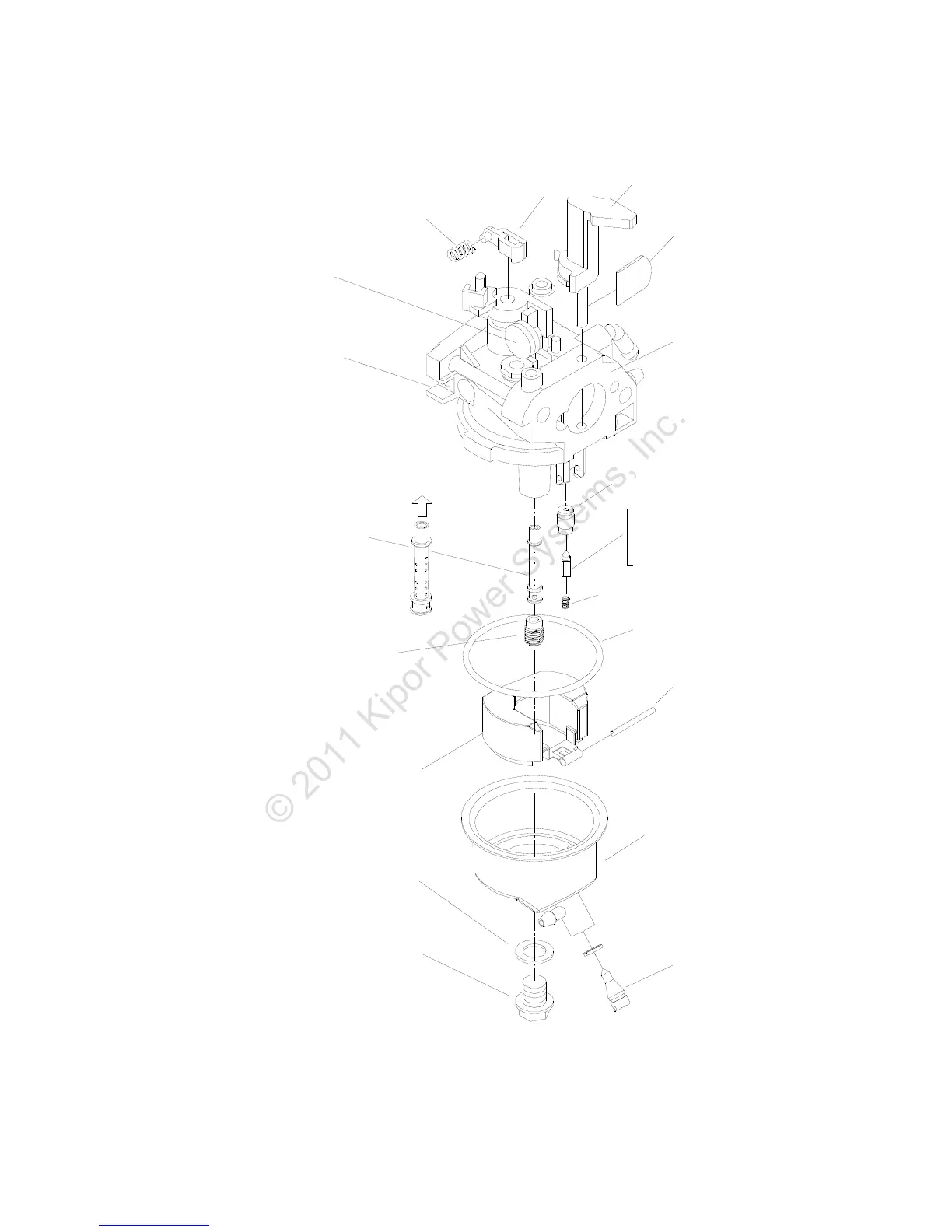

● Disassembly/Installation of Carburetor
浮子
组装：
安装后应当用手指触
动，对其动作确认。
油杯螺栓
组装：
安装后确认没有燃油
漏出。
阻风门杆
阻风门片
拨叉弹簧
拨叉
混合比调节螺丝
出厂前位置已确
定，不可调节
泡沫管
组装：
先用压缩空气清除通
路中的脏物再安装。
注意安装方向。
控油针
组装：
先对端部的磨损、弹簧的动
作进行检查，再进行安装。
控油针弹簧
针座
浮子销
油杯密封圈
主量孔
组装：
先用压缩空气
清除通路中的
脏物再安装。
油杯
油杯放油螺栓
组装：
安装后确认没有燃油
漏出。
油杯锁紧螺丝密封圈
本体
怠速调整限位帽
Fork spring
Fork
Choke valve
Choke valve
p
late
Carburetor block
Idle adjusting cap
mixture adjusting screw
(sealed)
Foam tube
Installation: clear foreign
material with compressed
air before installation.
Main metering jet
Installation: clear foreign material
with compressed air before
installation. Pay attention to the
installation direction
Float
Bowl bolt
Installation: check for
fuel leakage after
installation
Bowl drain bolt
Installation: check for
fuel leakage ater
installation
Fuel control needle
Installation: check the end
and spring before installation
Bowl
Fuel control needle
Sealing ring of bowl
Float pin
Needle seat
Sealing ring of carburetor bowl
© 2011 Kipor Power Systems, Inc.

Kipor IG2000 Specifications

General

Rated Power	1.6 kW
Voltage	230 V
Frequency	50 Hz
Fuel Type	Gasoline
Starting System	Recoil
Weight	22 kg
Engine Type	4-stroke, OHV
Noise Level	54-59 dB(A)
Continuous Operation Time	4 h (at rated load)
