Kipor IG2000 Shop Manual

51
be continuity among the four plugs.
3. There should be continuity between the cable earth terminal and AC receptacle earth terminal.
接地端
并联插头
交流插座
接地端
接地端
并联插头
输出端
● Capacitor
Beginning with models built in December 2007 and ending in July, 2008, a capacitor was added to
reduce electro-mechanical interference and eliminate problems with some digital clocks not displaying
the time properly. This was an interim solution and all later models had an inverter module modification
to eliminate the capacitor.
1. LOCATION
The capacitor was placed in the output lines between the inverter and the AC receptacles. It is
physically located inside the service door to the right of the oil dipstick. It is mounted on a bracket that
bolts to the base plate. The base plate was modified to accept the new bracket. There is a 2p
connection behind the receptacles.

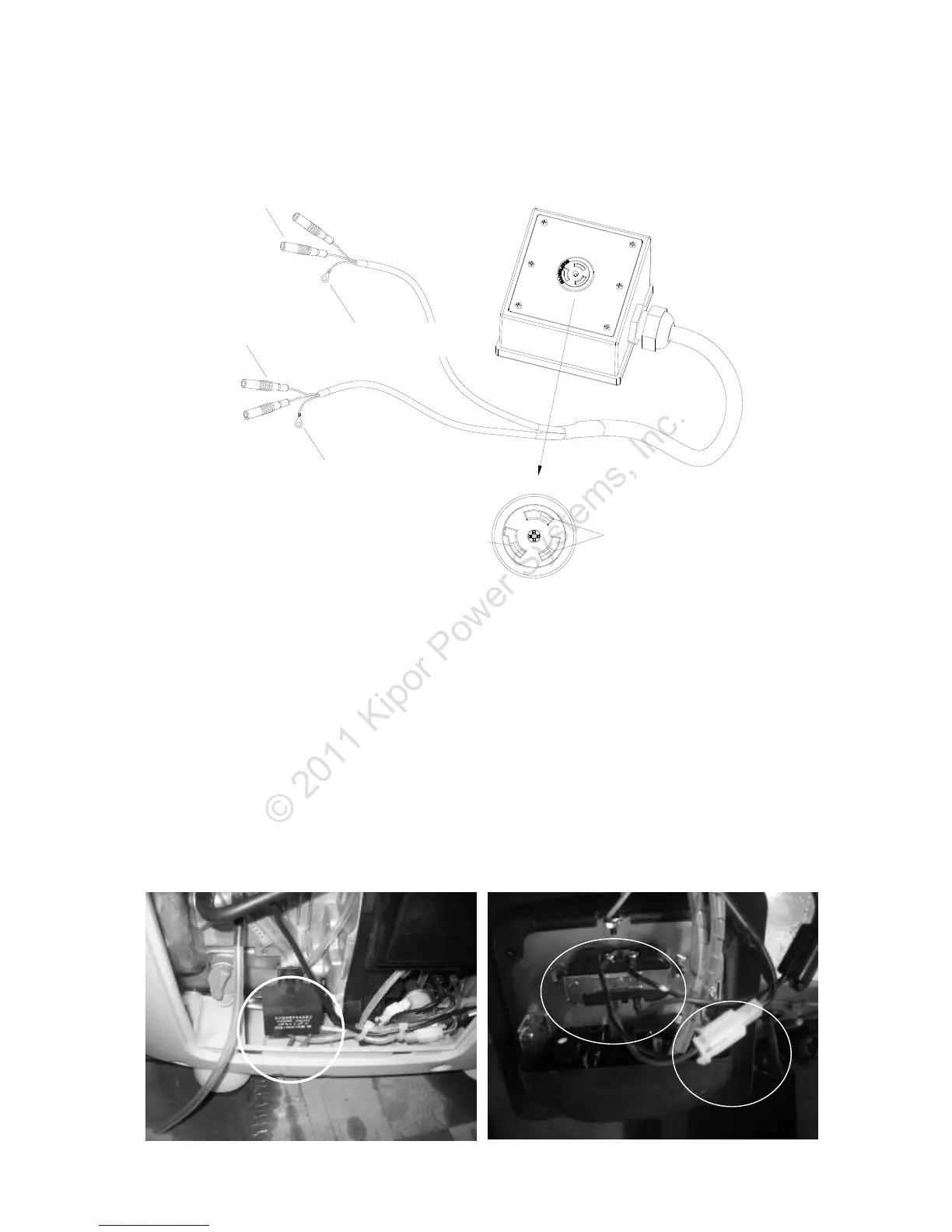

Grounding terminal
Grounding terminal
Grounding terminal
Parallel connection plug
Parallel connection plug
Output terminal
AC Receptacle
© 2011 Kipor Power Systems, Inc.

Kipor IG2000 Specifications

General

Rated Power	1.6 kW
Voltage	230 V
Frequency	50 Hz
Fuel Type	Gasoline
Starting System	Recoil
Weight	22 kg
Engine Type	4-stroke, OHV
Noise Level	54-59 dB(A)
Continuous Operation Time	4 h (at rated load)
