Kirisun DP990 Service Manual

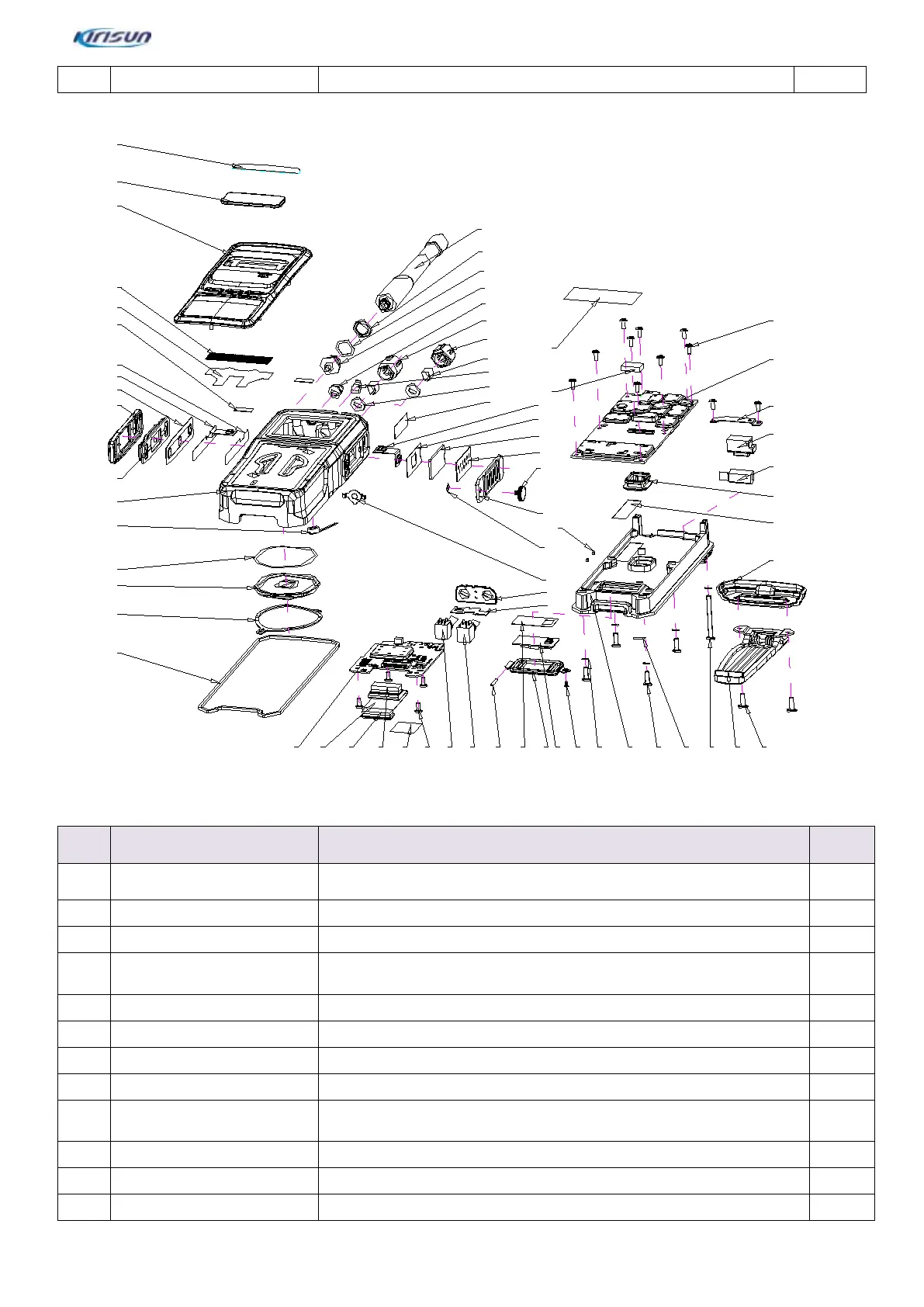

DP990/DP995service manual
19
76
7WFP-4182-01A
Protective film for glass, PET
1
2
1
3
4
5
6
8
9
11
12
13
15
17
18
16
19 23
29 30
24 25 26 27 28
31 32 33 35 36 37
38
39
40
44
23
50
49
51
48
47
60
61
62
63
52
53
54
55
59
65
66
67
68
45
64
46
10
20
7
58
56
14
57
34
41
42
43
2221
DP995
BOM of DP995
SN
Material Code
Description
QTY
1
7MBP-4193-03A-W0
Logo name plate, PC, transparent, with adhesive screen print
2
7MBP-4193-02A-W0
Decorative cover, PC1414, black, etched
1
3
7MBP-4193-01A-W0
Top housing cover, PC1414, black, etched
1
4
7MHB-4193-02A-W0
Speaker dust screen, PVC, mesh holed, black, 0.15mm
1
5
7MHB-4193-01A-W0
Dust screen, nonwoven cloth, black
1
6
7WFP-4195-01A
PET sheet of FPC hole of Ex key
1
7
7MHJ-4182-02A-W
Dual-side adhesive for side-key PCB
1
8
61FP000010
Speaker dust screen, PVC, mesh holed, black, 0.15mm
1
9
7MBS-4182-01B-W
Waterproof metal dome array for side key,￠6 stainless, circular, IP67
1
10
7MBP-4182-04A-W0
Side-key holder, PC1414, etched
1
11
7MHP-4182-01A-L6
Side key, black and orange
1
12
147K01000167
Top housing, black, no screen print, etched
1
