KitchenAid K5-A Service Manual

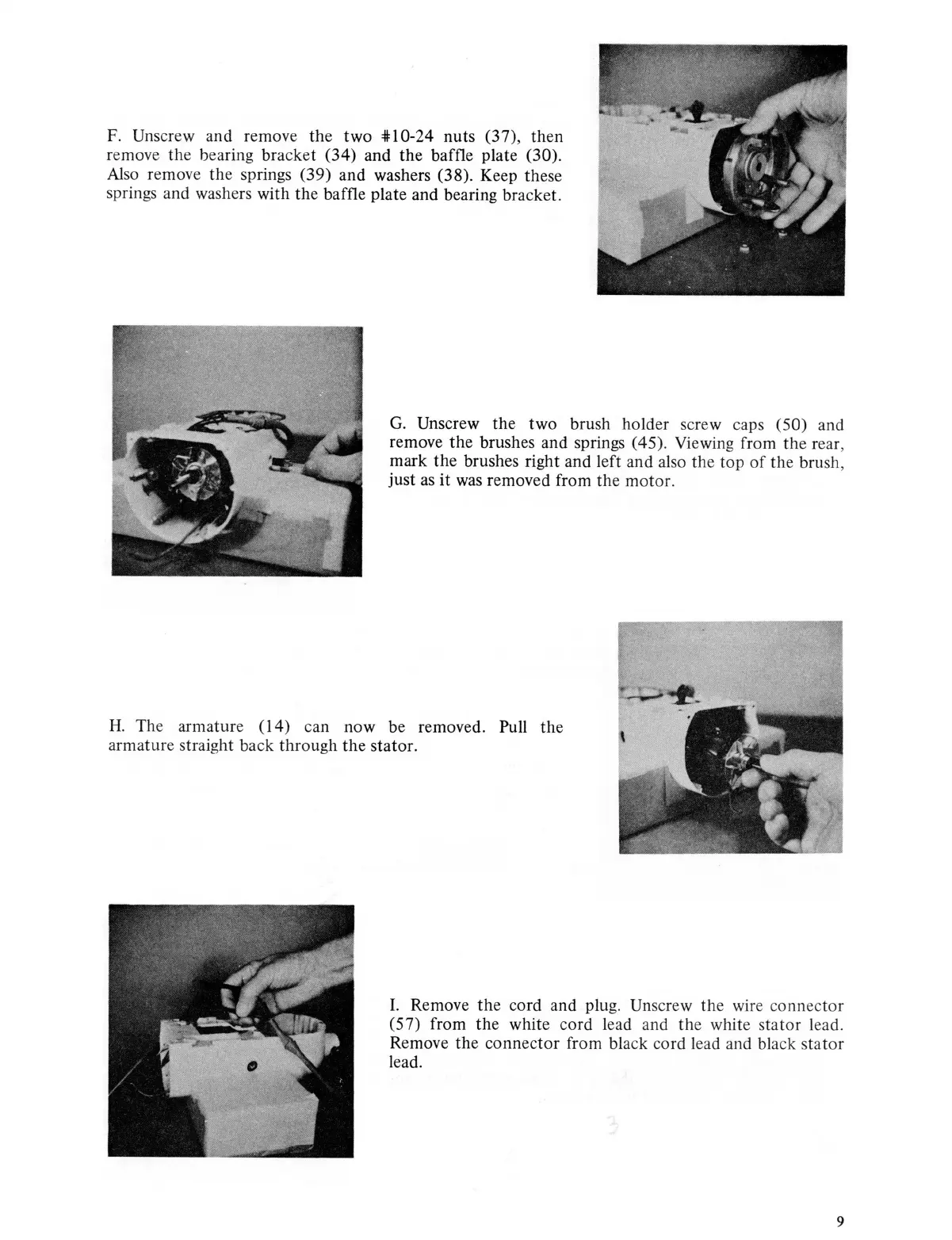

F. Unscrew and remove the
two
# 10-24
nuts (37), then
remo
ve
the bearing bracket (34) and the baffle plate
(30).
Als
o remove the springs (39) and washers (38). Keep these
sp
rin
gs
and washers with
th
e baffle plate and bearing bracket.
G.
Unscrew
the
two
brush holder screw caps
(50)
and
remove
the
brushes and springs (45).
Vi
e
win
g from
the
rear,
mark
the
brushes right and left and al
so
th
e
top
of
the brush,
just
as
it
was removed from
th
e motor.
H. The armature (14) can now be removed. Pull the
arma
tur
e straight back through
the
stator
.
I.
Remove the cord and plug. Unscrew the wire connector
(57) from the white cord lead and
th
e white stat
or
lead.
Remove the connector from black cord lead and black stat
or
lead.
9

KitchenAid K5-A Specifications

General

Model	K5-A
Type	Stand Mixer
Bowl Capacity	5 quarts
Speeds	10
Attachments Included	Flat Beater, Dough Hook, Wire Whip
Color Options	White
