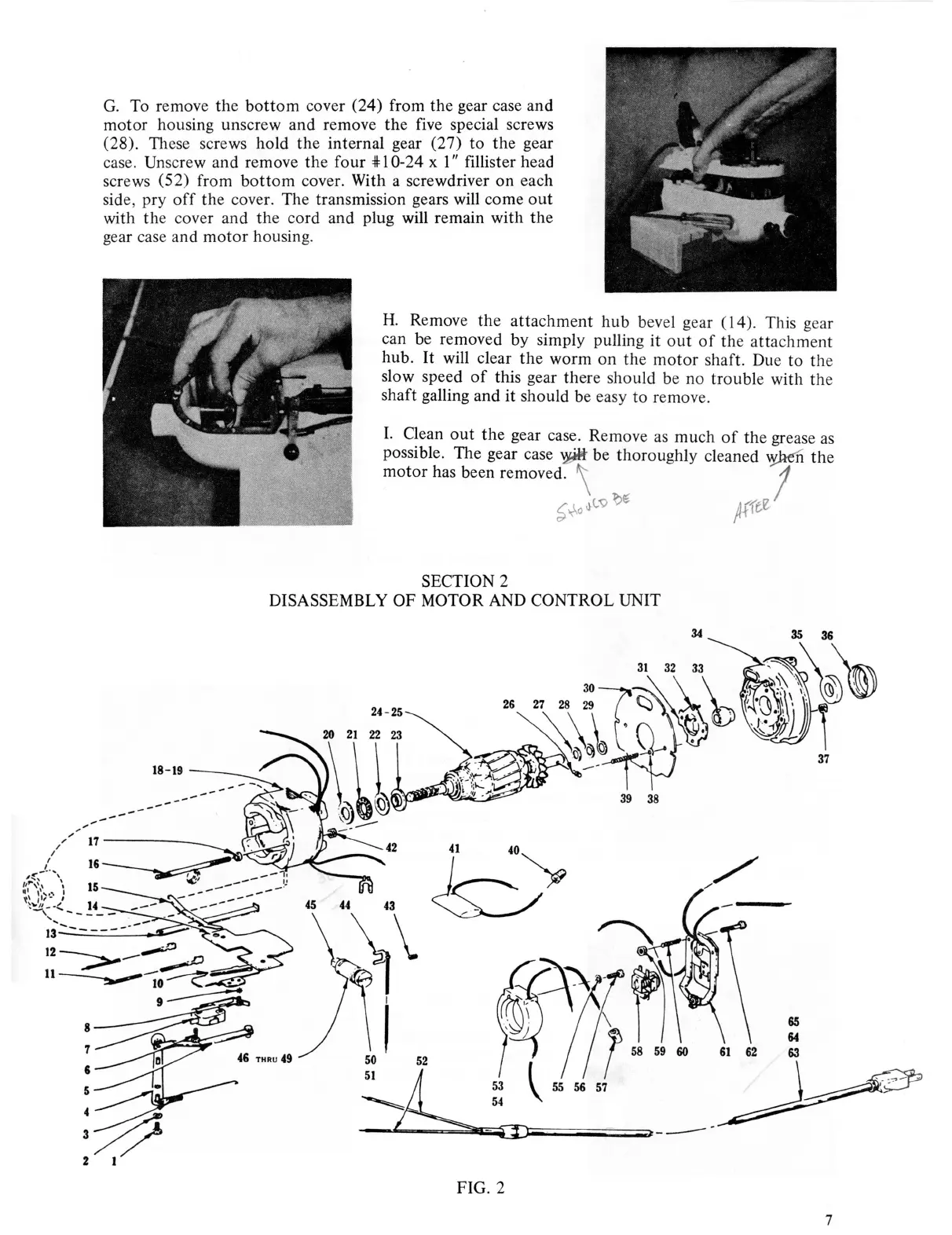

G.
To remo
ve
the
bottom
cover (24) from the gear case and
motor housing unscrew and remove the five special screws
(28).
These screws hold the internal gear
(27)
to the gear
case. Unscrew and remove the four
:11:10-24
x
1"
fillister head
screws
(52)
from
bottom
cover. With a screwdriver
on
each
side, pry
off
the
cover. The transmission gears will come
out
with
th
e cover and the cord and plug will remain with the
gear case and
motor
housing.
H.
Remove
the
attachment
hub
bevel gear
(14).
This gear
can be removed by simply pulling
it
out
of
th
e attachment
hub.
It
will clear the worm
on
the
motor
shaft. Due to
th
e
slow speed
of
this gear there should be no trouble with the
shaft galling and it should be easy to remove.
I. Clean
out
the gear case. Remove
as
much
of
th
e grease
as
possible. The gear case
~
be thoroughly cleaned
~
the
motor
has been removed. \ J
~~01}(..~
~~
fi{ft'l
SECTION 2
DISASSEMBLY
OF
MOTOR AND CONTROL UNIT
26
39 38
59
60
61
62
-
FIG. 2
65
64
63
7
