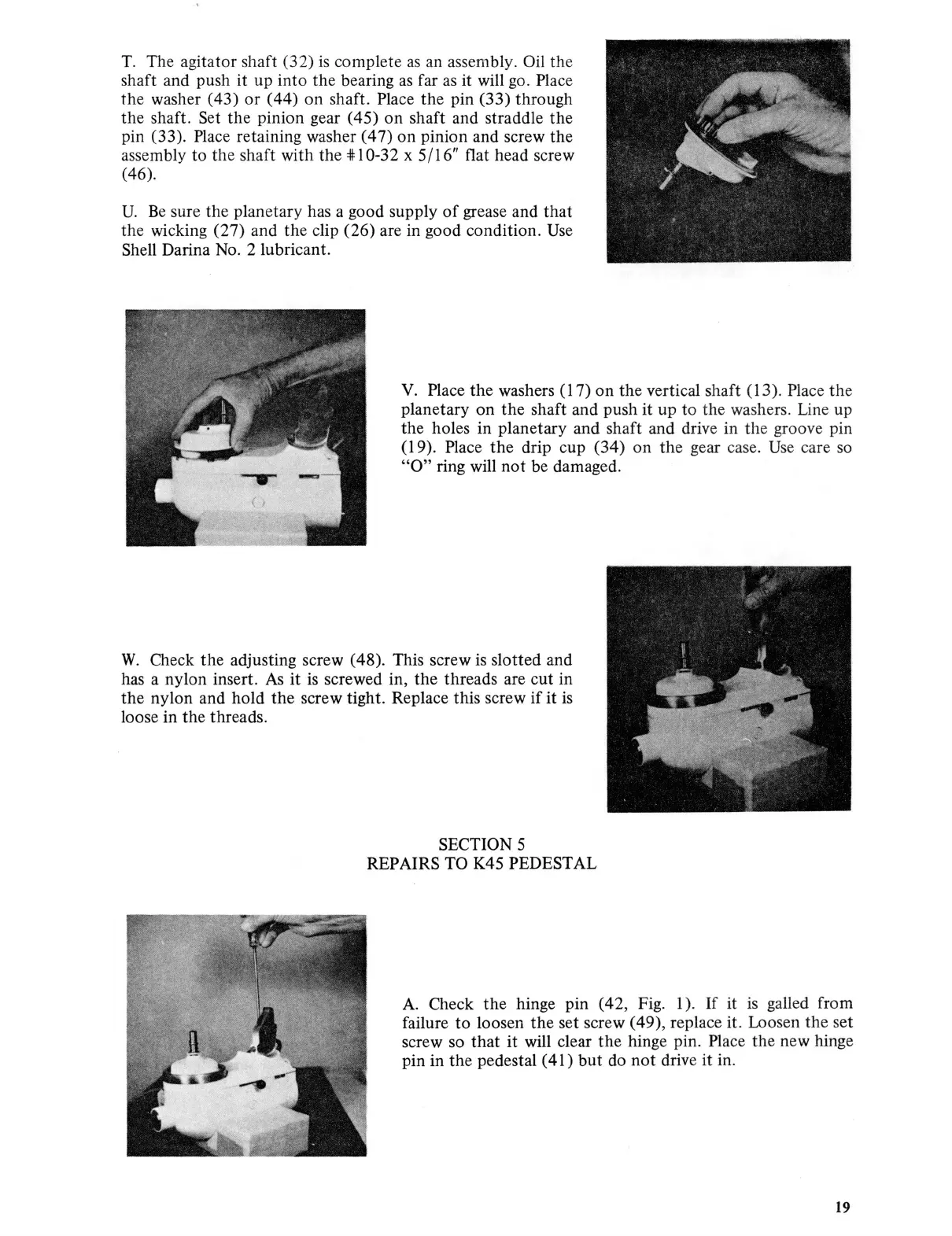

T.
The agitator shaft (32)
is
complete
as
an assembly. Oil the
shaft and push
it
up into the bearing
as
far
as
it will go. Place
the washer (43)
or
(44) on shaft. Place the pin (33) through
the shaft. Set the pinion gear ( 45)
on
shaft and straddle
the
pin (33). Place retaining washer ( 4 7)
on
pinion and screw the
assembly to the shaft with the
# 10-32 x 5 I 16" flat head screw
(46).
U.
Be
sure the planetary has a good supply
of
grease and
that
the wicking (27) and
the
clip (26) are in good condition. Use
Shell Darina No. 2 lubricant.
V. Place
the
washers (17) on the vertical shaft (13). Place
the
planetary on the shaft and push it up to the washers. Line up
the holes in planetary and shaft and drive in
th
e groove pin
(19). Place
the
drip cup (34)
on
the gear ca
se
.
Us
e care
so
"0"
ring will
not
be damaged.
W.
Check
the
adjusting screw ( 48). This screw
is
slotted and
has a nylon insert.
As
it
is
screwed in,
the
threads are cut in
the
nylon and hold
the
screw tight. Replace this screw
if
it
is
loose in the threads.
SECTION 5
REPAIRS TO K45 PEDESTAL
A. Check
the
hinge pin ( 4
2,
Fig. 1
).
If it
is
galled from
failure
to
loosen
the
set screw ( 49), replace it. Loosen
the
set
screw so
that
it
will clear
the
hinge pin. Place the new hinge
pin in the pedestal (
41)
but
do
not
drive
it
in.
19
