KitchenAid K5-A Service Manual

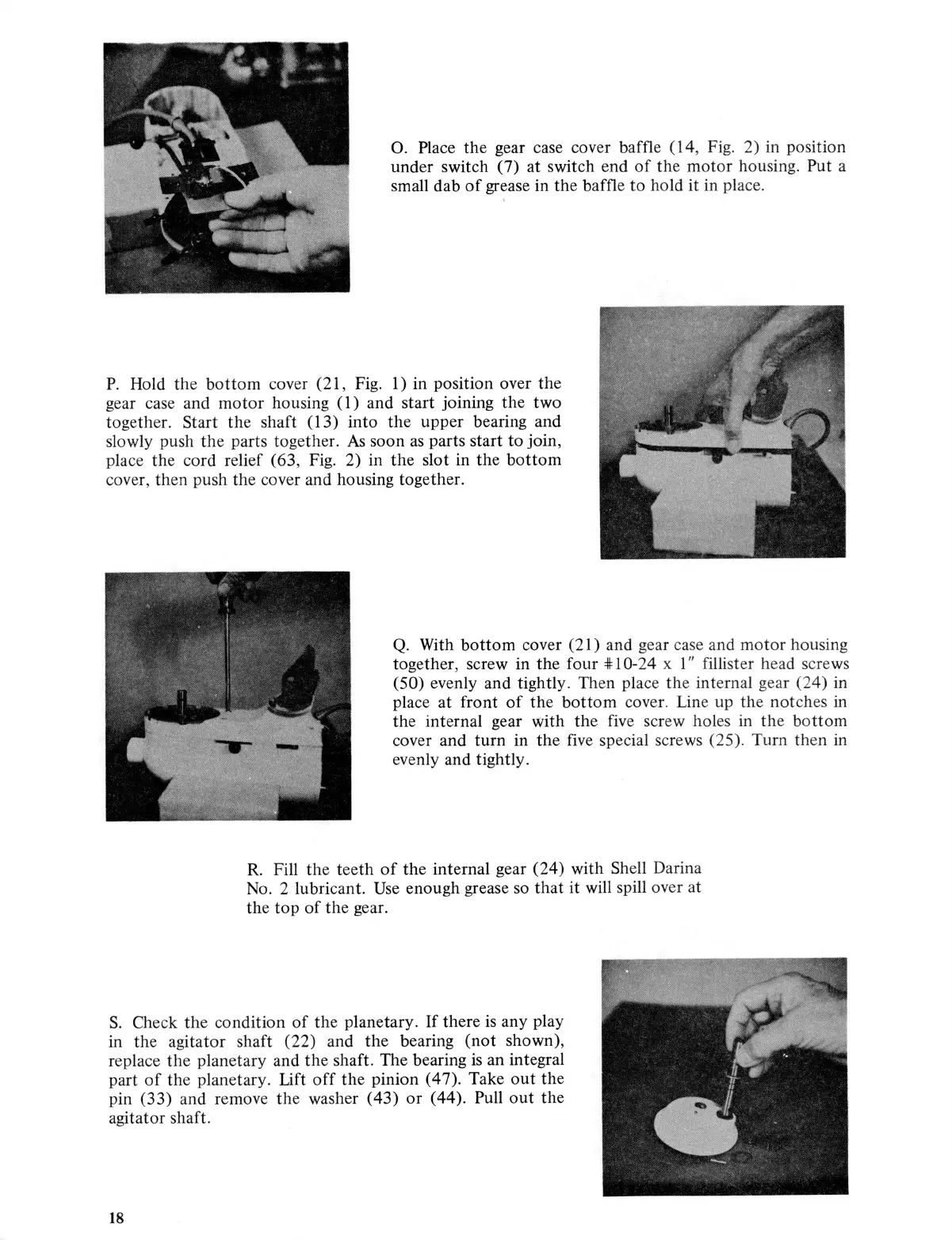

0.
Place
the
gear case cover baffle
(1
4, Fig. 2) in position
under switch (7) at switch end
of
th
e
mot
or
housing. Put a
small dab
of
grease in the baffle
to
hold it in place.
'
P. Hold the
bottom
cover (21, Fig.
I)
in position over the
gear case and
motor
housing
(I)
and start joining the two
together.
Start
th
e shaft (13) into
the
upper bearing and
slowly push
th
e parts together.
As
soon
as
parts start
to
join,
place the cord relief (63, Fig. 2) in
the
slot in the
bottom
cover,
th
en push
th
e cover and housing together.
Q.
With
bottom
cover (21) and gear case and
motor
housing
together, screw in the four
#I
0-
24
x I"
fillister head screws
(50)
evenly and tightly. Then place the internal gear (24) in
place at front
of
th
e
bottom
cover. Line up the notches in
the internal gear with
the
fiv
e screw holes in the
bottom
cover and turn in the
five
sp
ecial screws (25). Turn then
in
evenly and tightly.
R.
Fill the teeth
of
the
internal gear (24) with
Sh
ell
Darina
No. 2 lubricant.
Use
enough grease so
that
it will spill over at
th
e
top
of
the gear.
S.
Ch
eck
th
e condition
of
the planetary. If there
is
any play
in
th
e agitator shaft (22) and
the
bearing
(not
shown),
replace
the
planetary and
the
shaft. The bearing
is
an integral
part
of
the planetary. Lift
off
the
pinion ( 4 7). Take
out
the
pin (33) and remove
the
washer (43)
or
(44). Pull
out
the
agitator shaft.
18
