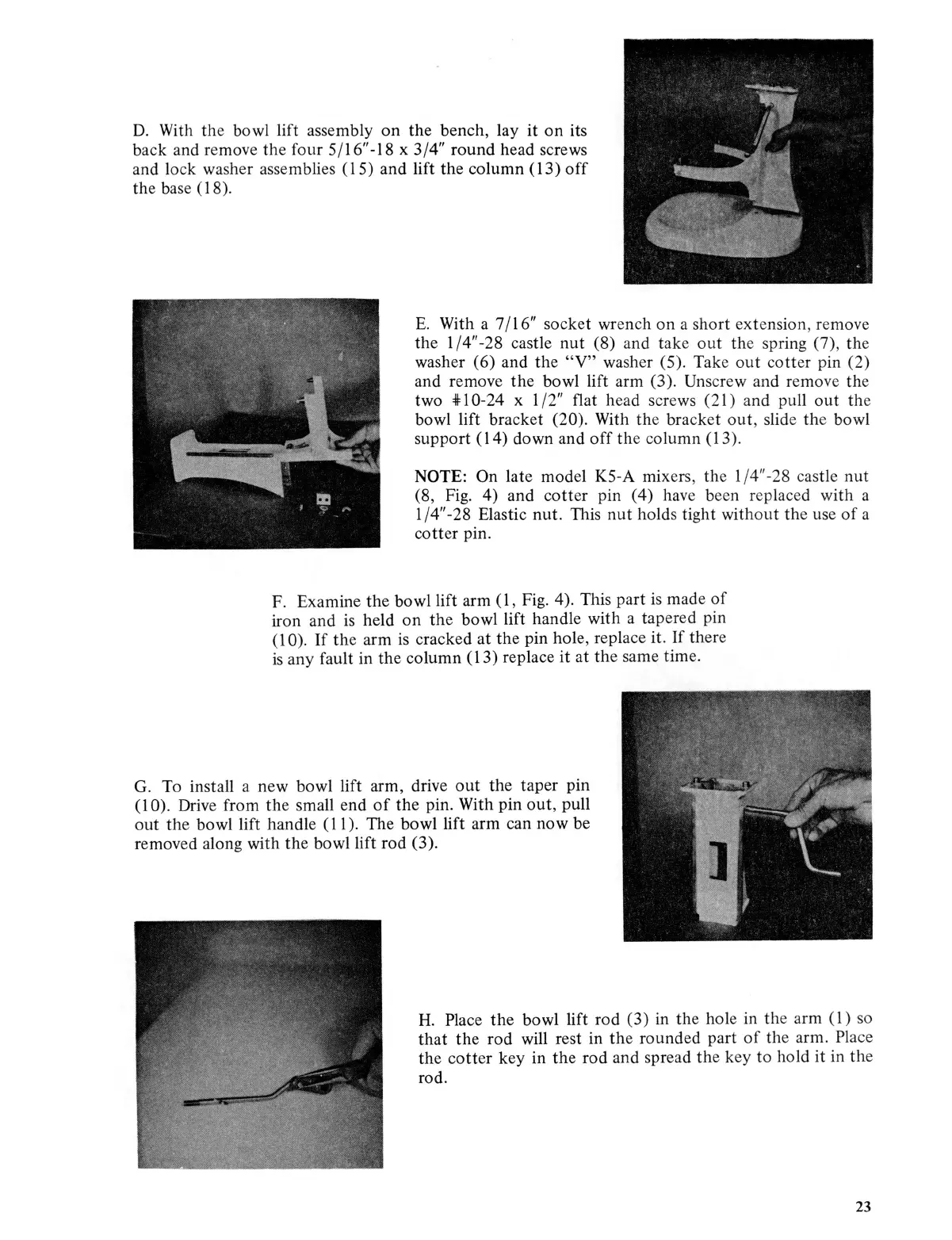

D.
With
th
e bowl lift assembly
on
the bench, lay
it
on
its
back and remove
the
four 5/16"-18 x 3/4"
round
head screws
and lock washer assemblies
(15)
and lift the column
(13)
off
the base (18).
E.
With a 7 / 16" socket wrench
on
a short extension, remove
the
1 /4" -28 castle
nut
(8) and take
out
th
e spring (7),
th
e
washer (6) and
the
"V"
washer (5). Take
out
cotter
pin (2)
and remove
the
bowl lift arm (3). Unscrew and remove the
two
# 10-24 x 1 /2" flat head screws (21) and pull
out
the
bowl lift bracket (20). With
the
bracket
out,
slide
th
e bowl
support
(14) down and
off
th
e co
lumn
(13).
NOTE: On late model K5-A mixers, the 1 /4"
-2
8 castle
nut
(8, Fig.
4)
and
cotter
pin ( 4) have been replaced
with
a
1/4"-28 Elastic
nut.
Tl1is
nut
holds tight
without
the
use
of
a
cotter
pin.
F. Examine
the
bowl lift arm (1, Fig. 4). This
part
is
made
of
iron and
is
held
on
the
bowl lift handle with a tapered pin
(1
0).
If
th
e arm
is
cracked
at
the
pin hole, replace
it
.
If
th
ere
is
any fault in
the
column (13) replace
it
at
th
e same time.
G. To install a
new
bowl lift arm, drive
out
the
taper
pin
(1
0). Drive from
the
small end
of
the
pin. With pin
out,
pull
out
the
bowl lift handle (
11
).
The bowl lift arm can now be
removed along with
the
bowl lift rod (3).
H.
Place
the
bowl lift
rod
(3) in
the
hole in
the
arm
(1)
so
that
the
rod
will rest in
th
e
rounded
part
of
the arm. Place
the
cotter
key in
the
rod
and spread the key
to
hold
it
in the
rod.
23
