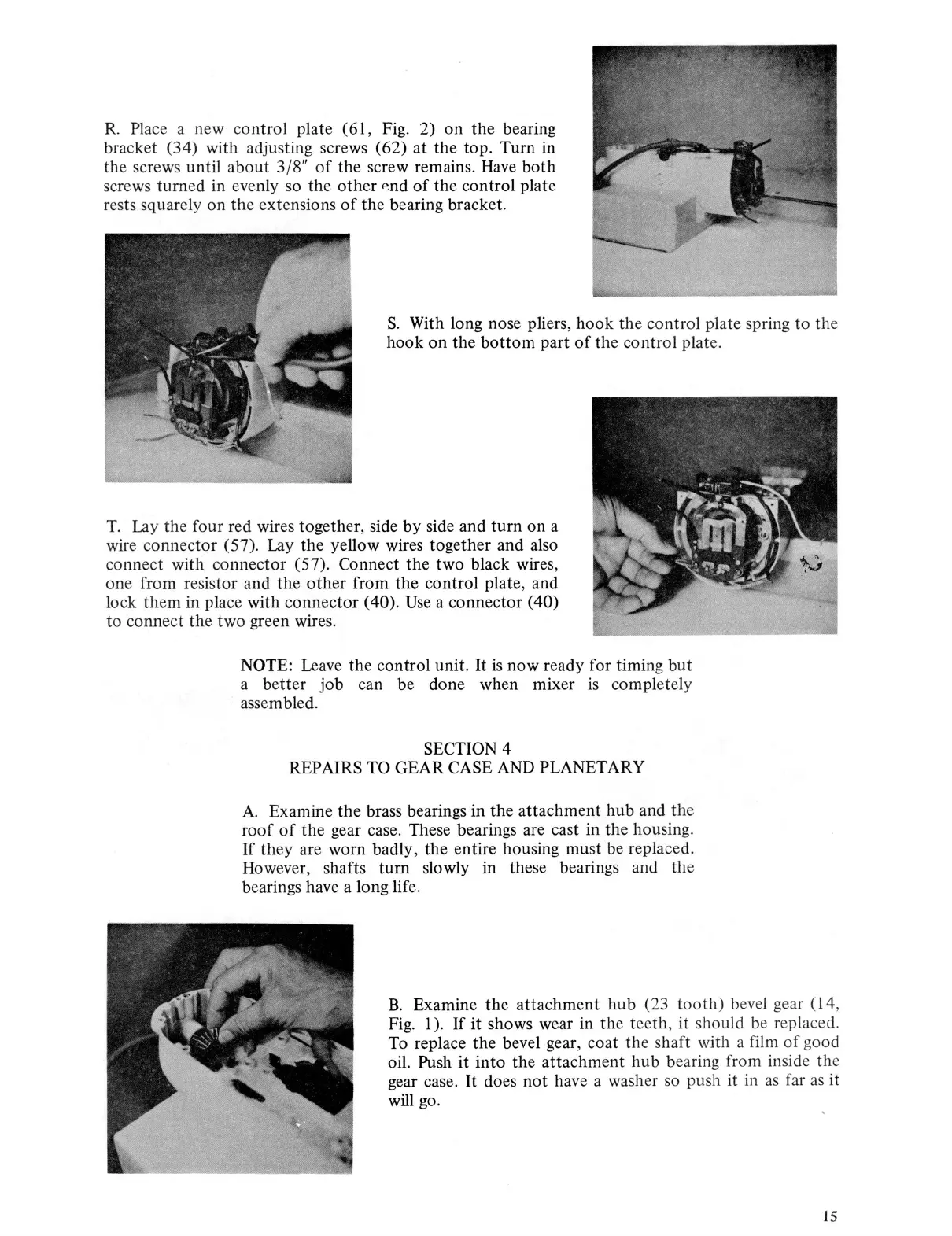

R.
Pl
ace a new control plate (61, Fig. 2) on
the
bearing
br
ac
ket
(34)
with adjusting screws
(62)
at
the top. Turn in
the screws until about
3/
8"
of
the screw remains. Have
both
screws turned in evenly so the
other
P.
nd
of
the
control plate
rests squarely on
the
e
xt
ensions
of
the bearing bracket.
S.
With long nose pliers,
hook
the control plate spring to the
hook
on
the
bottom
part
of
the control plate.
T.
Lay the four red wires together, side
by
side and
turn
on a
wire connector
(57).
Lay
the
yellow wires together and also
connect with connector
(57).
Connect
the
two black wires,
one from resistor and the
other
from the control plate, and
lo
ck
them
in place with connector ( 40). Use a connector (
40)
to connect
the
two green wires.
NOTE: Leave
the
control unit.
It
is
now
ready for timing
but
a
better
job
can be done when mixer
is
completely
assembled.
SECTION
4
REPAIRS TO GEAR CASE AND PLANETARY
A. Examine
the
brass bearings in the attachment
hub
and
th
e
roof
of
the
gear case. These bearings are cast in
th
e housin
g.
If
th
ey are worn badly, the entire housing must be replace
d.
However, shafts turn slowly in these bearings and the
bearings have a long life.
B.
Examine
the
attachment
hub (23
tooth)
bevel gear
(14
,
Fig. 1 ). If it shows wear in
th
e
teeth
, it should be replaced.
To replace the bevel gear, coat
the
shaft with a film
of
good
oil. Push
it
into
the attachme
nt
hub
bearing from inside the
gear case.
It
does
not
have a washer so push it
in
as
far
as
it
will
go.
15
