KitchenAid KBFC42FS - Refrigerator and Freezer Component Locations

4-2

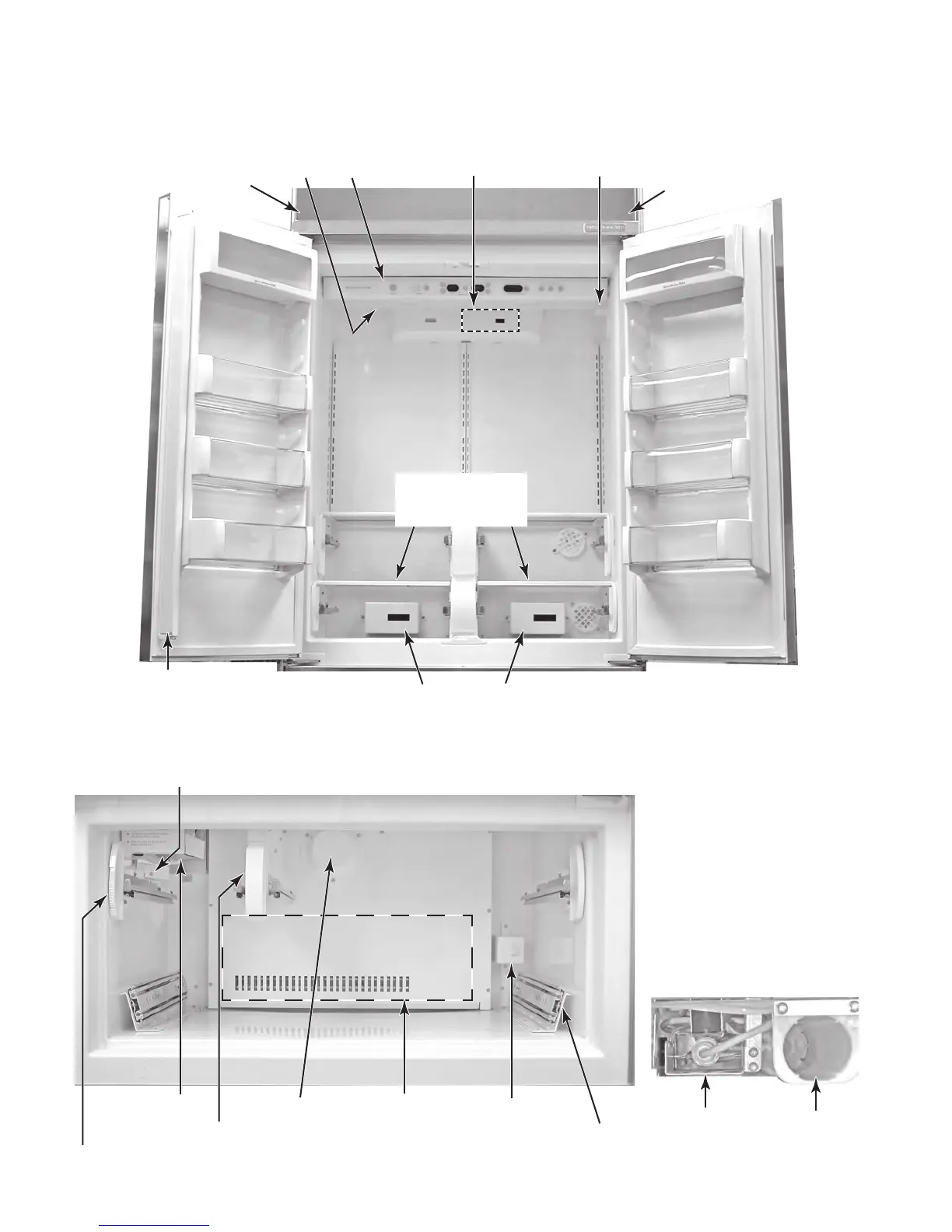

Refrigerator Compartment Components
Refrigerator
Thermistor
Heated Flipper
Mullion
User Interface &
Refrigerator Lighting
Freezer Compartment Components & Water Valve / Filter Housing
Refrigerator
Motorized Air Door
Refrigerator
Temp-Controlled
Drawer Covers
Temp-Controlled
Motorized Air Doors
Drawer Switch
Drawer Slide
Evaporator,
Bimetal, &
Defrost Heater
Evap. Fan Motor
Ice Maker & Heater
Water Valve
Filter Housing
Refrigerator
Door Switch
(Behind Top Grille)
Refrigerator
Door Switch
(Behind Top Grille)
Ice Maker On/Off Switch
Ice Maker Optics Emitter Board
Ice Maker Optics Receiver Board
