Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1.
Unplug refrigerator or disconnect power.
2. Remove the freezer drawer (see page
4-20 for the procedure).
3. Remove the ice bin from the freezer.

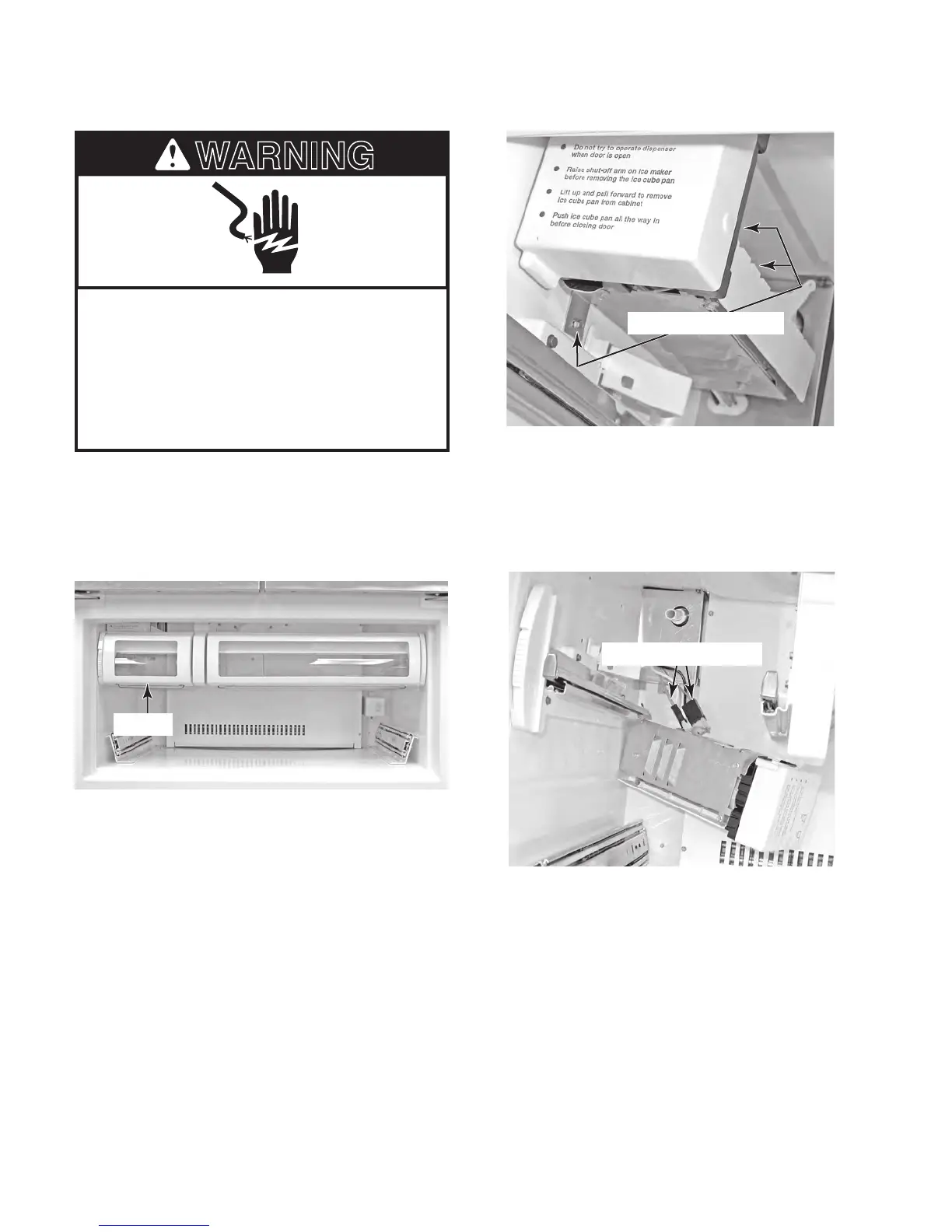

REMOVING THE ICE MAKER & FILL TUBE HEATER
b) Disconnect the two ice maker connec-
tors from the wire harness and remove
the ice maker.
NOTE: T
o replace the thermal fuse inside the
ice maker, refer to Job Aid #4316835, R-66.
4. T
o remove the ice maker:
a) Remove the bottom bracket screw
and the two top ice maker screws and
lower the ice maker (see the top right
photo).
Ice Bin
Ice Maker Screws (3)
Ice Maker Connectors
To Next Page
