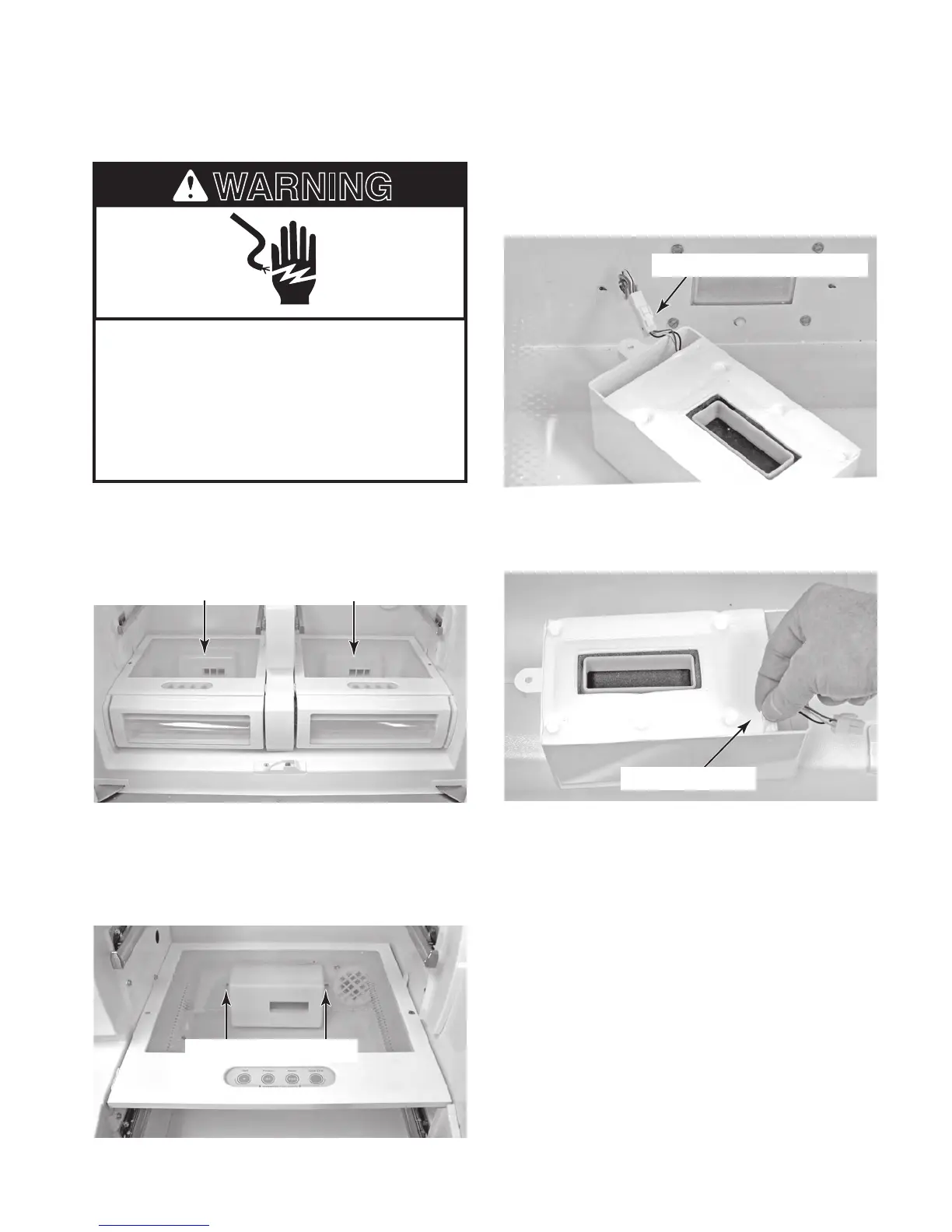

REMOVING A REFRIGERATOR TEMP-CONTROLLED
MOTORIZED AIR DOOR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1.
Unplug refrigerator or disconnect power.
2. Remove the temp-controlled drawer for
the motorized air door you are removing.
6. Peel off the adhesive covering from over
the motorized air door, and remove the
air door.
5. Disconnect the motorized air door wire
connector from the wire harness, and re-
move the air door
.
3. Remove the two hex-head screws from
the motorized air door cover.
4. Pull the motorized air door assembly for-
ward and turn it over
.
Temp-Controlled Motorized Air Doors
Air Door Cover Screws
Motorized Air Door Connector
Adhesive Covering
To Next Page
