4-19

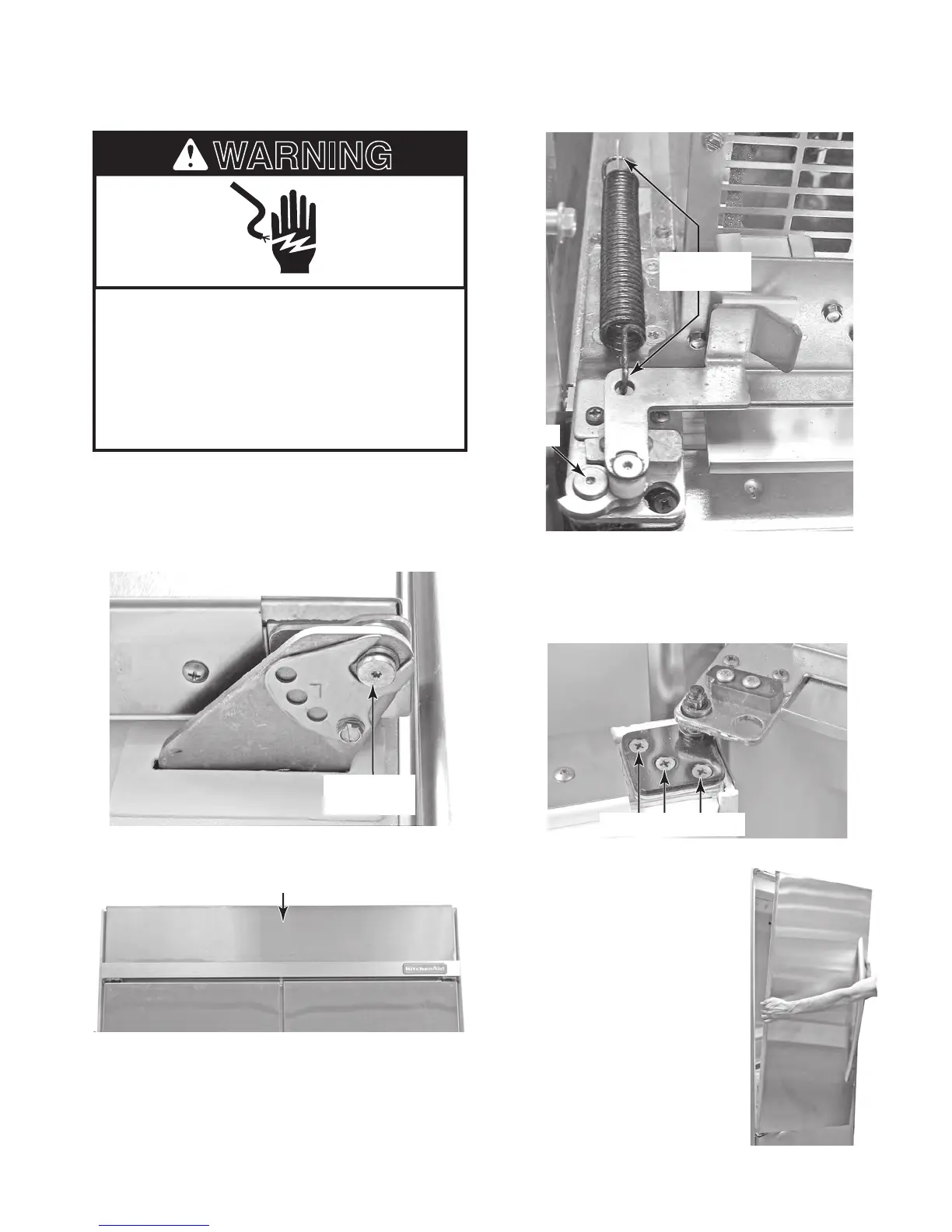

REMOVING A REFRIGERATOR DOOR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1.
Unplug refrigerator or disconnect power.
2. Pull the freezer drawer open and remove
the T-15 stop screw from the bottom
hinge pin.
3. Lift the top grille and remove it.
Bottom Stop
Screw
Top Grille
4. With the door closed, unhook the door
spring and remove it (see the top right
photo).
5.
Remove the screw from the door stop.
IMPORTANT NOTE: Support the door in the
next step so that it does not fall.
6. Open the door and remove the three
screws from the top hinge leaf.
Screw
Top Hinge Screws
7. Pull the top of the door
forward, and remove
the top hinge pin bracket
and spacer. Lift the door
so the bottom hinge pin
is free of the hinge plate,
and remove the door.
Ends Of
Door Spring
To Next Page
