KitchenAid KBFC42FS - Removing Freezer Drawer Slides

4-21
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1.
Unplug refrigerator or disconnect power.
2. Remove the freezer drawer (see page
4-20 for the procedure).
WARNING

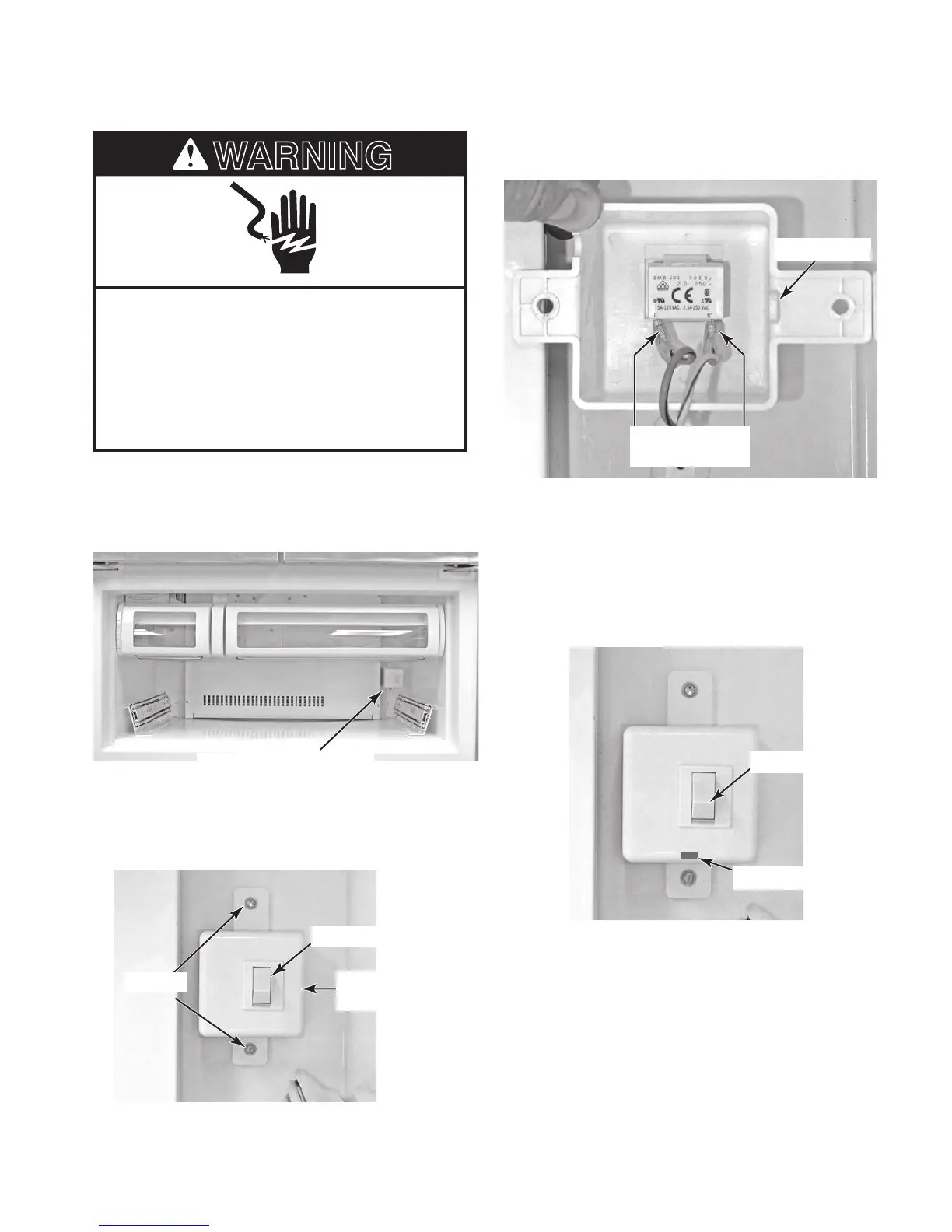

REMOVING THE FREEZER DRAWER SWITCH
4. Disconnect the two wires from the freezer
drawer switch terminals.
Freezer Drawer Switch
5. Push the freezer drawer switch out of the
housing cutout.
R
EASSEMBLY NOTE: When you install the
switch in the housing, make sure that you po-
s
ition it with the locating tab and actuator as
shown.
Freezer Drawer
Switch Wires
Locating Tab
Actuator
3. Remove the two hex-head screws from
the freezer drawer switch housing and
remove the housing.
Freezer Drawer
Switch Housing
Screws
Actuator
Locating Tab
