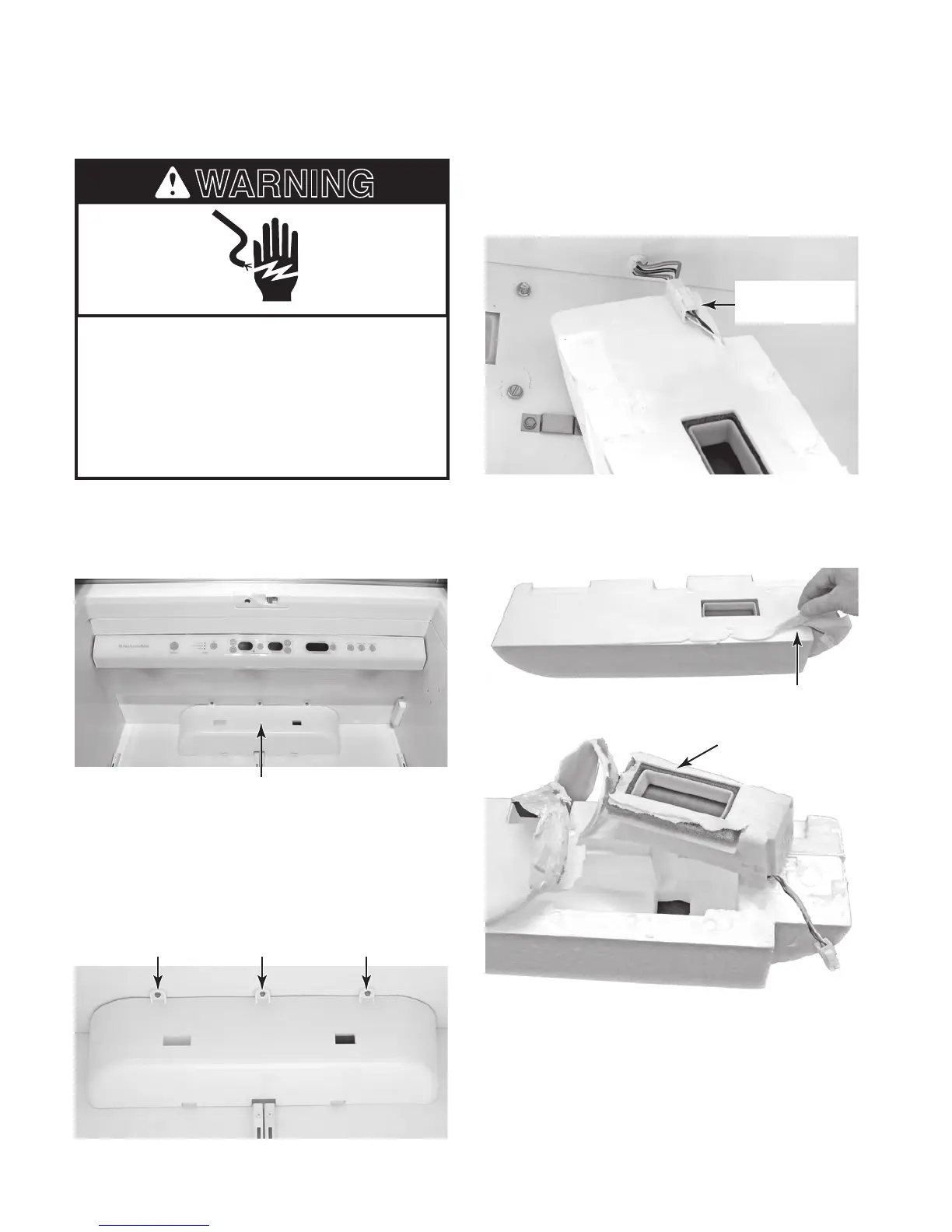

REMOVING THE REFRIGERATOR
MOTORIZED AIR DOOR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1.
Unplug refrigerator or disconnect power.
2. If needed, remove the food and racks
from the upper shelf.
5. Unlock and disconnect the motorized air
door connector from the wiring harness
and remove the air door and cover.
6. Peel off the adhesive covering from over
the motorized air door, and remove the
air door from the cover.
Motorized Air Door
3. Remove the three hex-head screws from
the motorized air door cover.
4. Pull down on the motorized air door cover
to unhook it from the rear clips and turn it
over.
Motorized Air Door Cover Screws
Motorized Air
Door Connector
Adhesive Covering
Refrigerator
Motorized Air Door
