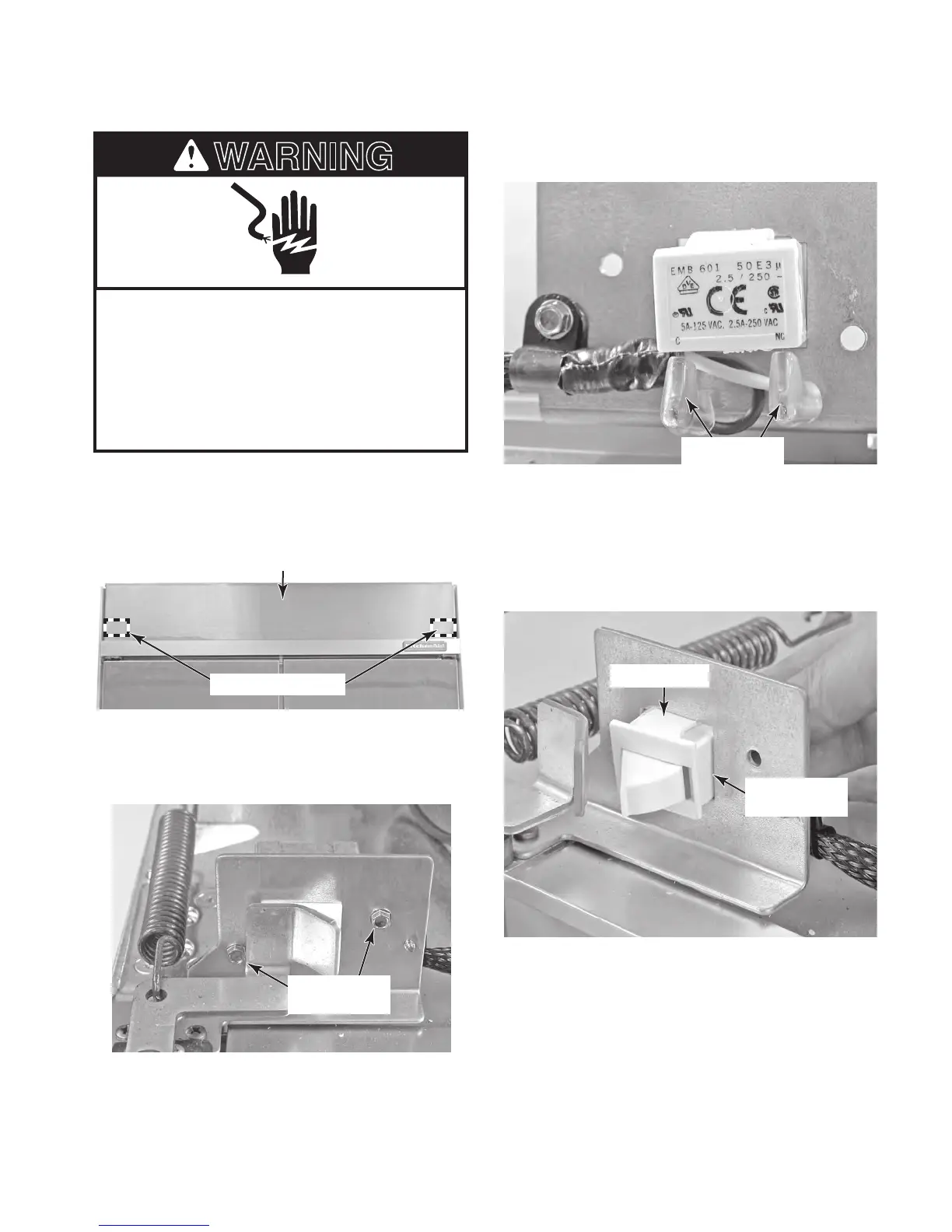

REMOVING A REFRIGERATOR DOOR SWITCH
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
3.
Remove the two hex-head screws from
the door switch cover and remove the
cover.
WARNING
1. Unplug refrigerator or disconnect power.
2. Lift the top grille off the pins at each end
and remove the grille.
Top Grille
4. Disconnect the two wires from the door
switch terminals.
Door Switch
Cover Screws
5. Fully open the refrigerator door.
6. Push the bottom of the door switch out as
far as it will go, then press down on the
top locking tab, and push the switch out
of the bracket.
Door Switch
Wires
Door Switches
Push Out
Door Switch
Locking Tab
