KitchenAid KBFC42FS - Removing Ice Maker Optics Emitter Board

4-25

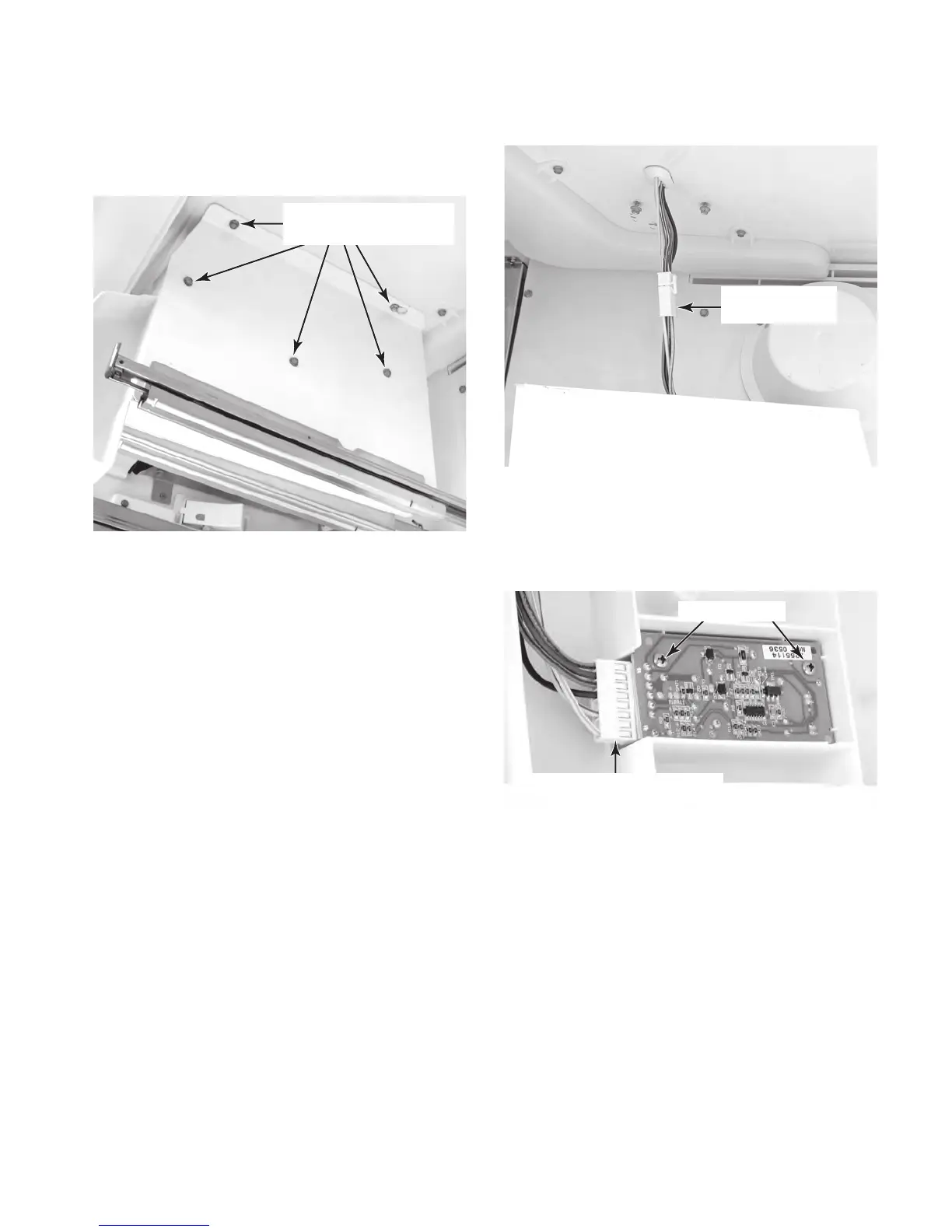

6. To remove the optics receiver board:
a) Remove the five hex-head screws
from the right divider mounting plate,
and remove the plate and slide.
b) Disconnect the wire connector from
the receiver board wire connector.
Right Divider Mounting
Plate Screws
c) Disconnect the wire connector from
the receiver board pins.
d)
Remove the mounting screws from the
receiver board and remove the board.
Receiver Board
Wire Connector
Receiver Board Connector
Board Screws
