KitchenAid KFGS306VSS - Page 27

2-17
Use the following charts to match the correct
gas orifice spud with the burner location and
model being converted.
Natural Gas Orice Spud Chart
Burner Models
Burner RatingStamp (A) Size
6,000 BTU 110 1.10 mm
7,000 BTU 118 1.18 mm
9,100 BTU 134 1.34 mm
10,000 BTU 142 1.42 mm
12,000 BTU 155 1.55 mm
15,000 BTU
Outer
Inner
168
10
1.68 mm
0.5*0.82 mm
18,000 BTU
Outer
Inner
184
10
1.84 mm
0.5*0.82 mm
20,000 BTU
Outer
Inner
193
10
1.93 mm
0.5*0.82 mm
A. Size stamp
Model
No.
Right
front
Right
rear
Center
(outer)
Center
(inner)
Left
front
Left
rear
KFGS306 142 118 168 10 134 110
KFGS366 142118 184 10 142 110
KFGU706 155 118 168 10 134 110
KFGU766 142 118 193 10 155 110
A
High Altitude Conversions
IMPORTANT: You must convert LP gas with
LP gas high altitude or Natural gas with Natu-
ral gas high altitude. If you need to convert
LP gas to Natural gas high altitude or Natural
gas to LP gas high altitude you must convert
the pressure regulator, for this you must follow
steps 1, 2, and 3 of the respective conversion
that you need.
Natural Gas Orice Spud Chart for High Altitude Conversion
Burner Models
Burner RatingStamp (A) Size
6,000 BTU105 1.05 mm
7,000 BTU118 1.18 mm
9,100 BTU128 1.28 mm
10,000 BTU142 1.42 mm
12,000 BTU148 1.48 mm
15,000 BTU
Outer
Inner
153
10
1.53 mm
0.5*0.82 mm*
18,000 BTU
Outer
Inner
173
10
1.73 mm
0.5*0.82 mm*
20,000 BTU
Outer
Inner
183
10
1.83 mm
0.5*0.82 mm*
A. Size stamp
Model
No.
Right
front
Right
rear
Center
(outer)
Center
(inner)
Left
front
Left
rear
KFGS306 142 118 153 10 128 105
KFGS366 142 118 173 10 142 105
KFGU706 148 118 153 10 128 105
KFGU766 142 118 183 10 148 105
A

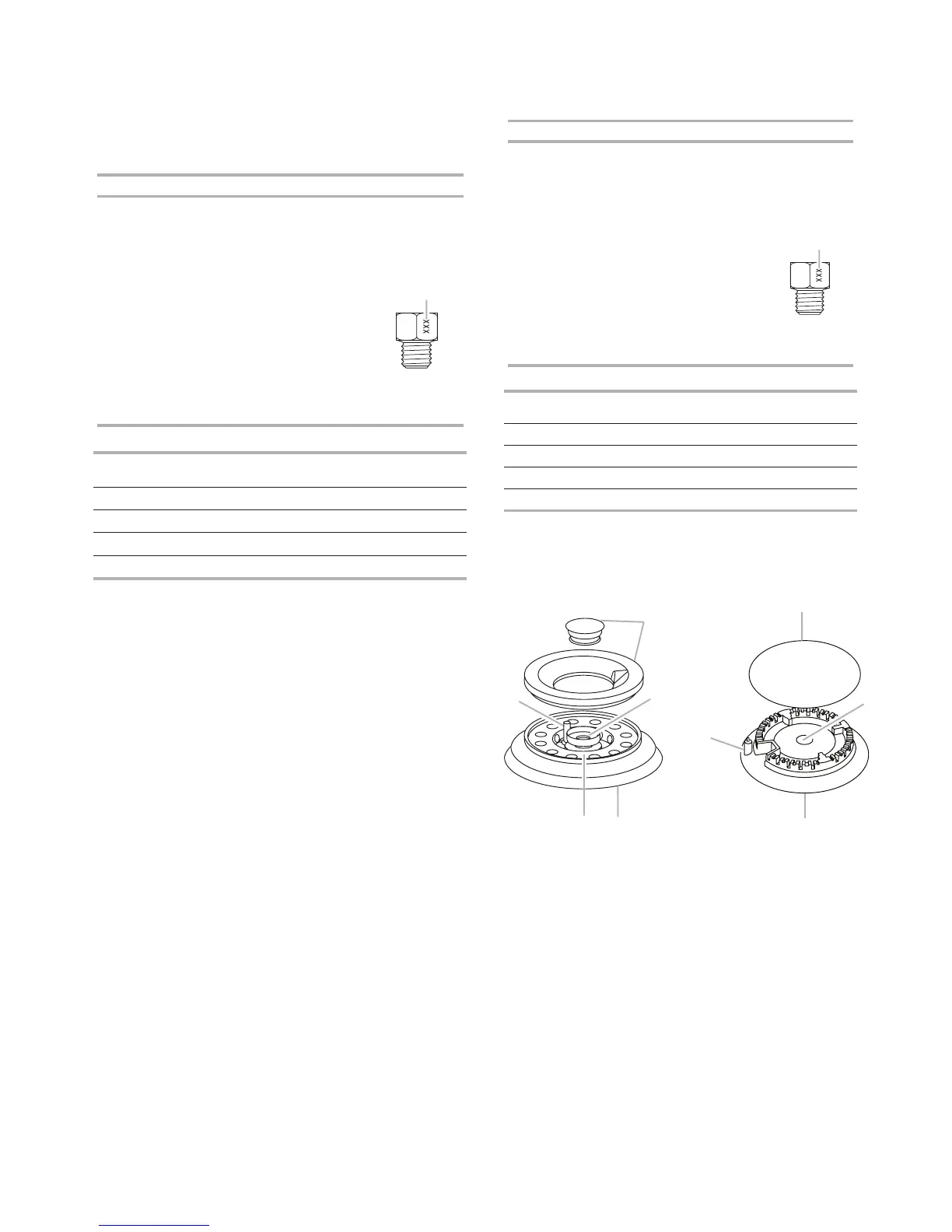

5. Remove all burner caps and burner bases.
If necessary, remove the burner ring.
A. Burner cap
B. Igniter electrode
C. Burner base
D. Gas tube opening
E. Burner ring
B
D
C
E
A
A
B
C
D
