KitchenAid KFGS306VSS - Page 28

2-18

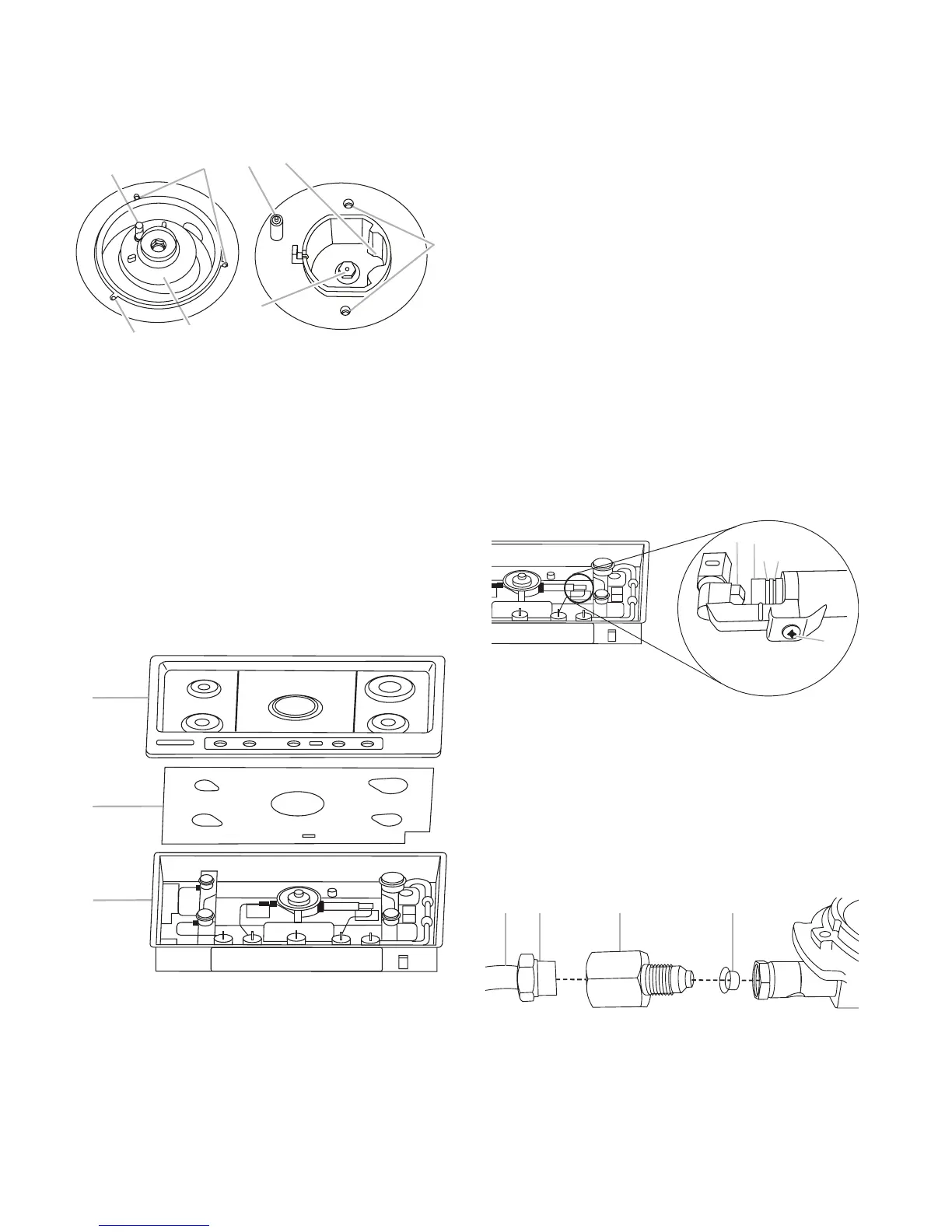

6. Using a T20 TORX® screwdriver, remove
theoriceholderscrews(C).
A. Igniter electrode
B. Orice spud
C. Orice holder screws
D. Orice holder
A
A
B
D
C
B
C
C
7. On KFGU models only, lift the front part of
the cooktop and unhook the wire harness
to detach it from the glass control panel of
the metal cooktop.
On all models, remove the metal cooktop
and the sheet of insulation from the cooktop
base.
A. Metal cooktop
B. Sheet of insulation
C. Cooktop base
B
C
A
8. To Convert Right or Left Burners:
Insert 7.0 mm nut driver down onto the gas •
oricespudandremovebyturningitcoun-
terclockwise and lifting out.
Setgasoricespudaside.•
ReplacewithcorrectNaturalgasoricespud.•
SeetheNaturalGasOriceSpudCharts.
9. To Convert Center Burners:
Use 10.0 mm wrench to loosen and •
removetheorice.
ReplacewithcorrectNaturalgasoricespud.•
SeetheNaturalGasOriceSpudCharts.
Use Phillips screwdriver to loosen the venturi •
screw. Slide the brass venturi into the injec-
tor, stop atthe rst groove (D) for Natural
gas conversions. Securely tighten the venturi
screw.
A. Orice
B. Venturi
C. Second Groove (16.0 mm
LP gas setting)
D. First groove (12.0 mm Natural
gas setting)
E.Venturi screw
C
D
A
B
E
Use 15.0 mm wrench to loosen the nut secur-•
ingthetubetotheoricepack.Removethe
tubefromtheoricepack.
A. Tu be
B. Attachment nut (15.0 mm)
C. Adapter nut (17.0 mm)
D. Orice spud
C
D
A
B
Use 17.0 mm wrench to loosen and remove •
theoricepack.
