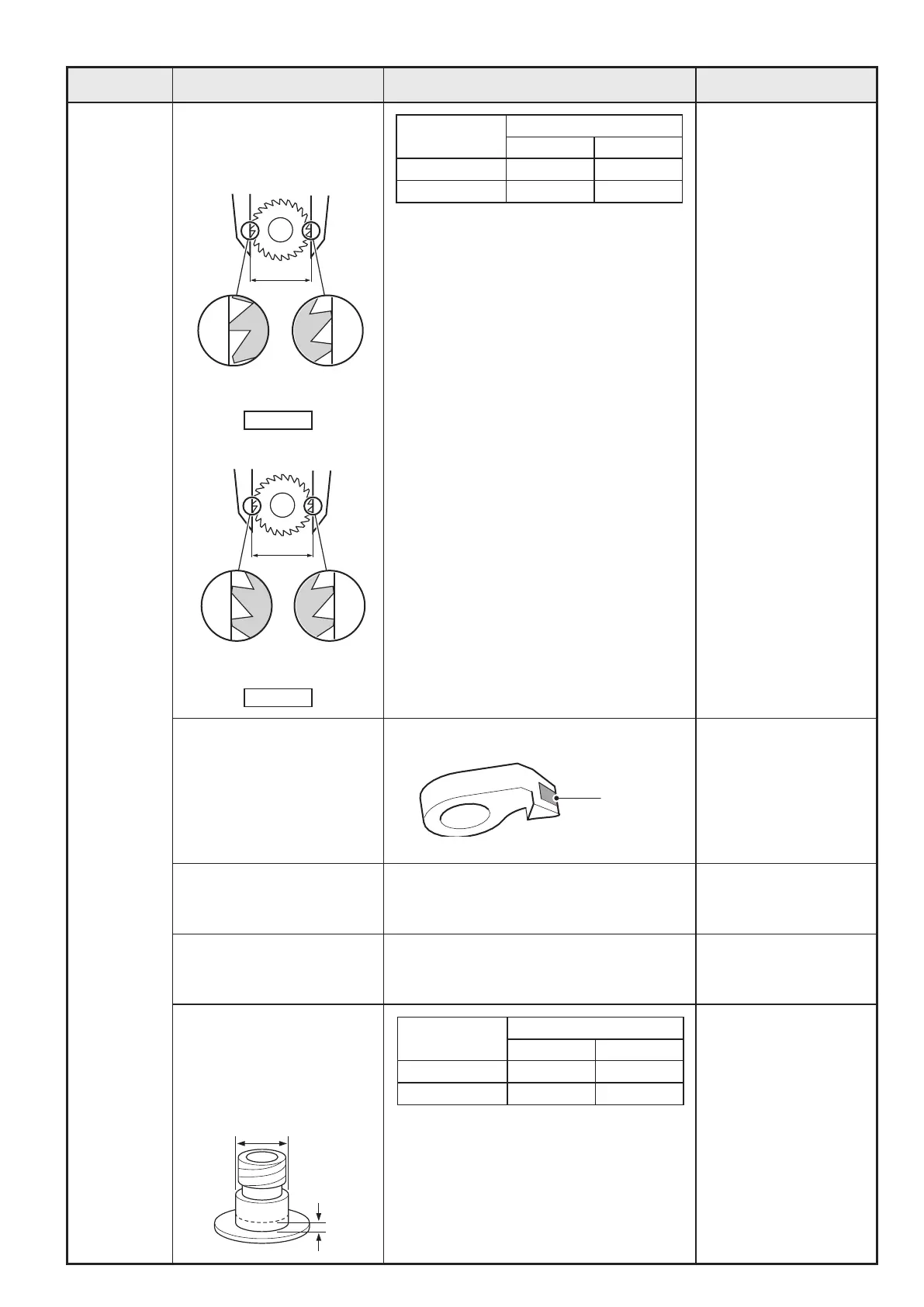

Item Method Discard limit or criteria Action
Braking
mecha-
nism
Measure the abrasion of the
Ratchet Disc with a vernier
caliper.
Replace the Ratchet
Disc.
Visually check Pawl. • The Pawl should not be worn with a step on
the tip.
Replace the Pawl.
Visually check Pawl Spring
Assembly.
• Should be free of deformations, aws,
breaks or poor spring.
Replace Pawl Spring
Assembly.
Visually check corrosion
(rust).
• Each part should be free of excessive
corrosion (rust).
Replace any rusty part.
Measure the abrasion of the
Friction Disc in contact with
the Bushing (as shown in the
following gure with a dotted
line) with a vernier caliper.
Replace Friction Disc.
D
One point
contact
Two-point
contact
D
4mm
Rated load (t)
Dimension D (mm)
Standard Limit
0.25 33.8 32.4
0.5
44.3 42.9
Abrasion
D
Two- point
contact
Two-point
contact
250kg
500kg
Rated load (t)
Dimension D (mm)
Standard Limit
0.25 16.4 15.6
0.5
21.9 21.1
