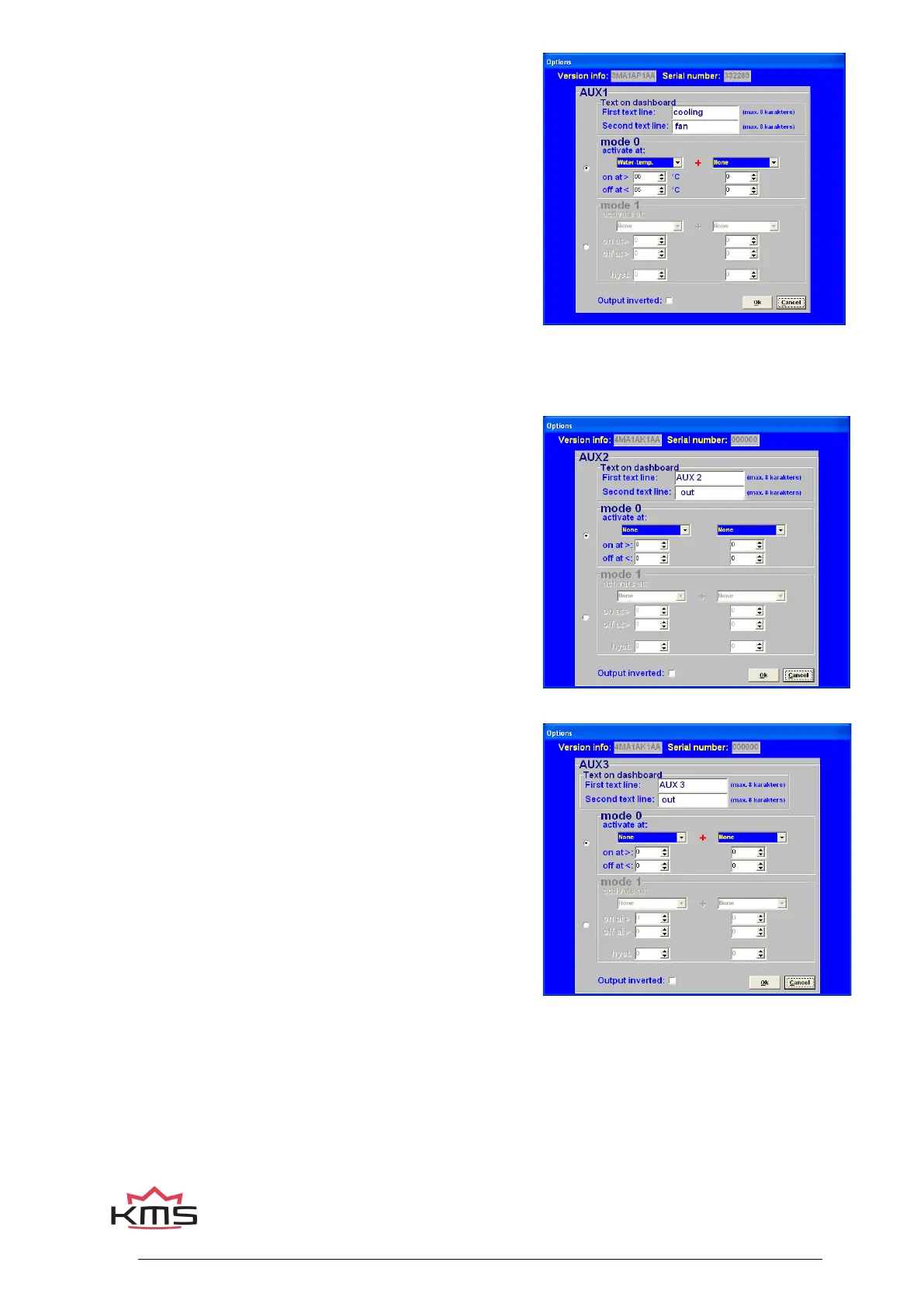

The system features three extra outputs. These extra
outputs can be separately activated via direct ground (up
to 1A) or via relay. They can be used for shift indicators,
water injection, cooling fan, Vtec, etc. There is a choice of
several combinations of input quantity to activate the AUX
output. The AUX output is activated when both the values
set are exceeded. If 'none' is selected, this channel will be
ignored.
A hysteresis can be set for each AUX output. This means
that the switching ON value can be set higher than the
switching OFF value. The advantage of this is that the
output does not need to be switched on and off
unnecessarily. An example is a cooling fan that activates at
90 degrees and deactivates at 85 degrees. You can name
these AUX outputs freely with a maximum of 2 x 8
characters.
3.2.4.1.13 AUX 2
See section 3.2.4.1.11 AUX 1
3.2.4.1.14 AUX 3
See section 3.2.4.1.11 AUX 1
