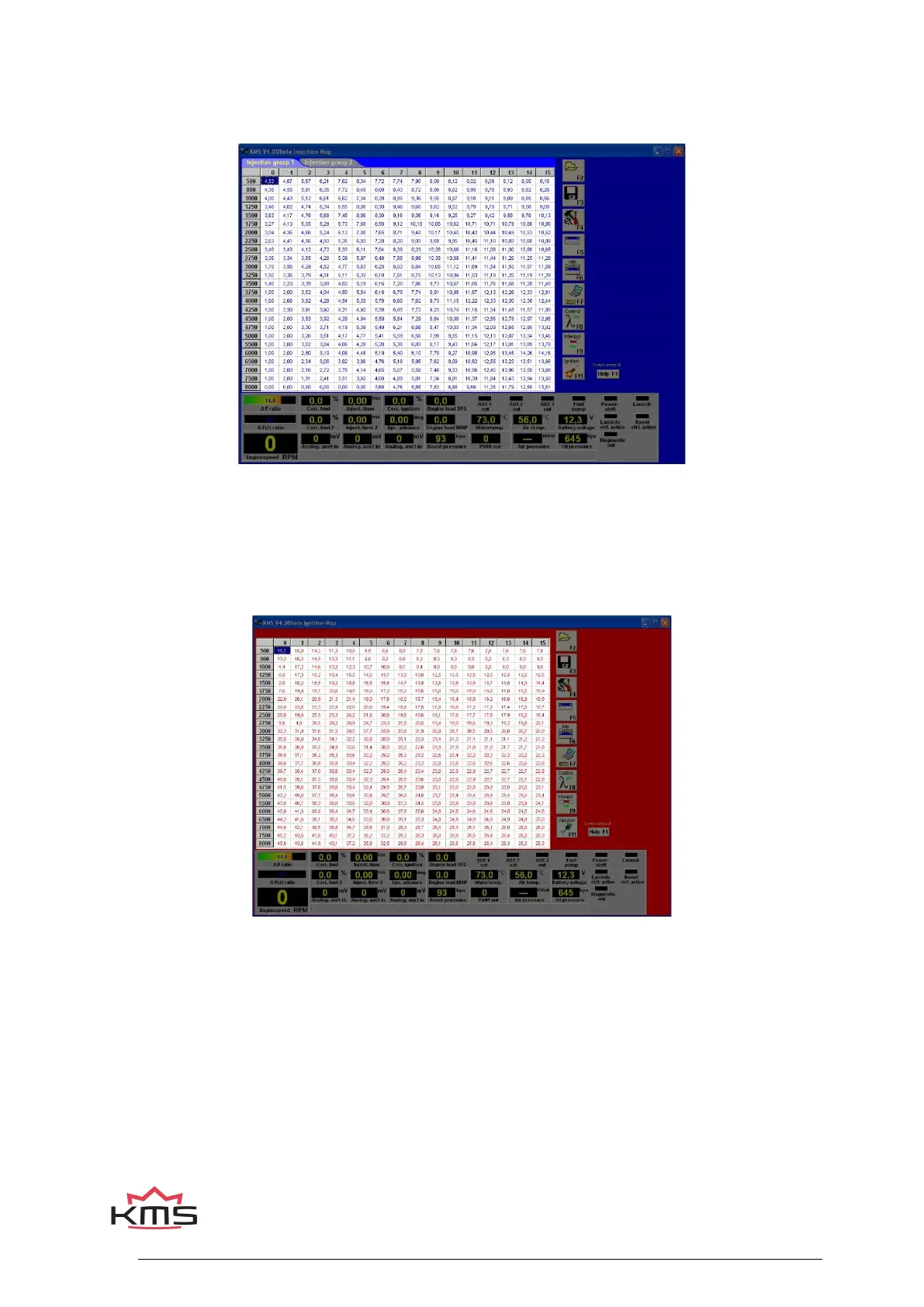

3.1.1 The injection characteristic diagram
In the injection characteristic diagram, figures can be entered that indicate the injector opening
time per injection in ms. This means that at any engine speed and any engine load, the desired
quantity of fuel can be injected.
3.1.2 The ignition characteristic diagram
In the ignition spreadsheet, figures can be entered that indicate the ignition advance (in crankshaft
degrees before TDC). This means that for any engine speed and any engine load, the desired
ignition moment can be entered.
