KMS MP25(M)/MA25(M) manual Version 4.2
42
3.2.4.1.16 Remarks

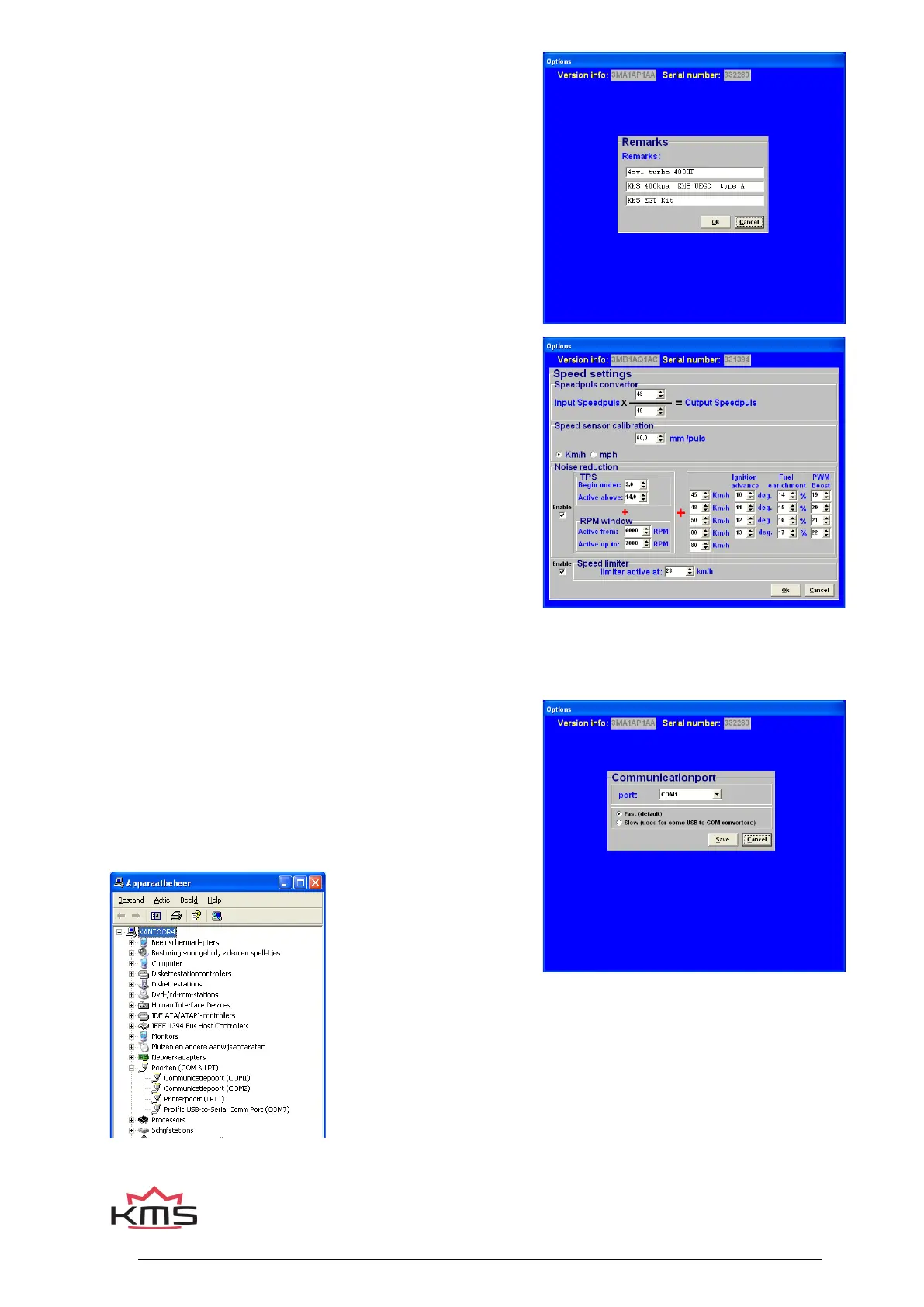

This is room for making notes, for instance; engine
specifications.
3.2.4.1.17 Speed settings
Not available for MP25(M) and MA25(M). MP24(i) only.
3.2.4.1.18 Communication port
Select the required communication port to which the ECU
is connected, and save using the 'Save' button.
The system only has a serial port connection. If you want to
use this ECU on newer PC’s with only USB then you will
need an USB to serial converter.
In this example on the left (start→control
panel→system→device
manager) you can see that the USB-to-serial connection has
set to COM 7.
(Make sure that USB serial
converter will be
dedicated to a COM
connection between 1 and
8. If this number exceeds
8, sometimes the converter will not function properly. In the
advanced settings of the COM port, you can change the port
number of your converter to a number between 1 and 8).
