3.3 The communication bar
The horizontal bar at the bottom of the screen is the communication bar. If the system is connected
to the COM or USB port of the PC and the power supply to the system is on, function key F10 can be
used to activate the communication.
There are nine check lights in the communication bar, which indicate the status of the relevant
outputs.

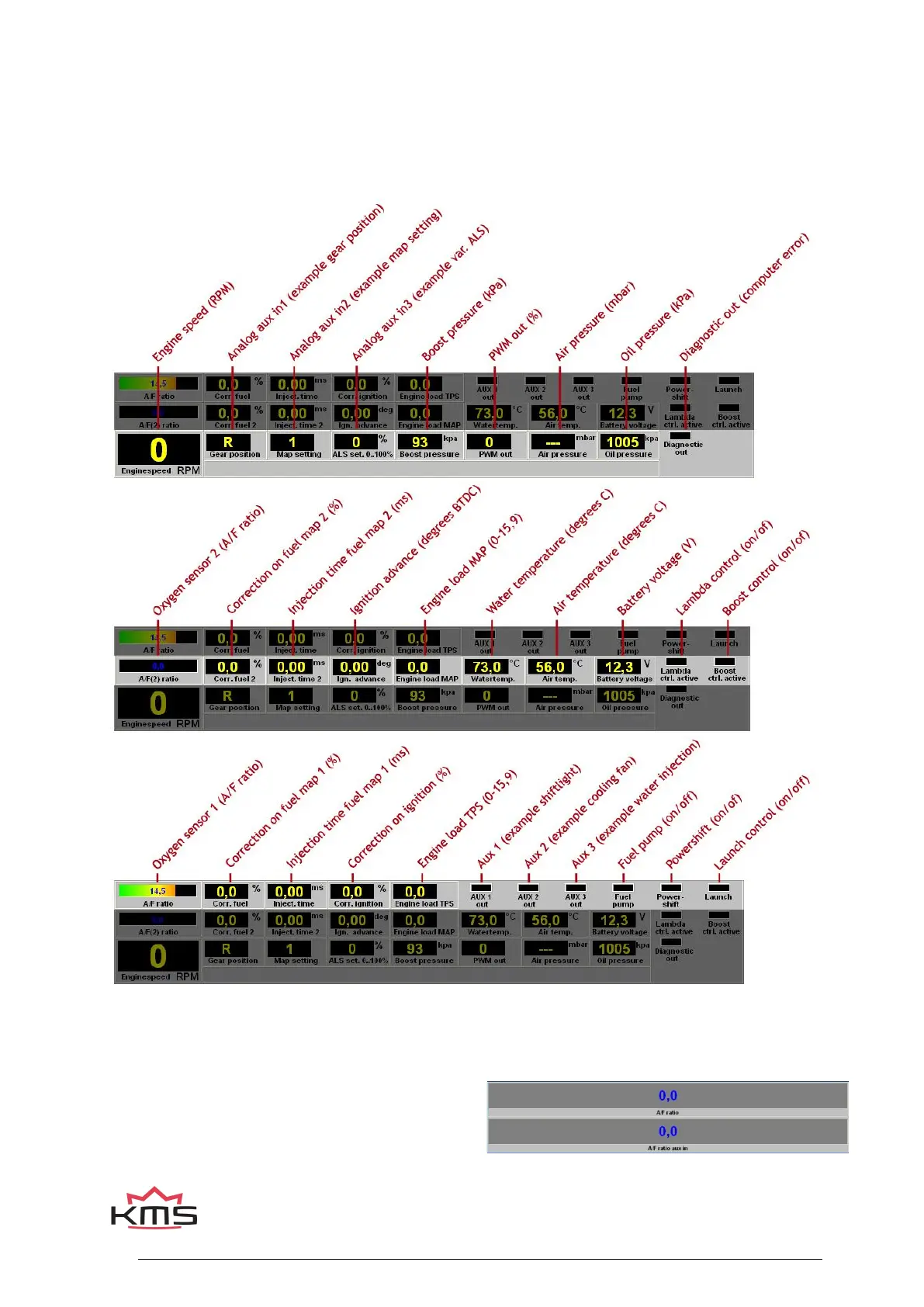

The following readings will show:
These readings can be used to check whether the right sensors are being used and all settings are
correct.
There is an option to get an enlarged picture of the
lambda sensor reading by clicking on the display
bar. An extra reading window will appear at the
top of the screen.
