Knoll Antenna Workspaces - DESKS AND TABLES; Standard Desk and Table Configurations

STEPS:
1. Attach desk cradles (A) to legs, (2) per leg, using
(2) ¼-20 x 1" machine screws (E) per cradle (A).
2. Attach (1) pair of horizontal rails to cradles
(A) by first fastening (2) cradle clamp
brackets (B) loosely to each cradle (A)
using (4) ¼-20 x
5
/
8
" machine screws (F).
NOTE: Rails are typically 3" shorter than top
width. ie: 72" wide tops use 69" wide rails.
Install (4) end caps into the ends of the rails
using the rubber mallet. Slide one end of each
rail into the cradle/clamp assemblies on one
leg, with rail paint holes facing up and toward
the center of the table desk assembly.
NOTE: If a glass top is being used,
holes are to face down and toward
center of the table desk assembly.
Position the outer edge of each cradle
(A) 4" from the end of the rail. Use gauge
to properly position rails. See Install
Gauge Guidelines. Tighten the screws
(F) in the cradle clamp brackets (B).
3. Attach other ends of the rails to the (2) cradles
(A) in the other leg assembly as noted in step 2.
4. If applicable, attach suspended storage,
returns and/or electrical components at this
time. (see suspended storage, table desk with
return and electrical installation instructions)
5. Surfaces 48" wide and greater require a spacer
(C) for additional support. When necessary,
a spacer (C) should be placed between the
top of each rail and the underside of the top,
centered on the width of the top. Spacers
(C) are attached to the top using (1) #12 X
¾" black wood screw (D) per spacer.
6. Lay top on base assembly. Use gauge to
properly position top. See Install Gauge
Guidelines. Attach top using (2) #14 x 1" FH
wood screws (G) per cradle (A) into pre-
drilled holes in the underside of the top.
7. Adjust glides as needed to level desk.
3AB4004
Desk (Inset Legs)
Pattern Numbers Represented:
Legs for Desks or Returns
(Desk or Standing Height), YEL__
Starter Rails with End Caps, YBRS_

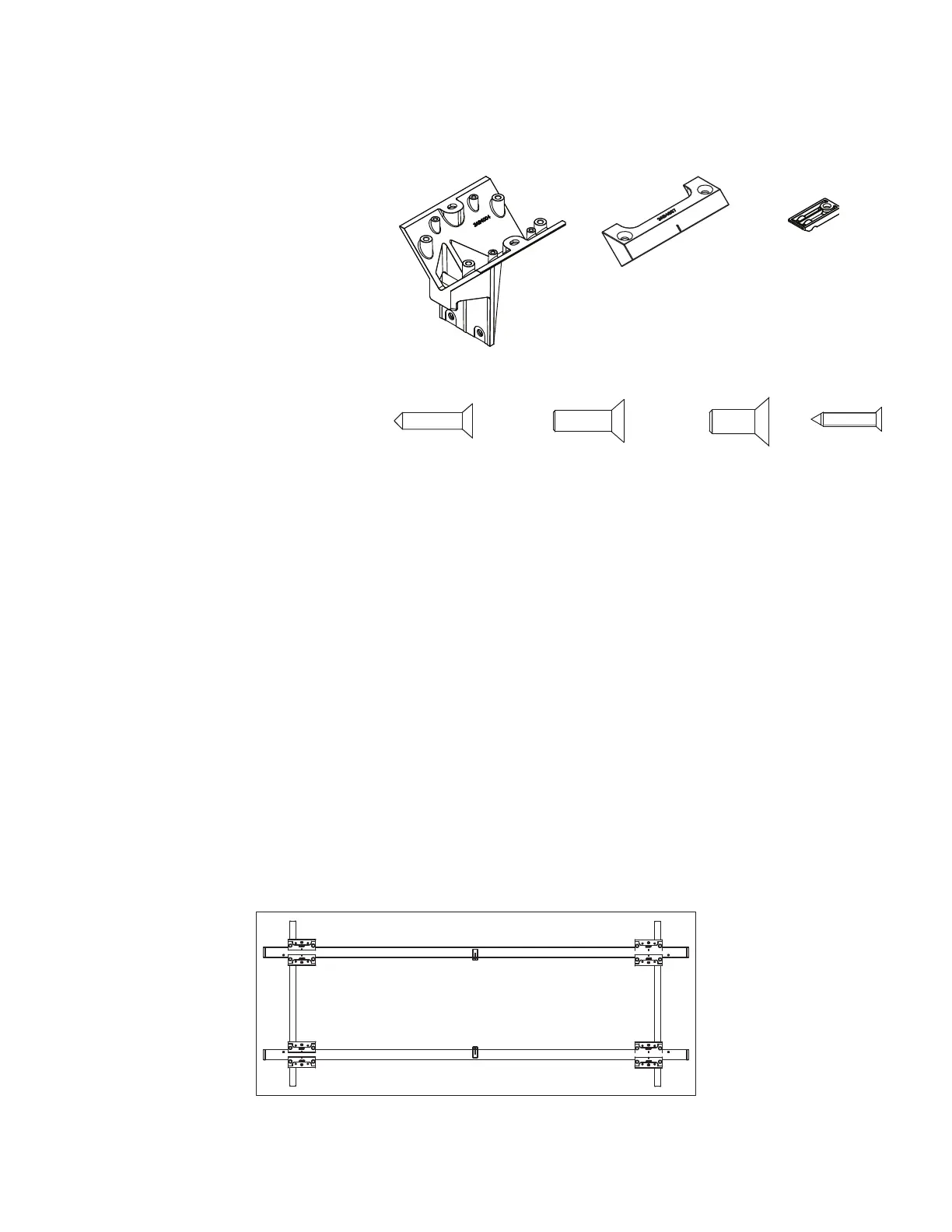

Part List:
Horizontal Rail Cradle (A)
Cradle Clamp Bracket (B)
Spacer (C)
#12 X ¾" Black Wood Screw (D)
¼-20 x 1" Machine Screw (E)
¼-20 x
5
/
8
" Machine Screw (F)
#14 x 1" FH Wood Screw (G)
Rails
Desk End Legs
Top
Tools Needed:
Drill
Install Gauge
Phillips #2 and #3 bits
Rubber mallet
7434100
Screw, SM, FLP 14 X 1 Type A CAD or Zinc
G.) 743 410 0F) 7189140D.) 7196440 E.) 7194140
3AB4012
B.) 3AB4007*A.) 3AB4004* C.) 3AB401252
3AB4040
Screw, Mach, FLP 1/4-20 X 1
Desk Assembly Plan View
Desks and Tables
