Knoll Antenna Workspaces - Desk Supported by 25 High Storage

STEPS:
1. Attach (2) horizontal rail cradles (A) to
the desk end leg using (2) ½-20 x 1"
machine screws (F) per cradle (A).
2. Attach (1) rail to each cradle (A) by loosely
fastening (2) cradle clamp brackets
(B) to each cradle using (4) ¼-20 x
5
/
8
"
machine screws (G). Install end caps in
all horizontal rails using rubber mallet.
NOTE: Rails are typically 3" shorter than the
top length. Ex: 42" wide top uses 39" wide rail.
For both rails, slide rail through cradle/clamp
assembly with rail paint holes facing up and
toward center of the desk assembly. Use
install gauge to locate the leg position on the
rail. See Install Gauge Guidelines. Tighten
the screws (G) in cradle clamp brackets (B).
3a. For metal pedestals:
Attach (2) desk to pedestal cradles (D)
to pedestal using (1) #10-32 x ¾" self
tapping screw (H) per desk to pedestal
cradle (D). For each cradle, utilize the
screw hole toward the outside the rails
and toward the inside of the storage.
3b. For wood storage or Template tops:
Attach (2) desk to pedestal cradles (D) to
wood storage or Template top using (2) ¼-14
x
7
/
8
" pan head black wood screws (J) per
desk to pedestal cradle (D). For each cradle,
utilize the two screw holes closest to the end
of the rails. Use drilling guidelines to locate
desk to pedestal cradle position. See drilling
pattern template for metal/ wood storage.
4. Join leg assembly to pedestal by laying rails
onto desk to pedestal cradles (D). Attach
(2) cradle clamp brackets loosely to desk
to pedestal cradles (D) using (4) ¼-20 x
5
/
8
"
machine screws (G) per cradle (D). Use the
installation gauge to properly position the desk
to pedestal cradle position in relation to the end
of the rails. Tighten cradle clamp brackets (B).
5. Place desk top on base assembly and attach
using (2) #14 x 1" FH wood screws (I) per
cradle/desk support adapter. Screws should
line up with the appropriate pre-drilled holes
in the underside of the desk top. Side of desk
top should align with the side of the storage.
6. Unsupported rail portions 48" wide and greater
require a spacer (C) for additional support.
When necessary, a spacer (C) should be placed
between the top of each rail and the underside
of the top, centered on the width of the top.
Spacers (C) are attached to the top using (1)
#12 X ¾" black wood screw (E) per spacer.
7. Adjust leg and pedestal glides as
needed to level assembly.
3AB4026
3AB4004
Desk Supported by 25" High Storage
Pattern Numbers Represented:
25"H Case Support Adapters, YBATE25
Legs for Desks or Returns
(Desk Height), YEL__
Starter Rails with End Caps, YBRS_

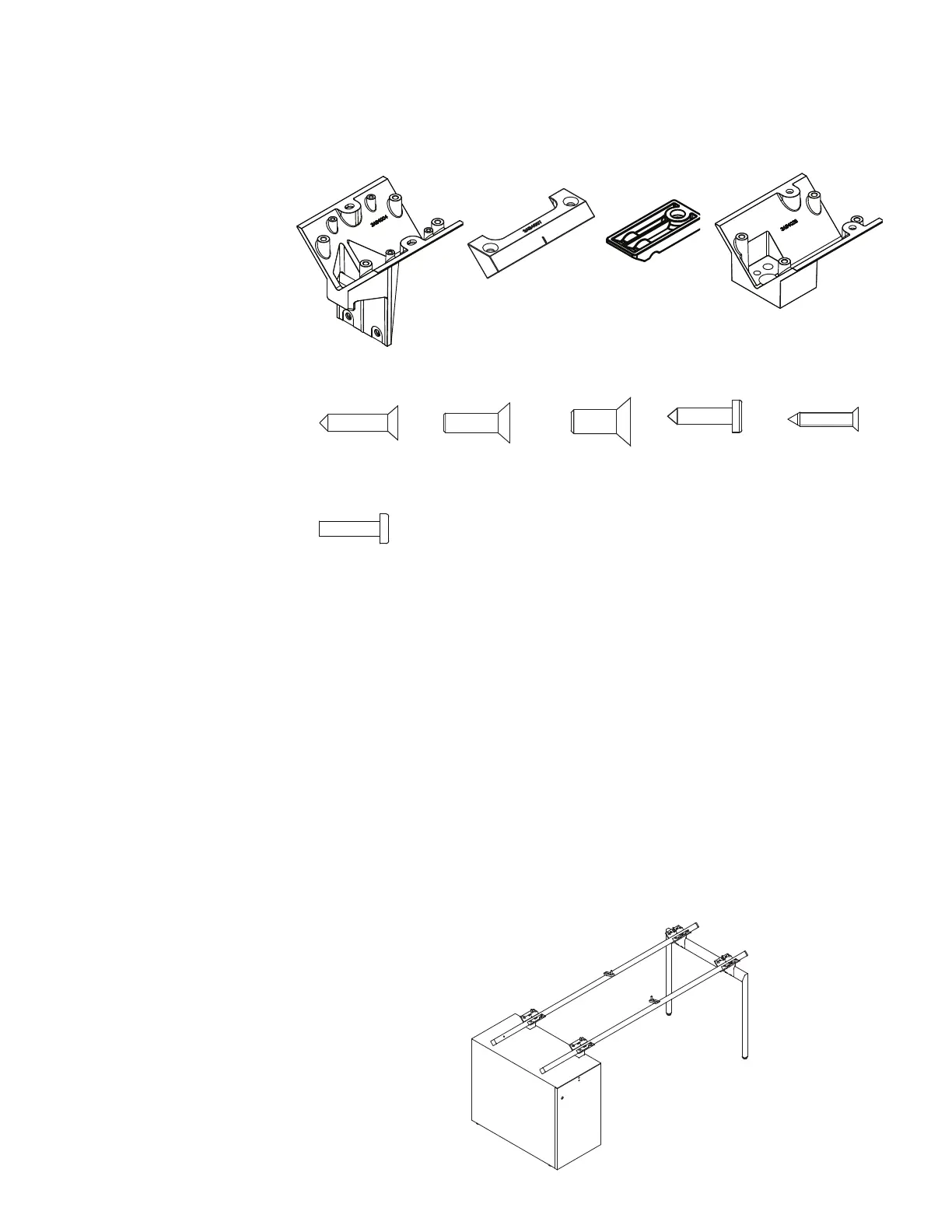

Part List:
Horizontal Rail Cradle (A)
Cradle Clamp Bracket (B)
Spacer (C)
Desk to Pedestal Cradle (D)
#12 X ¾" Black Wood Screw (E)
¼-20 x 1" Machine Screw (F)
¼-20 x
5
/
8
" Machine Screw (G)
#10-32 x ¾" Self Tapping Screw (H)
#14 x 1" FH Wood Screw (I)
¼-14 x
7
/
8
" Pan Head Black Wood Screw (J)
Rails
End Caps
Desk End Leg
Top
Tools Needed:
Drill
Install Gauge
Phillips #2 and #3 bits
Rubber mallet
7434100
Screw, SM, FLP 14 X 1 Type A CAD or Zinc
I.) 743410 0G) 7189140 H.) 6AA454996 E.) 7196440
D.) 3AB4026*
F.) 719414 0
3AB4012
B.) 3AB4007*A.) 3AB4004* C.) 3AB401252
Desk Supported by 25" High Storage
J.) 4A214020140
4A214020140
Screw, Mach, PNP 1/4-14 X .875 Type AB
